Lyngdorf TDAI-2210 – True Digital Amplifier
03.06.2025 06:46 | ~2 minutes read

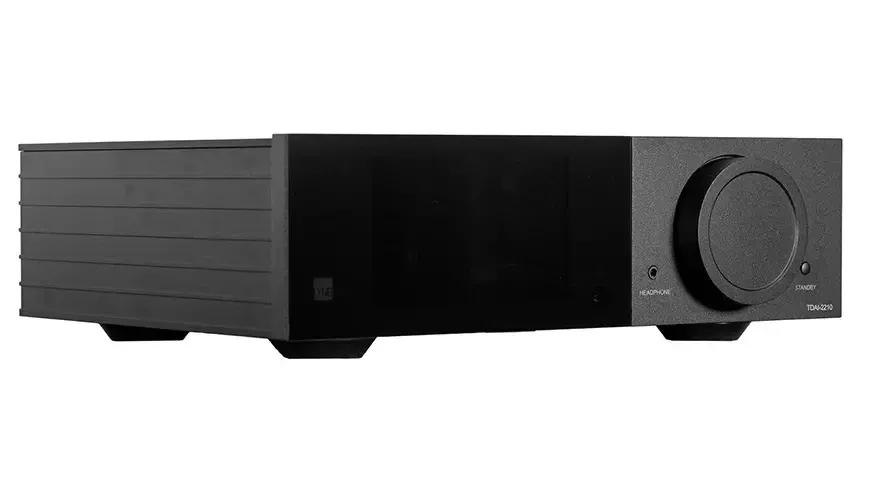

Danish company Lyngdorf has introduced the Lyngdorf TDAI-2210 integrated streaming amplifier with analog and digital inputs. The new amp replaces the well-known TDAI-2170 model and uses a modular architecture that allows for future expansion.

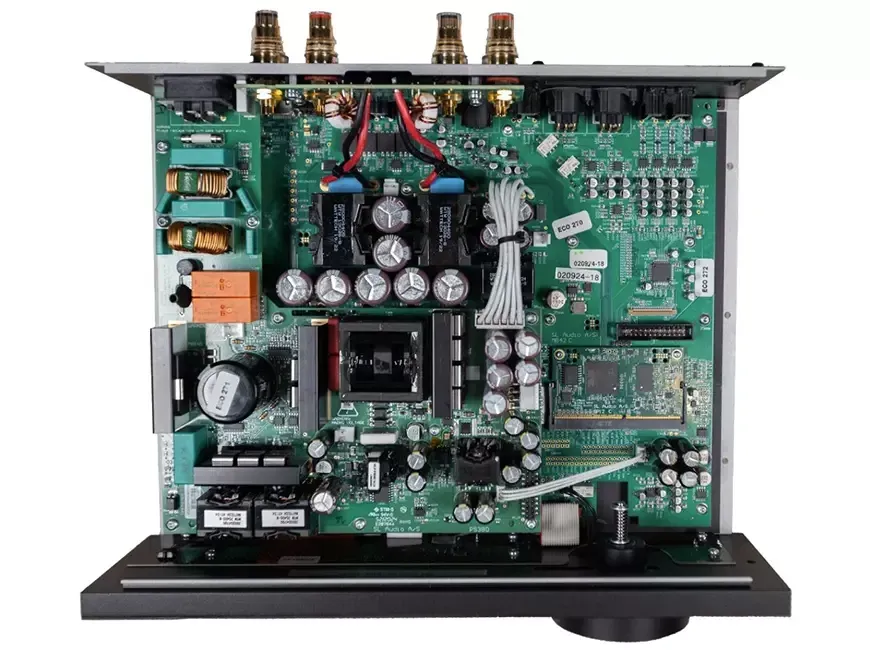

TDAI stands for True Digital Amplifier Integrated, because the entire circuitry of the Lyngdorf TDAI-2210 is completely digital, without analog conversion. The digital signal directly drives the speakers, and the volume knob adjusts the gain in the output circuit. This unique solution eliminates the need for multiple analog components and signal paths that are a source of noise and distortion. The Lyngdorf TDAI-2210 is based on a fundamentally different technology than class D, since in class D the low-frequency form of the musical signal is created from high-frequency pulses.

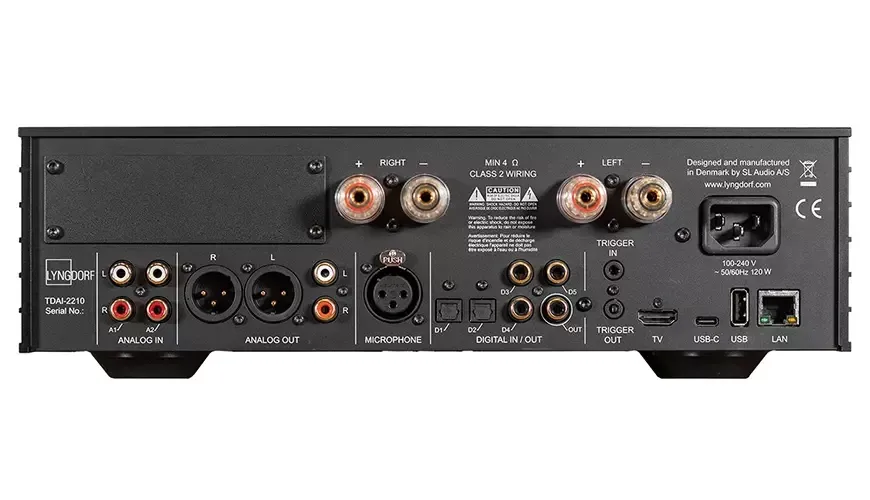

The Lyngdorf TDAI-2210 integrated amplifier has a power of 2 x 105 W per channel when operating at an 8 Ohm load and 2 x 210 W for 4 Ohms. The switching arsenal of the new product includes three optical inputs, three coaxial inputs and one USB-C port.
The Lyngdorf TDAI-2210 also has two analog inputs, and if necessary, it can be additionally equipped with an optional module with three analog RCA inputs (one of them is an input for a vinyl player with an MM cartridge) and one pair of balanced XLR inputs. In addition, there is an HDMI port. Using an additional module, you can add two more HDMI inputs and one HDMI output.
RoomPerfect is an advanced proprietary solution for adapting sound to the acoustic characteristics of a particular room. Calibration with RoomPerfect eliminates room acoustic problems such as excessive bass, standing waves or an inaccurate sound stage.
The Lyngdorf TDAI-2210 integrated amplifier will be available in September 2025 with a suggested retail price of €3,999.
Specifications
This product is in the Hi-Fi and High End Electronics and Acoustics database
Integrated amplifiers — Lyngdorf TDAI-2210
Model name
TDAI-2210
Type
Integrated Amplifier with streamer
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
2 x 105
Output power (4Ω) (W)
2 x 210
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
0.05
Damping factor
N/A
Dimensions (mm)
325 x 102 x 300
Weight (kg)
4.8
Official link
