Master Fidelity Nadac L Preamplifier - The Ultimate Preamplifier

04.06.2025 05:36 | ~1 minute read

Master Fidelity has unveiled the Master Fidelity Nadac L preamplifier, which features a dedicated volume control chip developed in collaboration with a semiconductor manufacturer using a JFET-like CMOS ASIC architecture. This analog gain control circuit delivers silent operation, less than 0.1 dB channel-to-channel imbalance, ultra-low distortion (THD+N) and a signal-to-noise ratio of 116 dB. Thanks to silicon-level design, the Master Fidelity Nadac L is claimed to achieve performance far superior to standard components.

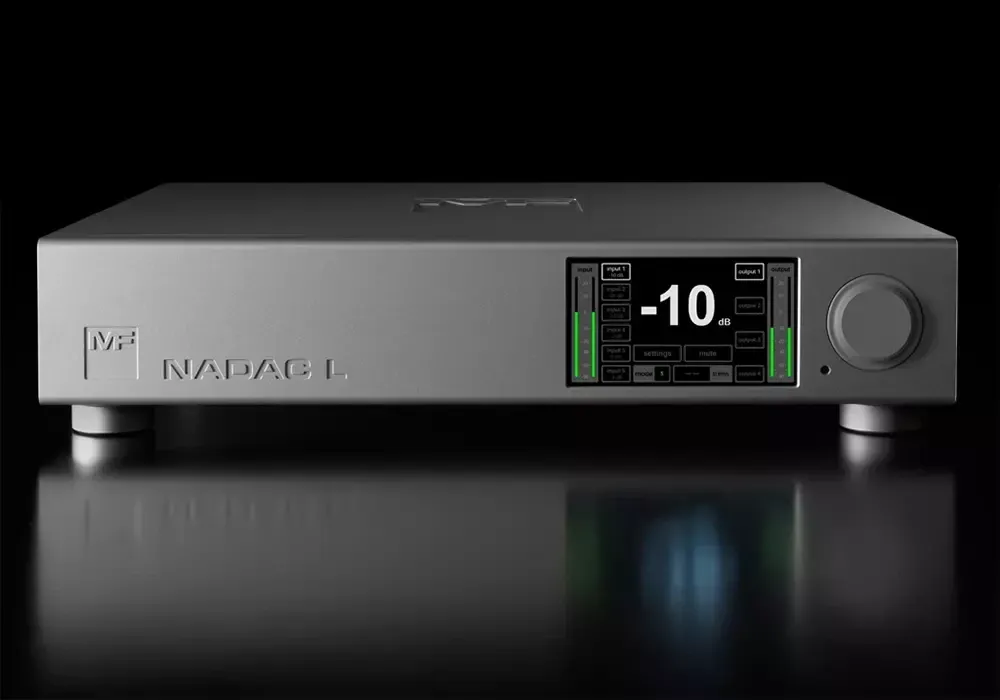

Master Fidelity Nadac L
Master Fidelity Nadac L. Image source - (c) Master Fidelity

The Master Fidelity Nadac L preamplifier is built using a dual mono design. The audio path uses ultra-precise resistors with a 2 ppm tolerance to maintain stability and ultra-low noise. The capacitors are high-quality hybrid models.

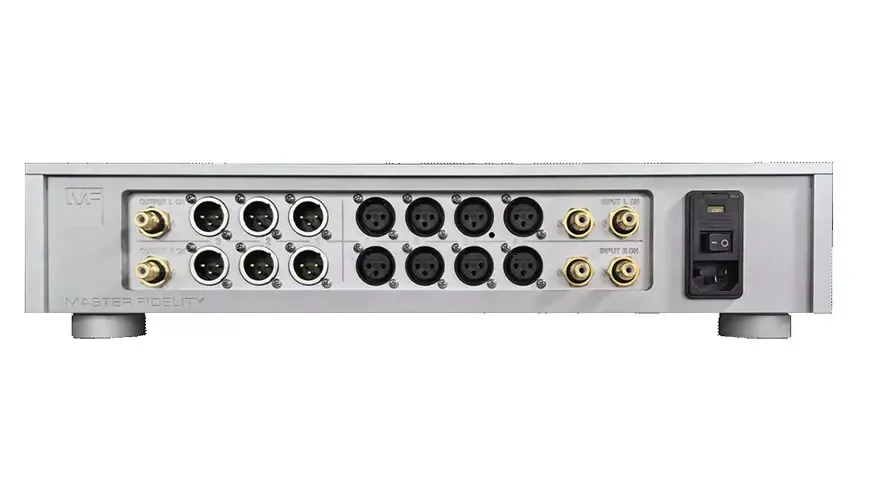

Master Fidelity Nadac L
Master Fidelity Nadac L. Image source - (c) Master Fidelity

The Master Fidelity Nadac L features a linear power supply based on a custom-designed toroidal transformer. The power supply system also features a rectifier circuit to minimize AC-to-DC conversion losses. High-quality capacitor arrays provide ample power reserves, while multi-stage linear regulators reduce noise and optimize transient response. The Master Fidelity Nadac L preamplifier will be available soon, along with a suggested retail price.

Specifications

This product is in the Hi-Fi and High End Electronics and Acoustics database

Preamplifiers — Master Fidelity Nadac L

  • Model name

    Nadac L

  • Analog inputs (balanced)

    4

  • Analog inputs (single-ended)

    2

  • Analog outputs (balanced)

    3

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    26

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    116

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.0006

  • Dimensions (mm)

    N/A

  • Weight (kg)

    N/A

  • Official link
