Quad Platina Integrated and Platina Stream – the New Series is on the Way
Quad has announced a new series of Quad Platina audio equipment. The already released Quad Platina Integrated amplifier with DAC and Quad Platina Stream streamer will soon be joined by the Quad Platina CDT CD transport.

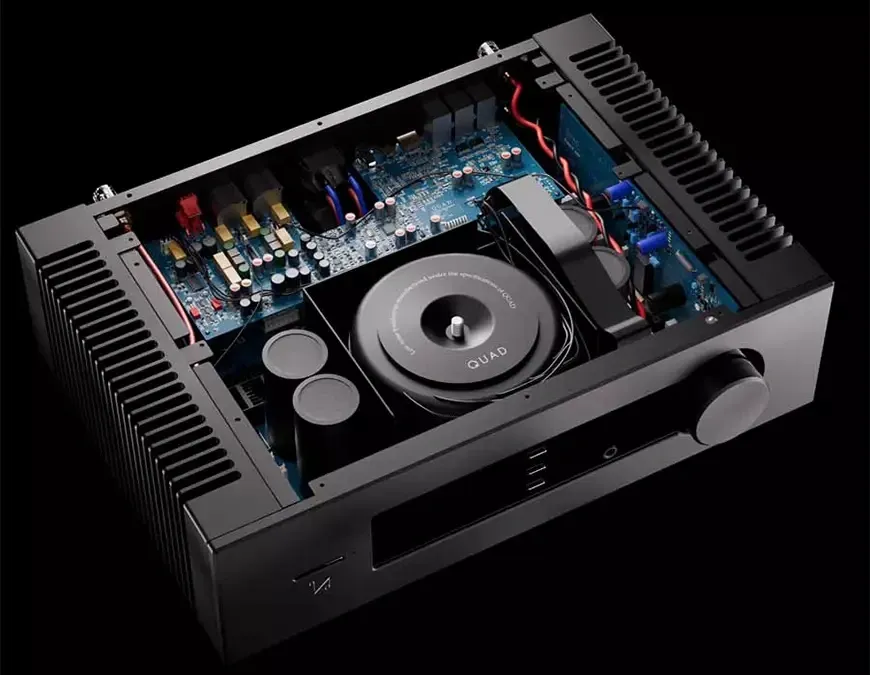

The Quad Platina Integrated amplifier utilizes a combination of a Class-AB transistor circuit and digital architecture. The amplifier itself is a dual-mono configuration and guarantees 2 x 200W of power into an 8 ohm load. The power supply features a 630 VA toroidal transformer and redundant filter capacitance (44,000 µF per channel).
The Quad Platina Integrated is equipped with a built-in digital-to-analog converter based on the ESS Sabre ES9038PRO chip, capable of processing up to 32-bit/768 kHz and DSD512. A built-in phono preamp with a JFET input stage is also included, supporting both MM and MC cartridges.

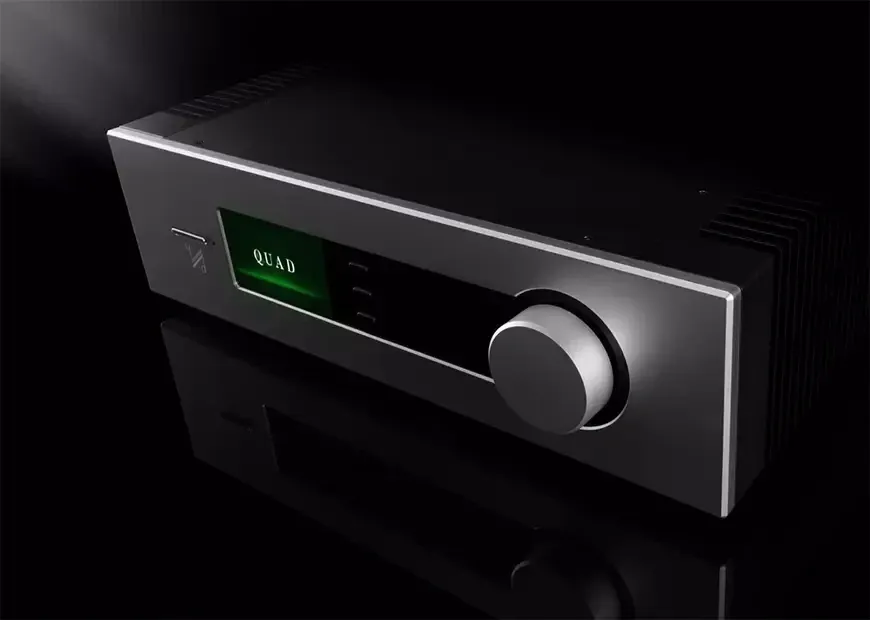

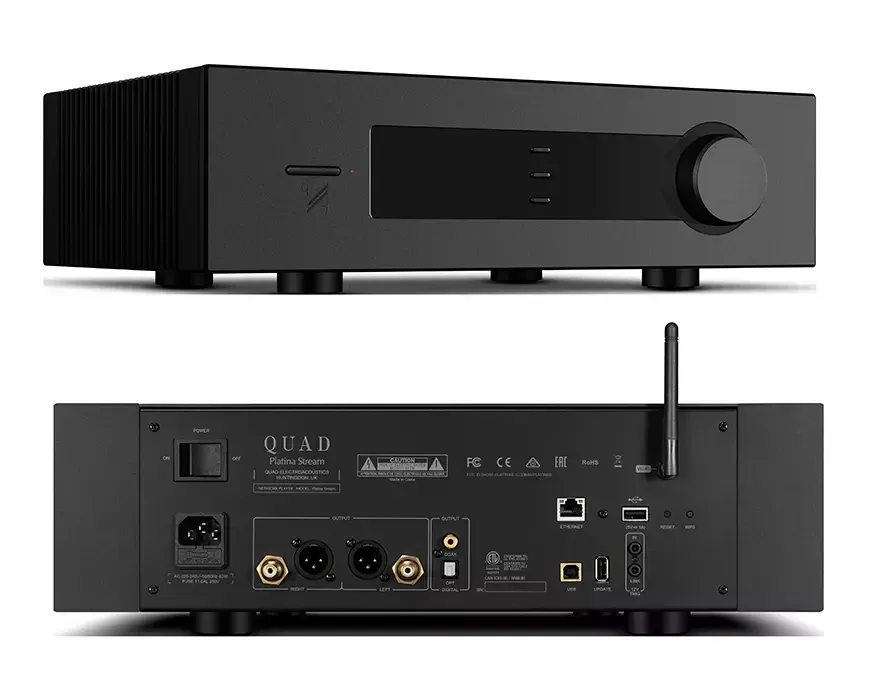

The Quad Platina Stream streamer is equipped with the same ESS Sabre ES9038PRO DAC chip and supports signals up to 32-bit/768 kHz and DSD512. Built-in streaming clients include Tidal Connect, Qobuz Connect, Spotify Connect, and Apple AirPlay 2. It is Roon-certified and features flexible digital filter settings. The Quad Platina Stream streamer connects to a computer network via a Gigabit Ethernet port or dual-band Wi-Fi.
Specifications
This product is in the Hi-Fi and High End Electronics and Acoustics database
Integrated amplifiers — QUAD Platina Integrated
Model name
Platina Integrated
Type
N/A
Analog inputs (balanced)
1
Analog inputs (single-ended)
2 + 1 (MM/MC)
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
50 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
120
Output impedance (single-ended) (Ω)
120
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
300
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>110
Total Harmonic Distortion + Noise (%)
<0.001
Damping factor
N/A
Dimensions (mm)
445 x 134.5 x 348
Weight (kg)
17.1
Official link
Specifications
This product is in the Hi-Fi and High End Electronics and Acoustics database
Streamers — QUAD Platina Stream
Model name
Platina Stream
Has internal DAC
Yes
DSD compatability
Yes
Parameters
up to 32 bit / 768 kHz and DSD512
DSP processing
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Gain (dBu)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
75
Output Impedance (single-ended) (Ω)
75
Analog outputs level (balanced) (V)
N/A
Analog outputs level (single-ended) (V)
N/A
Signal to Noise Ratio (dB)
>116
Total Harmonic Distortion + Noise (% at 22 kHz)
N/A
Dimensions (mm)
445 x 134.5 x 348
Weight (kg)
11.8
Official link
