Pier Audio MS 1000 SE – Integrated Amplifier With Tube Rectifier

02.03.2025 06:27 | ~2 minutes read

French company Pier Audio presented the integrated amplifier Pier Audio MS 1000 SE. The model uses a large-sized 800 VA power transformer wound in the old style with high quality copper and weighs 23 kg. Up to a power of 2 x 20 W per channel, Pier Audio MS 1000 SE operates in class A, then switches to class AB, developing up to 2 x 150 W at 8 Ohm load and doubling the power to 2 x 300 W at 4 Ohm speakers.

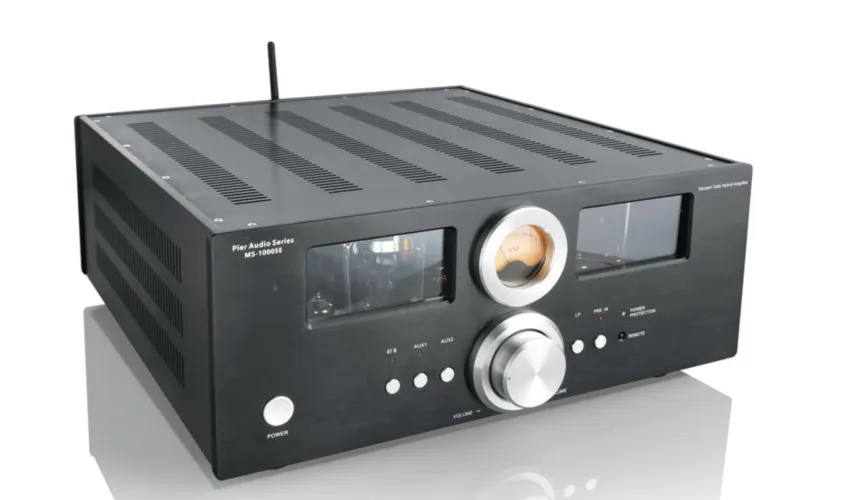

Pier Audio MS 1000 SE
Pier Audio MS 1000 SE. Image source - (c) Pier Audio

The amplifier is built on a hybrid circuit - the preliminary amplification stages are made on tubes (6SN7 x 2, 6N11 x 2, rectifier 6Z4 / 6U4 x 1), and the output ones are on transistors (Sanken x 8). The Pier Audio MS 1000 SE model differs from other hybrid amplifiers by using a tube rectifier for the input tubes based on a double diode 6Z4 or 6U4. In the center of the front panel there is a large pointer signal level indicator.

Pier Audio MS 1000 SE
Pier Audio MS 1000 SE. Image source - (c) Pier Audio

The Pier Audio MS 1000 SE commutation capabilities include two unbalanced line inputs on RCA connectors and an input of a built-in phono preamplifier for moving magnet (MM) cartridges. There are no digital inputs here, but the amplifier supports Bluetooth connection using the supplied antenna. There is also a direct pre-in power amplifier input. Volume control is carried out using a motorized potentiometer from the renowned manufacturer ALPS.

The Pier Audio MS 1000 SE hybrid integrated amplifier is available for sale at a recommended retail price of 2,990 euros.

Specifications

This product is in the Hi-Fi and High End Electronics and Acoustics database

Integrated amplifiers — Pier Audio MS 1000 SE

  • Model name

    MS 1000 SE

  • Type

    hybrid integrated amplifier with Bluetooth streamer and DAC

  • Analog inputs (balanced)

    0

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    300

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    2 x 150

  • Output power (4Ω) (W)

    2 x 300

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    50000

  • Signal to Noise Ratio (dB)

    97

  • Total Harmonic Distortion + Noise (%)

    0.8

  • Damping factor

    N/A

  • Dimensions (mm)

    420 x 455 x 178

  • Weight (kg)

    23
