Audio Analogue ABsolute PA Mono – 500 Watts and 50 kg
24.12.2025 07:05 | ~1 minute read

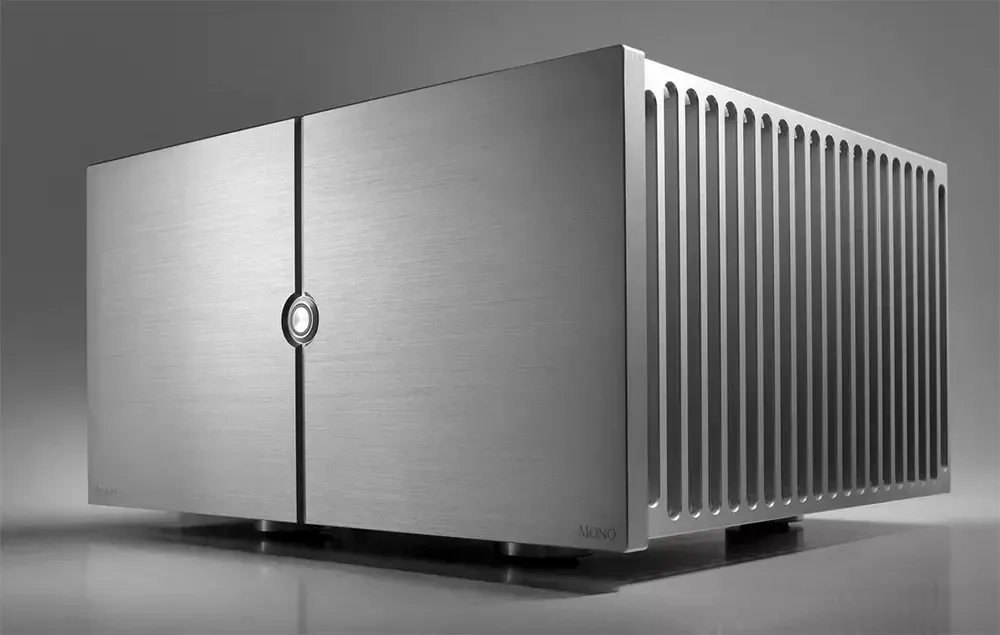

Audio Analogue has released the Audio Analogue ABsolute PA Mono, a Class AB mono power amplifier. This model offers to 500 watts when driving 8 ohm loudspeakers. Weighing in at 50 kilograms, the ABsolute PA Mono amplifier is a robust design.
The Audio Analogue ABsolute PA Mono utilizes a fully balanced discrete circuit design with no global feedback. The heart of the amplifier is a gain stage with multiple high-power output transistors. The rated output power increases from a stated 500 watts into 8 ohms to 1,400 watts into 2 ohms.
The signal-to-noise ratio is claimed to be 118 dB (at 500 watts), and the distortion factor does not exceed 0.1% from 1 to 500 watts into 8 ohms and across the entire frequency range from 20 Hz to 20 kHz. The damping factor is 45, and the frequency response extends to 200,000 Hz.

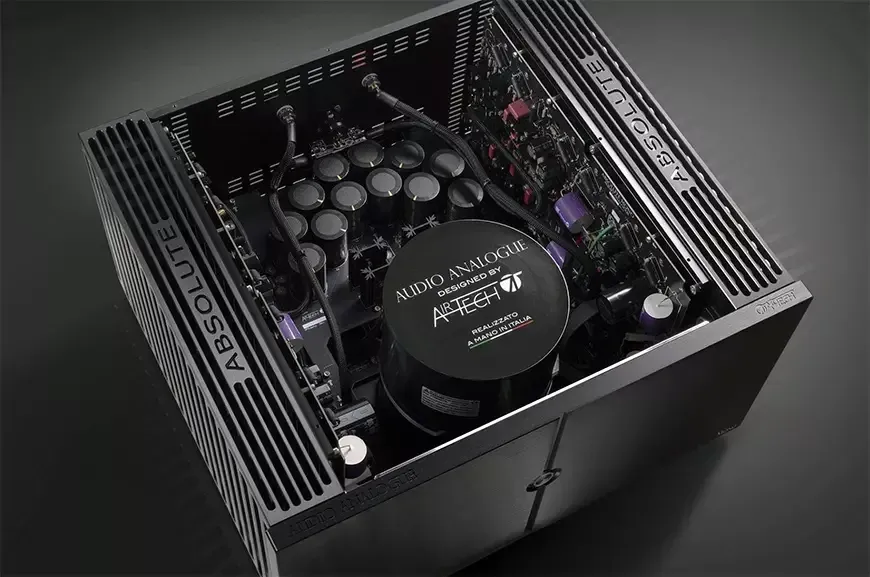

The Audio Analogue ABsolute PA Mono power amplifier is equipped with high-quality components, including oversized resistors and audiophile-grade capacitors. The commutation is, of course, balanced. The recommended retail price of the Audio Analogue ABsolute PA Mono mono power amplifier in Europe is €45,000 for a single monoblock.
Specifications
This product is in the Hi-Fi and High End Electronics and Acoustics database
Power amplifiers mono — Audio Analogue ABsolute PA Mono
Model name
ABsolute PA Mono
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
500
Output power (4Ω) (W)
800
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
118
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.1
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
48.3 x 27.0 x 44.5
Weight (kg)
Official link
