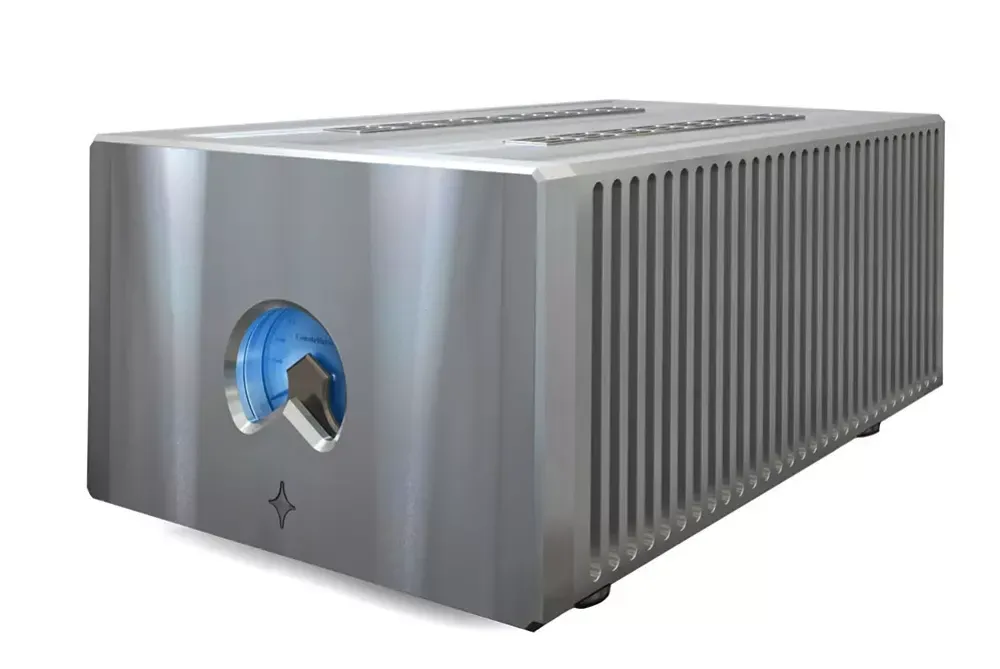

Constellation Audio Statement Mono Amplifier
Image source — © Constellation Audio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
Statement Mono Amplifier
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
360000
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
0.1
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
1700
Output power (4Ω) (W)
3200
Gain (dBu)
4.5V - 27.7, 9V - 21.7 switchable
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
100000
Signal to Noise Ratio (dB)
114
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.05
Max power consumption (W)
N/A
Damping factor
200
Dimensions (mm)
470 x 825 x 317
Weight (kg)
114
Official link
