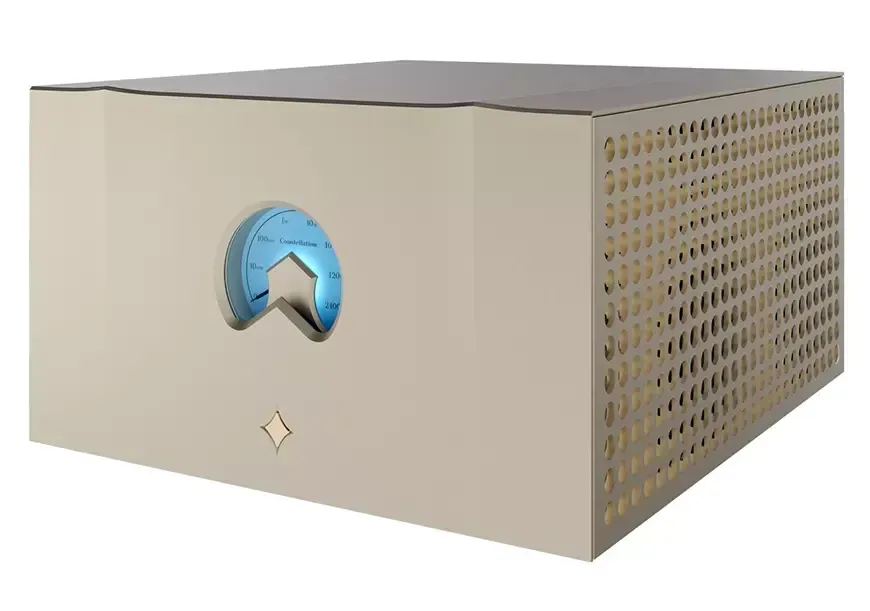

Constellation Audio Inspiration 2 Mono Amplifier
Image source — © Constellation Audio

The exclusive balanced bridge design uses only N-type output transistors, which allows the transmission of the most delicate microdynamics and details without modification.
The toroidal transformer guarantees stable DC voltage as well as high peak power for particularly demanding musical transients.

Specifications

  • Model name

    Inspiration 2 Mono Amplifier

  • Input sensitivity (mV)

    17800

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    0.1

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    500

  • Output power (4Ω) (W)

    1000

  • Gain (dBu)

    25.2

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (dB)

    125

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    80

  • Dimensions (mm)

    432 x 216 x 483

  • Weight (kg)

    19.5

  • Official link

    https://www.constellationaudio.com/inspiration-2-mono-amplifier/
