Power amplifiers mono — Constellation Audio Revelation 2 Mono Amplifier
Description, images, technical data and specifications

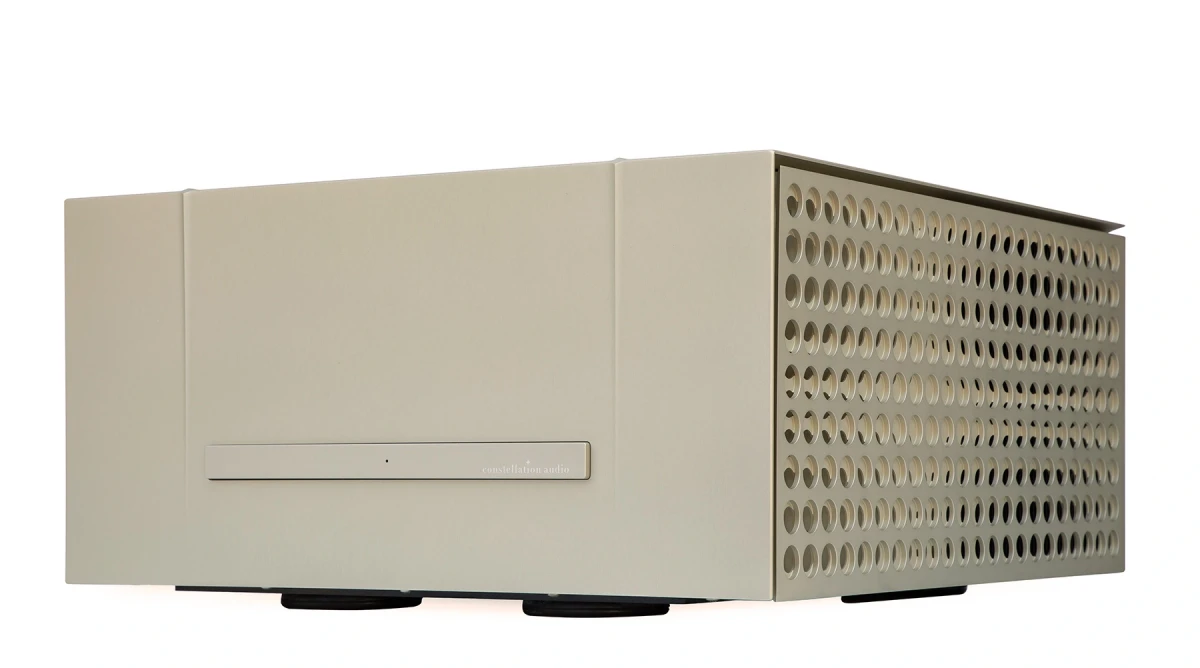

Constellation Audio Revelation 2 Mono Amplifier
Image source — © Constellation Audio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
Revelation 2 Mono Amplifier
Input sensitivity (mV)
1790 - 3700
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
0.05
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
600
Output power (4Ω) (W)
1100
Gain (dBu)
12 - 25.2
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
80000
Signal to Noise Ratio (dB)
100
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
150
Dimensions (mm)
432 x 584 x 216
Weight (kg)
25
Official link
