Power amplifiers mono — Constellation Audio Statement Mono

Description, images, technical data and specifications

Constellation Audio Statement Mono
Image source — © Constellation Audio

The Constellation Audio Statement Mono power amplifier complements the previously released Statement Stereo and is based on a new power architecture, which Constellation calls a unique combination of musical and technological excellence. Unlike traditional linear power supplies with transformers, the new switching system Constellation Switched-Mode Power Supply (C-SMPS) with advanced power factor correction PFC is used here.

Specifications

  • Model name

    Statement Mono

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    360 000

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    1700

  • Output power (4Ω) (W)

    3200

  • Gain (dBu)

    27.7

  • Frequency response low +/- 3dB (Hz)

    0.5

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    >114

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.05

  • Max power consumption (W)

    N/A

  • Damping factor

    >200

  • Dimensions (mm)

    470 x 825 x 317

  • Weight (kg)

    11.4

  • Official link

    https://www.constellationaudio.com/statement-mono-amplifier/

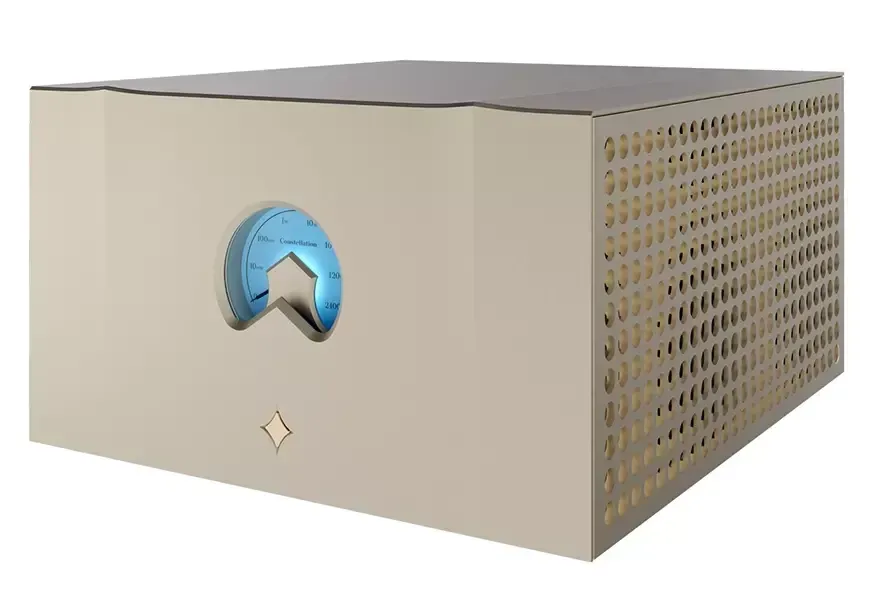

Constellation Audio Performance 2 Monoblock
