Wilson Benesch TESSELLATE Ti – world’s first MC cartridge with diamond-carbon cantilever
23.10.2022 12:20 | ~1 minute read
Wilson Benesch company considers that the cantilever to be the most critical part of a vinyl cartridge - that's why the company's new model, the TESSELLATE Ti, sports an innovative «needle holder» system. The cantilever in this model is made of state-of-the-art materials and is designed using a hybrid diamond and carbon scheme.
The Wilson Benesch TESSELLATE Ti cartridge is the first in the world to use a diamond cantilever with a uni-directional (UD) carbon fibre sleeve. This design virtually does not add mass, but dramatically increases damping - as a result, tracking ability improves and resonance decreases. And of course, the sound quality is improving too.

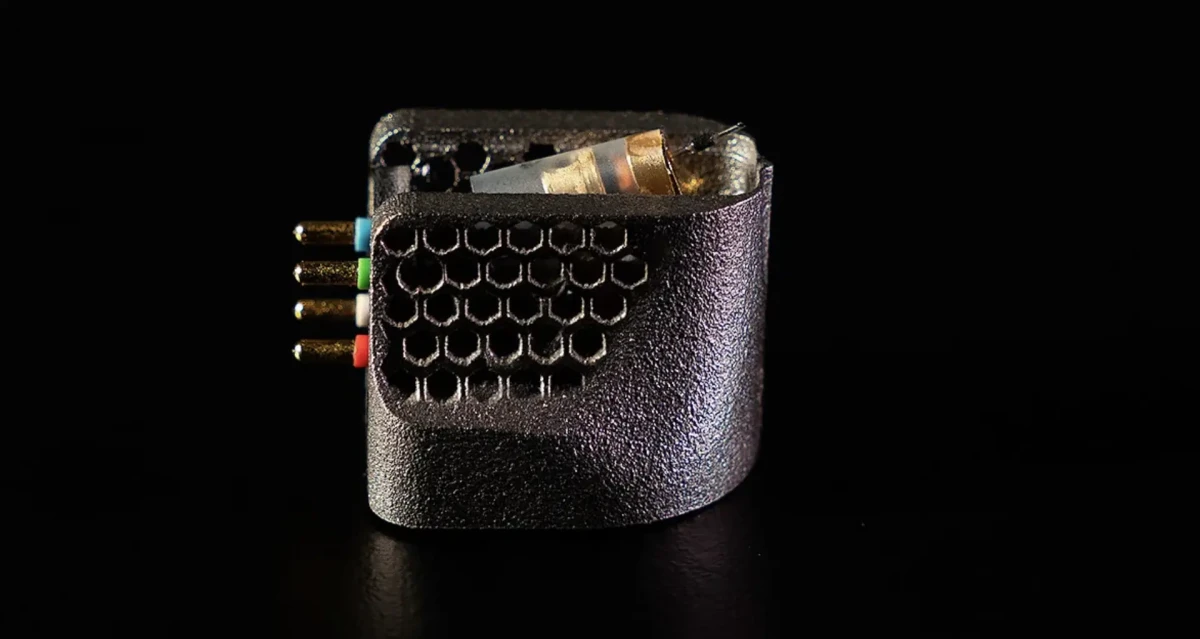

The Wilson Benesch TESSELLATE Ti body is made of titanium using selective laser sintering (SLS) manufacturing technology and uses a semi-open architecture. The manufacturer claims that the cartridge is ideal for use with the proprietary tonearm (GRAVITON Ti).
Specifications
This product is in the Hi-Fi and High End Electronics and Acoustics database
Cartidges — Wilson Benesch TESSELLATE Ti
Model name
TESSELLATE Ti
Type
MC
Stylus
diamond micro ridge (radius 3x80uM)
Body
titanium
Cantilever
hybrid diamond with a U.D. carbon fibre damping
Coils
pure Iron square
Output voltage (mV@5cm/sec)
0.35
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
32000
Internal impedance (Ohm)
N/A
Channel separation (dB / 1,000 Hz)
35
Compliance (×10-6cm/dyne at 100Hz)
15
Recommended load (Ohm)
100-330
Recommended tonearms
Medium
Weight (g)
N/A
Official link
Images from - https://wilson-benesch.com/
