Electric Audio TAE 150 and PAE 150 and PAE 150 – New Amplifiers on the March

15.06.2025 05:41 | ~1 minute read

The new German brand, Electric Audio (a subsidiary of the well-known company in Gauder Akustik), presented the Electric Audio TAE 150 integrated amplifier and the Electric Audio PAE 150 stereo power amplifier.

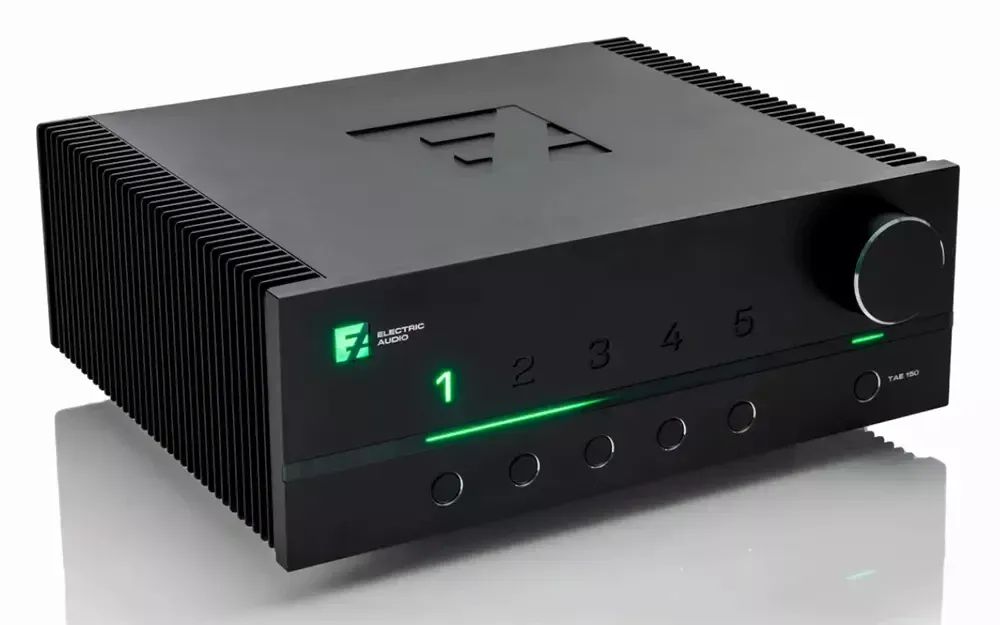

Electric Audio TAE 150
Electric Audio TAE 150. Image source - (c) Electric Audio

The Electric Audio TAE 150 is an integrated stereo transistor amplifier with an innovative amplification circuit that does not require the use of a preamplifier and provides the shortest signal path.

The output power of the device is 2 x 130 watts per channel when working on a load of 8 ohms, 2 x 215 watts at 4 ohms and an impressive 2 x 365 watts at 2 ohms.

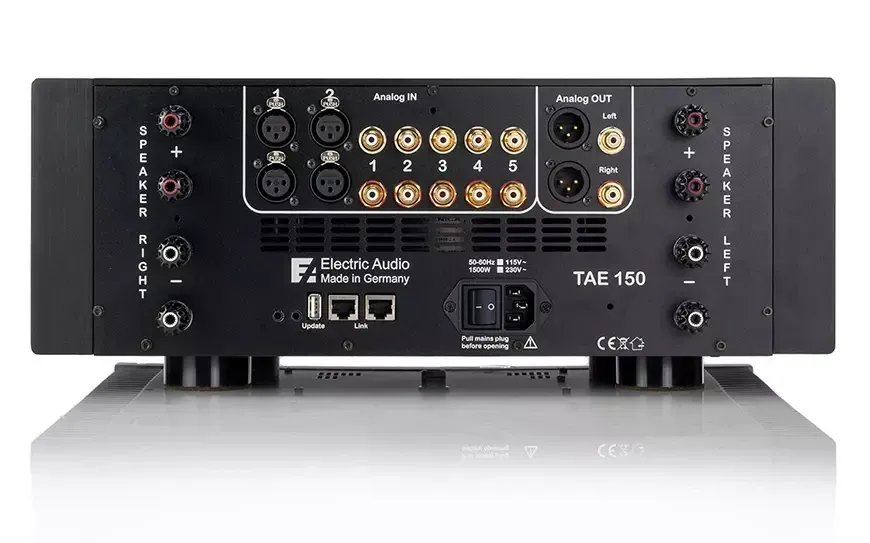

Electric Audio TAE 150
Electric Audio TAE 150. Image source - (c) Electric Audio

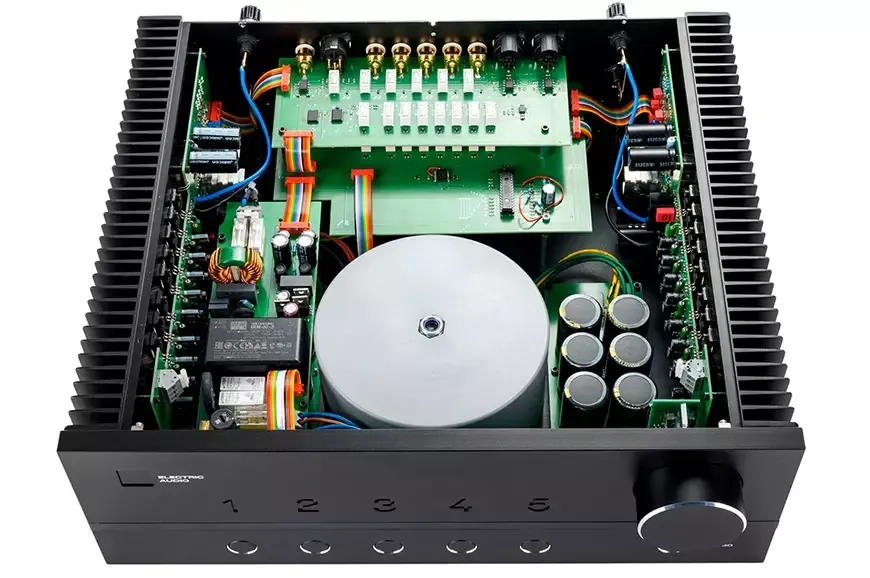

The amplifier's power supply is based on a large toroidal transformer with a capacity of 1,000 VA and a capacitor bank with a total capacity of 80,000 μF, which, according to the manufacturer, allows for a peak current of up to 70 amperes.



Electric Audio TAE 150
Electric Audio TAE 150. Image source - (c) Electric Audio

Electric Audio PAE 150 uses similar lighting technology, but since we have a two-channel power amplifier, the signal path has become even shorter.

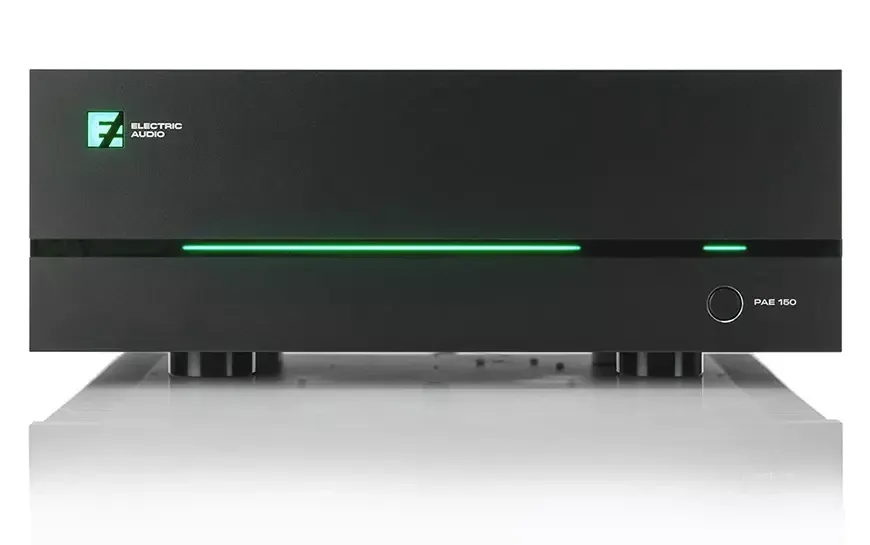

Electric Audio PAE 150
Electric Audio PAE 150. Image source - (c) Electric Audio

The cherry on the cake is the ability to work together with Electric Audio TAE 150 to implement a Bi-amping configuration (the volume can be adjusted separately through the integrated amplifier).

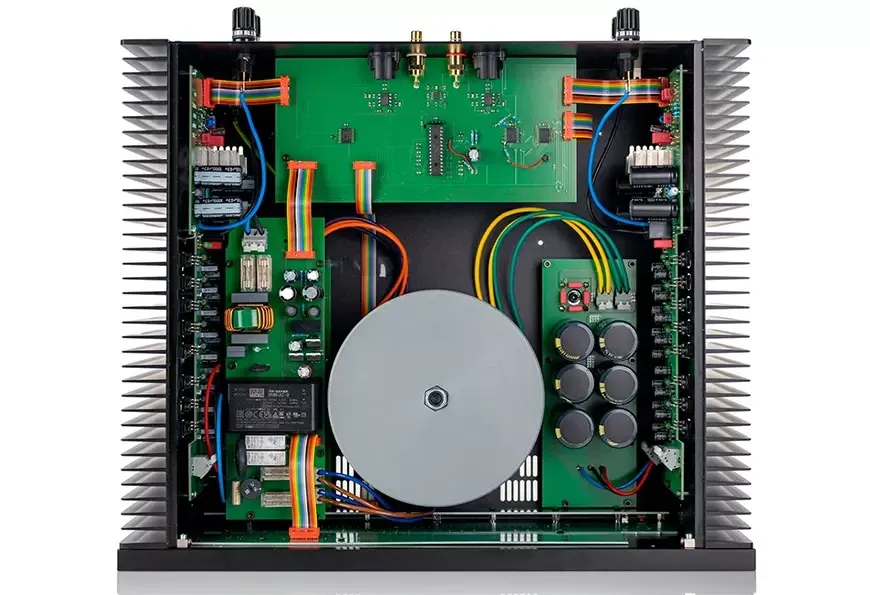

Electric Audio PAE 150
Electric Audio PAE 150. Image source - (c) Electric Audio

Recommended retail prices and the timing of the new products' appearance on sale will be announced later.

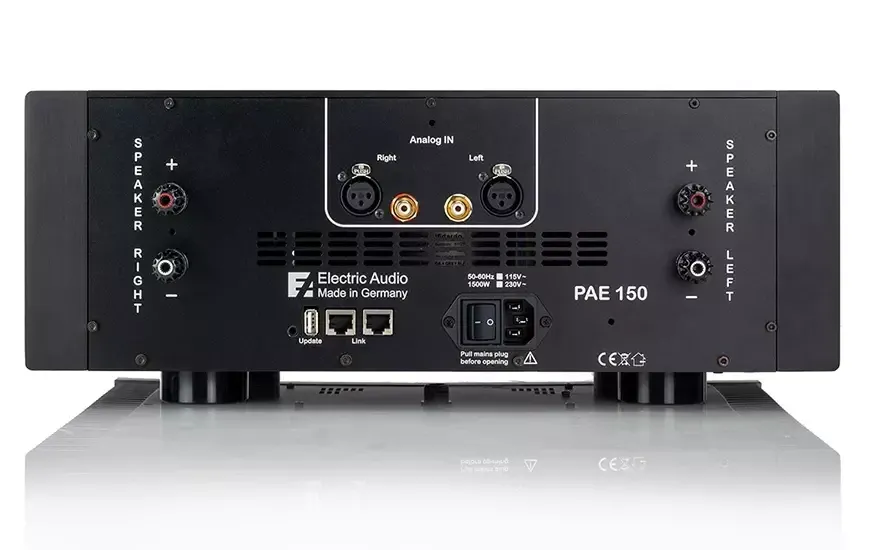

Electric Audio PAE 150
Electric Audio PAE 150. Image source - (c) Electric Audio

Specifications

This product is in the Hi-Fi and High End Electronics and Acoustics database

Integrated amplifiers — Electric Audio TAE 150

  • Model name

    TAE 150

  • Type

    Integrated Amplifier

  • Analog inputs (balanced)

    1 or 2

  • Analog inputs (single-ended)

    3, 4 or 5

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    132

  • Output power (4Ω) (W)

    218

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    435 x 195 x 390

  • Weight (kg)

    22

  • Official link

Specifications

This product is in the Hi-Fi and High End Electronics and Acoustics database

Power amplifiers stereo — Electric Audio PAE 150

  • Model name

    PAE 150

  • Input sensitivity (mV)

    1

  • Input impedance (balanced) (Ω)

    1

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    132

  • Output power (4Ω) (W)

    218

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    435 х 195 х 390

  • Weight (kg)

    22

  • Official link
