Preamplifiers — Luxman C-900u
Description, images, technical data and specifications
Luxman C-900u
Image source — © Luxman
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
C-900u
Analog inputs (balanced)
3
Analog inputs (single-ended)
3
Analog outputs (balanced)
2
Analog outputs (single-ended)
2
Gain (dBu)
N/A
Input sensitivity (mV)
180
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
86 000
Input impedance (single-ended) (Ω)
43 000
Output impedance (balanced) (Ω)
180
Output impedance (single-ended) (Ω)
90
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
120 000
Signal to Noise Ratio (SNR, unweighted) (dB)
126 (XLR) + 123 (RCA)
Total Harmonic Distortion + Noise (THD+N) (%)
0.005 (XLR) + 0.009 (RCA)
Dimensions (mm)
440 x 130 x 430
Weight (kg)
19.7
Official link
More components
Preamplifiers

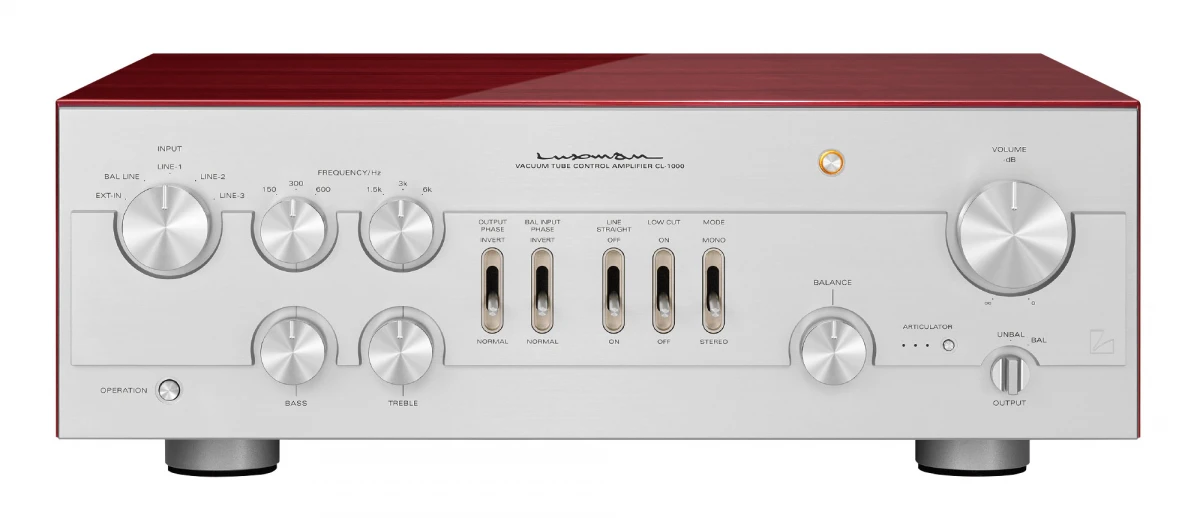

Luxman CL-1000
Externally, the Luxman CL-1000 is similar to the classic Luxman C-1000 model - but, according to the company, the device has radically changed its circuitry. The core of the Luxman CL-1000 is the LEKUTA transformer unit (Luxman Electrically Controlled Ultimate Transformer Attenuator), which uses 34 positions.
Preamplifiers

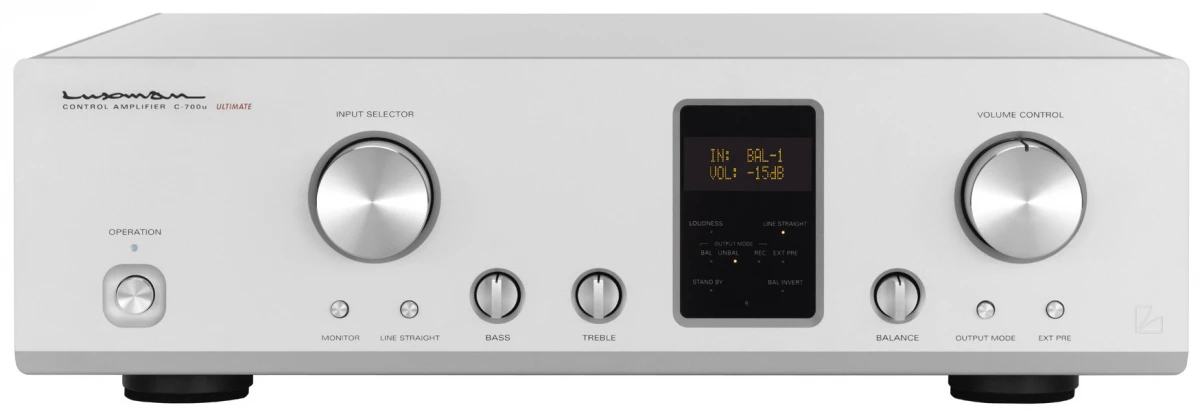

Luxman C-700u
The Luxman C-700u preamp inherits the versatility and high sound quality of the C-600F, but has a higher gain: 12 dB versus 10.5 dB for the C-600F. Externally, the C-700u is similar to its fully balanced older brother, the C-900u, but does not have a symmetrical circuit topology, despite the presence of XLR connectors.
Preamplifiers
Luxman C-10X
The Luxman C-10X preamp is designed in a fully balanced concept, from balanced input to balanced output. The component is equipped with a turn-off tone block with high and low frequency adjustments, as well as a channel balance control.
Preamplifiers

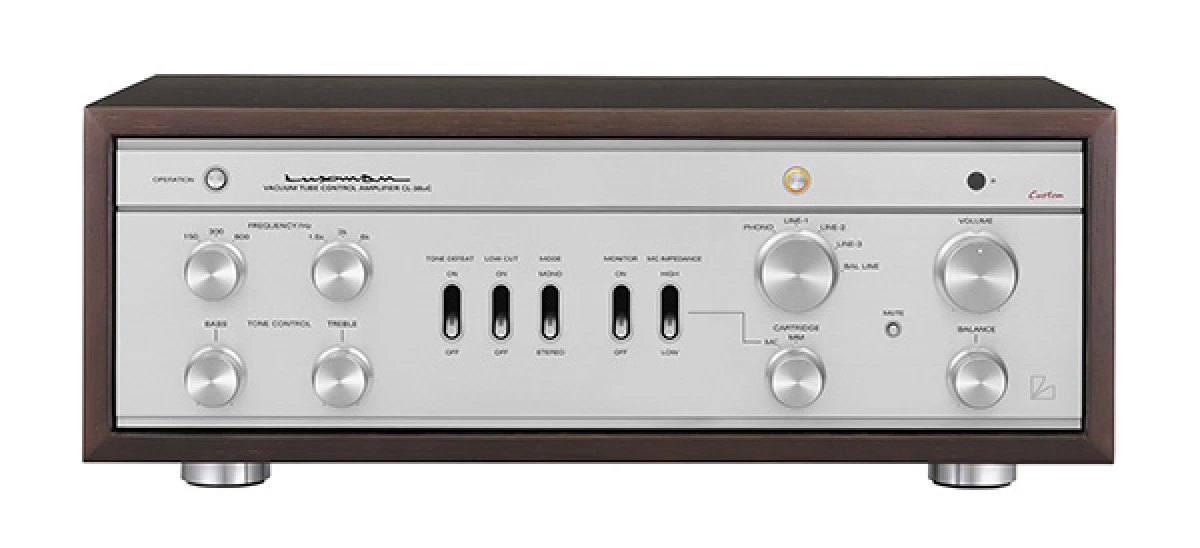

Luxman CL-38uC
