SOtM

SOtM company has introduced the SOtM sMS-2000 - the flagship network transport, equipped with audio server functionality. The new device is offered in various configurations, differing in the amount of internal storage.

The amplifier has a fully balanced circuit and is capable of delivering up to 200 watts per channel at a resistance load of 4 ohms. At the same time, as the manufacturer notes, the device sounds and behaves exactly the same as if it worked in the classic analog class AB.

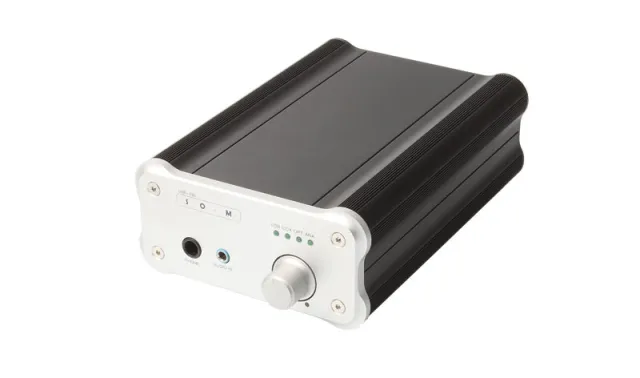

The SotM sHP-100 uses the AK4113Dir chip from the Japanese company Asahi Kasei Microdevices. When working with a computer via the USB interface, the SotM sHP-100 is capable of receiving not only a digital PCM stream with parameters up to 24 bits / 192 kHz, but also the high-resolution DSD format popular with fans of network streaming, in which SACD discs are recorded.

The model is equipped with fully isolated outputs with a resistance of 50 ohms (switching to 75 ohms is possible) on four BNC connectors and has the highest temperature stability ±2E-9. The output signal level is 13 dBm (2.825Vp-p at 50 ohms) with an error of ±2dBm.

The sMS-200ultra is an upgraded network player equipped with a special media player board and a high-performance sCLK-EX sound clock board and a master clock slot built on the basis of many years of SotM experience. It has an isolated 50 ohm 1 x BNC clock input for connecting an external 10 MHz master oscillator (master clock)

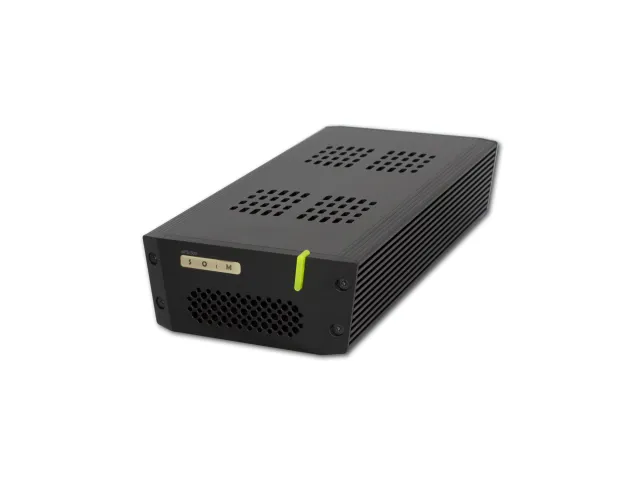

The SotM tX-USBultra USB regenerator has a USB type B input and two USB type A outputs. The device is connected between a digital source (computer or music server) and a digital-to-analog converter or USB-S/PDIF converter. The task of the tX-USBultra is to transfer a "purified" digital signal from the source to the DAC in order to allow the latter to perform conversion at a higher quality level. For this purpose, appropriate technical solutions have been implemented based on SotM's many years of experience in producing various devices to improve the operation of the digital audio track.

sPS-500 — 50- watt screwless power supply with selectable output voltage: 7, 9, 12 or 19 V. This is a better replacement for compact power supplies connected directly to an outlet for a number of components.

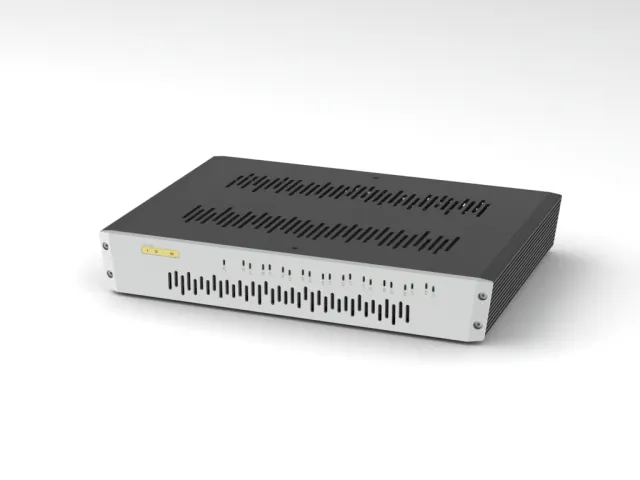

LAN switch, number of ports: 8 x RJ-45, 2 x SFP, data transfer rate: 10/100/1000 Ethernet, designed specifically for high end network audio, Ethernet stream filtering, status indicators, supply voltage: 6 - 12 V, inputs: 1 x RJ45, outputs: 8 x RJ45, 2 x SFP

The model is designed for use with pickup heads with a movable magnet (MM) and a movable coil (MS). The nominal input sensitivity for MM is 3 mV, for MS – 0.1 mV.

The model is designed for use with pickup heads with a movable magnet (MM) and a movable coil (MS). The nominal input sensitivity for MM is 3 mV, for MS – 0.1 mV.

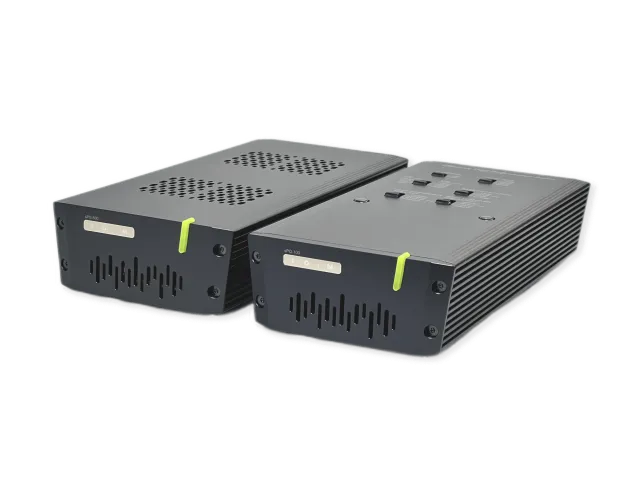

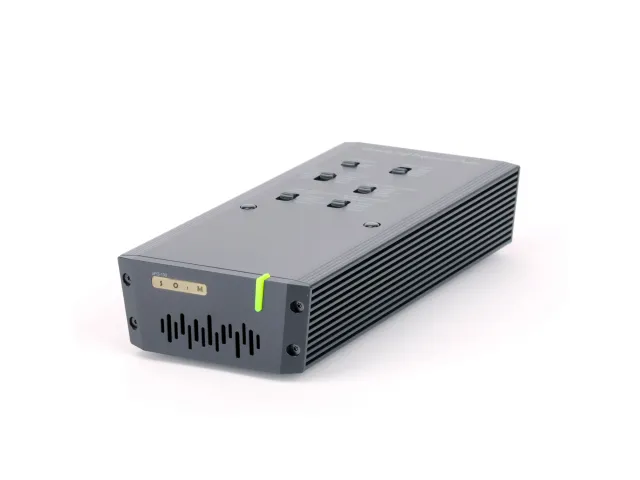

SotM sPQ-100PS is an advanced phono corrector for vinyl players, which supports many types of equalizer curves (RIAA, AES, NAB, TELDEC, etc.) thanks to convenient switches on the case. It is compatible with MM and MC cartridges, making it a versatile choice for vinyl enthusiasts.

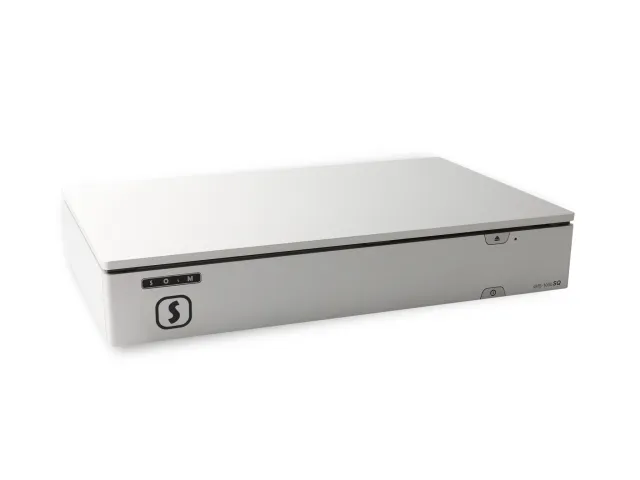

The SotM sMS-1000SQ server allows you to achieve excellent sound regardless of whether you are listening to music from your hard drive or Internet radio.

SotM sMS-1000SQ Windows Edition is a Windows—based audiophile music server (Windows 10 Pro or Windows Server 2012 R2), specially optimized for maximum sound quality using AudiophileOptimizer. It supports popular audio players and streaming services, including Roon, Foobar2000, JRiver, Tidal, and Qobuz, and can also work as a multiroom system.

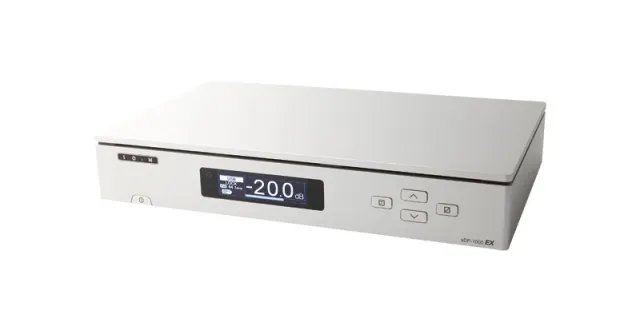

The SotM sDP-1000EX is a high-end DAC and preamp with support for PCM up to 32 bit/384 kHz and DSD up to DSD128, as well as asynchronous USB input for maximum digital audio quality.

The SotM sDP-1000EX is a high-end DAC and preamp with support for PCM up to 32 bit/384 kHz and DSD up to DSD128, as well as asynchronous USB input for maximum digital audio quality.

High-level DC output Voltage to choose from: 18 V, 19 V, 20 V, 21 V Maximum current: 4 A Medium-level DC output Voltage to choose from: 9 V, 10 V, 11 V, 12V Maximum current: 2 A Low-level DC output Voltage to choose from: 5 V, 5.5 V, 6V, 7V Maximum current: 1 A Short circuit protection Against overheating

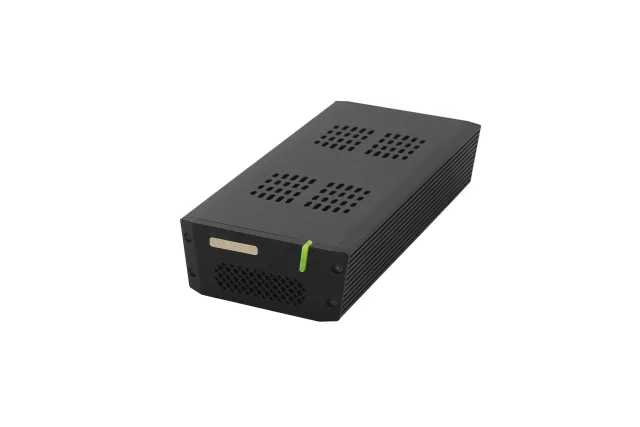

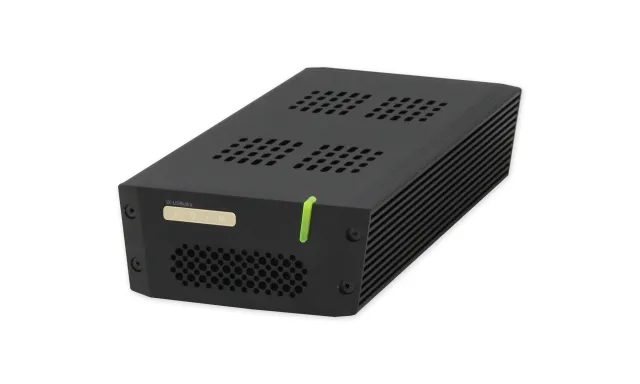

The SotM sMS-200 Neo is a highly specialized device, and additional equipment will be required to create a full streamer based on it. However, the result will be something that fully justifies the cost. The sMS-200 Neo is a single unit that receives an Ethernet signal from a router or NAS, organizes and synchronizes it for subsequent transmission to an adaptive USB output.
