Matrix Audio

A distinctive feature of the senior model Matrix Audio NT-1 is the presence of a network optical SFP port. Such a fiber-optic network connection provides additional quality, since the audio device can be completely electrically isolated from the rest of the computer network. Matrix Audio NT-1 is also equipped with a connector for connecting an external 10 MHz clock generator.

The Matrix Audio TT-1 network streamer is equipped with an NVMe slot, where you can insert an SSD drive to store your music library. In addition to digital outputs, the model is equipped with an Ethernet RJ45 port and two USB ports for connecting external drives. Traditionally for the brand's products, TT-1 allows the use of an external DC power supply of higher quality.

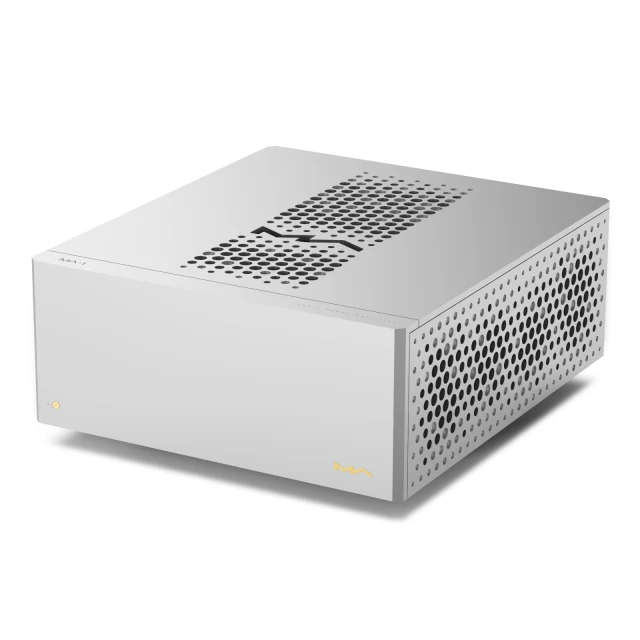

The output stages of the Matrix Audio MA-1 power amplifier are made on discrete elements and operate in class A/B. To reduce the output impedance, ten high-power ONSEMI transistors operate in parallel in each channel to create a push-pull amplification circuit operating in a state of high bias current.

With a resistance load of 8 ohms, the output power is 110 watts in stereo mode and up to 500 watts in bridge mode. The amplifier body is made of thick aluminum panels, and special supports with ceramic balls are responsible for vibration suppression.

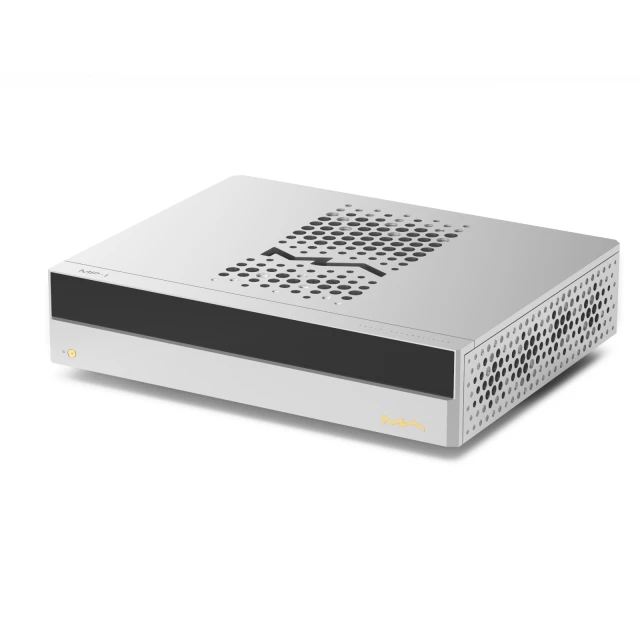

The MP-1 is equipped with three pairs of RCA and three pairs of XLR inputs with the ability to independently adjust the level for each of them. This allows you to maintain the amplitude of all input signals at the same level, preventing volume fluctuations when switching from one source to another.

The central processor is a quad–core Cortex-A9. There is a 3.46-inch touchscreen LCD display on the front panel of the device. The streamer can receive a signal both over a wired LAN network and via a dual-band Wi-Fi adapter, and the AirPlay2, Tidal Connect, and Spotify Connect platforms are supported.

The device can also function as a high-level transport capable of reproducing audio signals in high resolution via the IIS-LVDS port. This includes the signals coming to the analog input and the input of the phono corrector. This allows you to connect an external DAC. Maximum sampling rate: PCM 768 kHz / DSD512.

The DAC unit in the model is built on two top-end ES9039PRO chips from ESS Sabre, each of which is responsible for its own channel. The preamp provides a signal gain of +10 dB, and two analog outputs are provided for connection to a power amplifier or active speaker systems – unbalanced on RCA and balanced on XLR.

X-SABRE 3 is the first in the Matrix line to include Tidal Connect and Spotify Connect. Identify the X-SABRE 3 as a playback device with your chosen streaming service and enjoy high-quality content. Playback and volume can be controlled through applications. The Airplay feature is also supported.

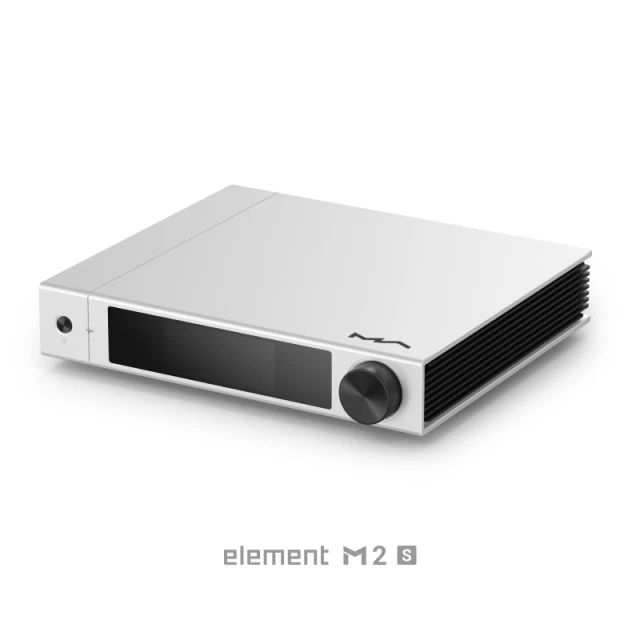

The Matrix Element M2S is a network player, a DAC, and a headphone amplifier in one package. The built-in player is implemented on a quad-core ARM processor.

The Matrix Mini-i 4 is a device with excellent functionality and excellent sound! Supports MQA format, wireless data transmission via Wi-Fi, 24-bit LCD display. The Matrix Mini-i 4 uses a modern ES9039Q2M DAC chip.

Matrix Audio Element X2 is a music streamer of the Element series, introducing a new design concept of Matrix Audio. The Element X2 acts as a fully functional standalone source device for your audio system, as well as bringing your existing traditional dual-channel system into the world of high-resolution audio streaming. Simplify your audio system and enjoy your music. The built-in player is implemented on a quad-core ARM processor. The software is developed by Matrix Audio and is based on Linux OS.

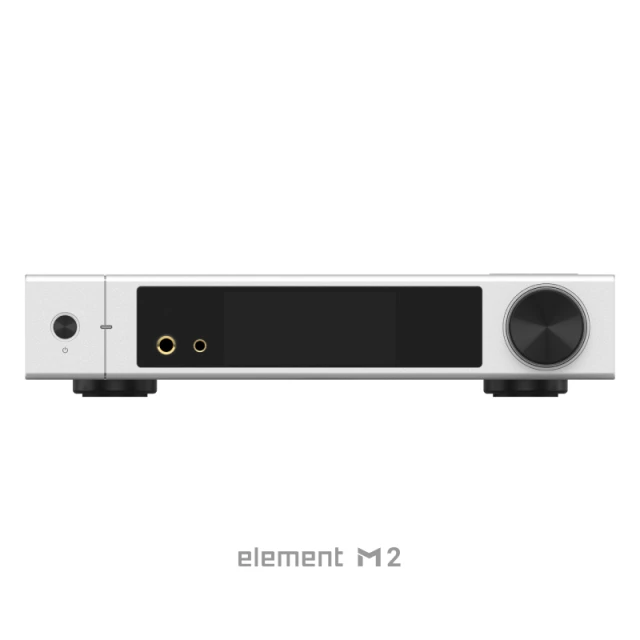

The built-in player is implemented on a quad-core ARM processor. The software is developed by Matrix Audio and is based on Linux OS. The Element M2 is capable of playing files over a network from a NAS and from local disks connected via USB ports on the back of the device. It supports the main music file formats and supports PCM (up to 768 kHz) and DSD (up to DSD512) recordings.

The Matrix Element i2 is a multifunctional harvester with a beautiful design and excellent sound. The Element i2 is both a network player, a DAC, and a headphone amplifier in one package.

Matrix Audio Mini-i Pro 4 digital-to-analog converter with streaming and headphone amplifier. Matrix Mini-i Pro 4 is a device with excellent functionality and excellent sound! Support for ROON, MQA format, wireless data transmission over Wi-Fi, as well as a built-in balanced headphone amplifier (with two outputs), 24-bit LCD display. The Matrix Mini-i Pro 4 uses a modern ES9039Q2M DAC chip.

In addition to streaming capabilities, Matrix Audio TS-1 offers the functionality of a high-end headphone amplifier. The streaming platform from the top series, together with the proprietary Player OS and the MA Remote App control application, looks exceptionally impressive. All the necessary streaming clients are at hand, the device is configured in a couple of taps. Matrix Audio TS-1 offers an asynchronous upsampling and DSD conversion algorithm, which really increases the resolution and density of the bass. Each channel of the streamer uses an AK4493SEQ chip with two DAC blocks operating in parallel.

The digital-to-analog conversion is implemented here on the AK4493SEQ DAC chip from the Japanese company Asahi Kasei. Combined with Matrix Audio's proprietary FemtoSecond Clock system and proprietary jitter suppression algorithms, this lays the foundation for producing a high-quality, distortion-free analog signal.

The MD-1P is the foundation for a high-quality yet minimalistic High-End system. Everything is thought out here: an HDMI eARC port, a USB audio input, XLR and RCA line inputs, a Phono input for an MM cartridge, HD Bluetooth, an NVMe SSD storage slot, a direct CD copy function using an optional USB optical drive, preamp outputs and an output for connecting an active subwoofer.
