Power amplifiers stereo — Matrix Audio MA-1
Description, images, technical data and specifications

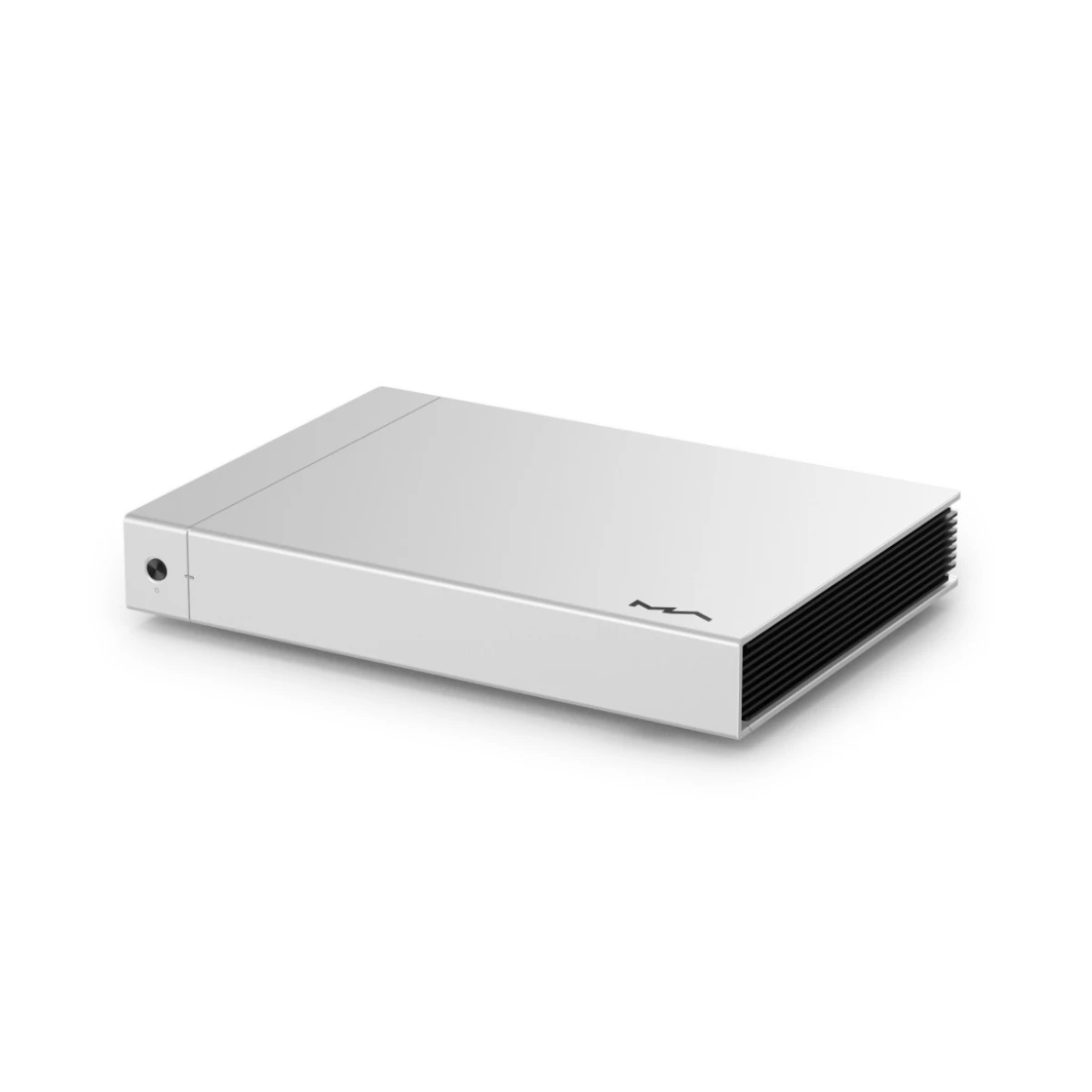

Matrix Audio MA-1
Image source — © Matrix Audio
The output stages of the Matrix Audio MA-1 power amplifier are made on discrete elements and operate in class A/B. To reduce the output impedance, ten high-power ONSEMI transistors operate in parallel in each channel to create a push-pull amplification circuit operating in a state of high bias current. At a load with a nominal resistance of 8 ohms, the amplifier provides an output power of 250 watts per channel and 450 watts per channel at a load of 4 ohms.
Specifications
Model name
MA-1
Input sensitivity (mV)
1480
Input impedance (balanced) (Ω)
40 000
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 250
Output power (4Ω) (W)
2 x 450
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
160 000
Signal to Noise Ratio (dB)
119
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.02
Max power consumption (W)
1250
Damping factor
350
Dimensions (mm)
430 × 518 × 201
Weight (kg)
42.4
Official link
