Streamers — Matrix Audio mini-i Pro 4
Description, images, technical data and specifications

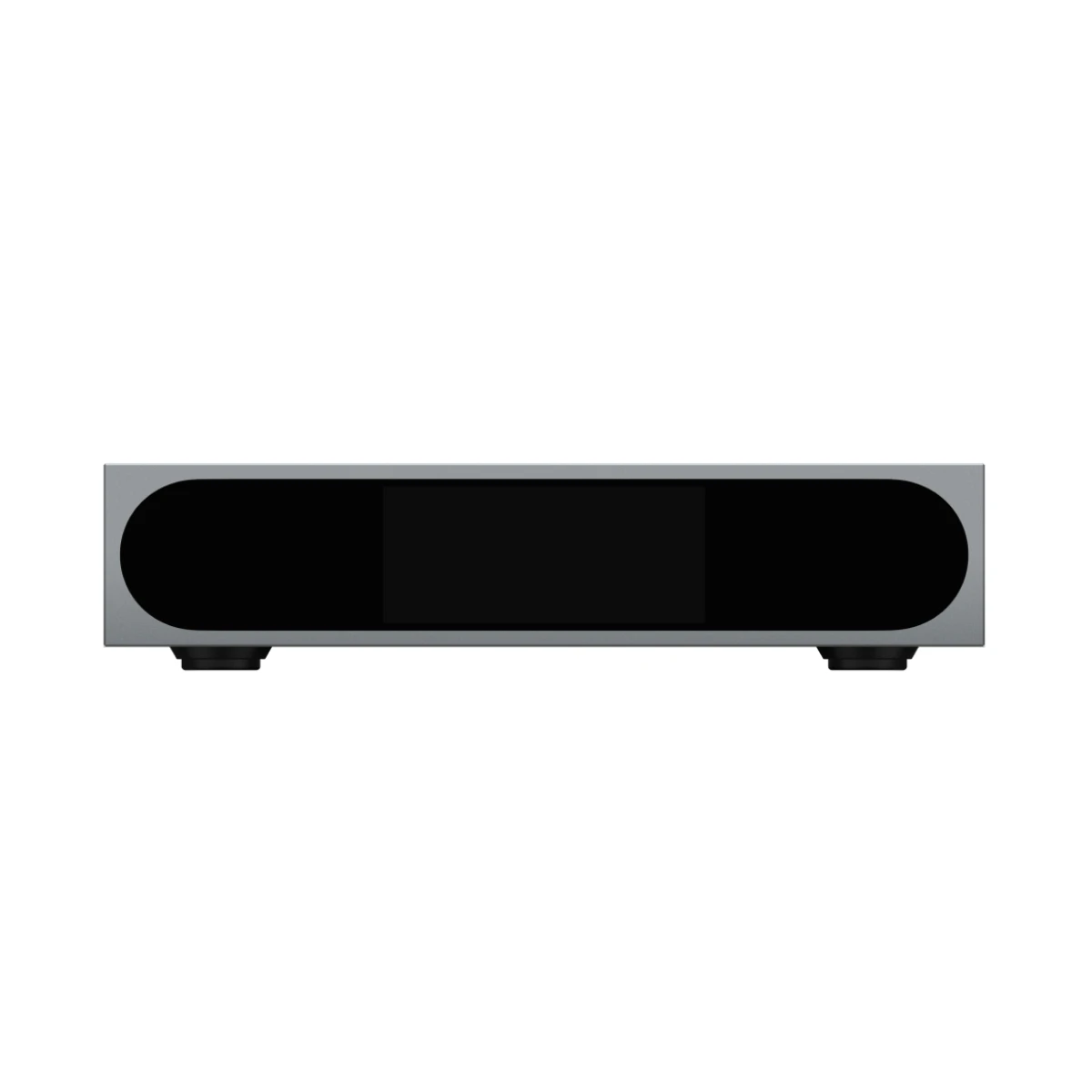

Matrix Audio mini-i Pro 4
Image source — © Matrix Audio
Specifications
Model name
mini-i Pro 4
Has internal DAC
Yes
DSD compatability
Yes
Parameters
up to 24 bit / 768kHz and DSD 22.4MHz
DSP processing
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
90 000
Gain (dBu)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs level (balanced) (V)
4.4
Analog outputs level (single-ended) (V)
2.2
Signal to Noise Ratio (dB)
127 (XLR) + 121 (RCA)
Total Harmonic Distortion + Noise (% at 22 kHz)
0.00010 (XLR) + 0.00020 (RCA)
Dimensions (mm)
224 × 186 × 53
Weight (kg)
1.3
Official link
