Integrated amplifiers — Matrix Audio MD-1P

Description, images, technical data and specifications

Matrix Audio MD-1P
Image source — © Matrix Audio

The MD-1P is the foundation for a high-quality yet minimalistic High-End system. Everything is thought out here: an HDMI eARC port, a USB audio input, XLR and RCA line inputs, a Phono input for an MM cartridge, HD Bluetooth, an NVMe SSD storage slot, a direct CD copy function using an optional USB optical drive, preamp outputs and an output for connecting an active subwoofer.

Specifications

  • Model name

    MD-1P

  • Type

    Integrated Amplifier with DAC, Phono and Streamer

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    1

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    20

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000

  • Output power (8Ω) (W)

    300

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    120

  • Total Harmonic Distortion + Noise (%)

    <0.0005

  • Damping factor

    N/A

  • Dimensions (mm)

    430 x 331 x 96

  • Weight (kg)

    7.6

  • Official link

    https://www.matrix-digi.com/product/123/MD-1_MD-1P

Related content

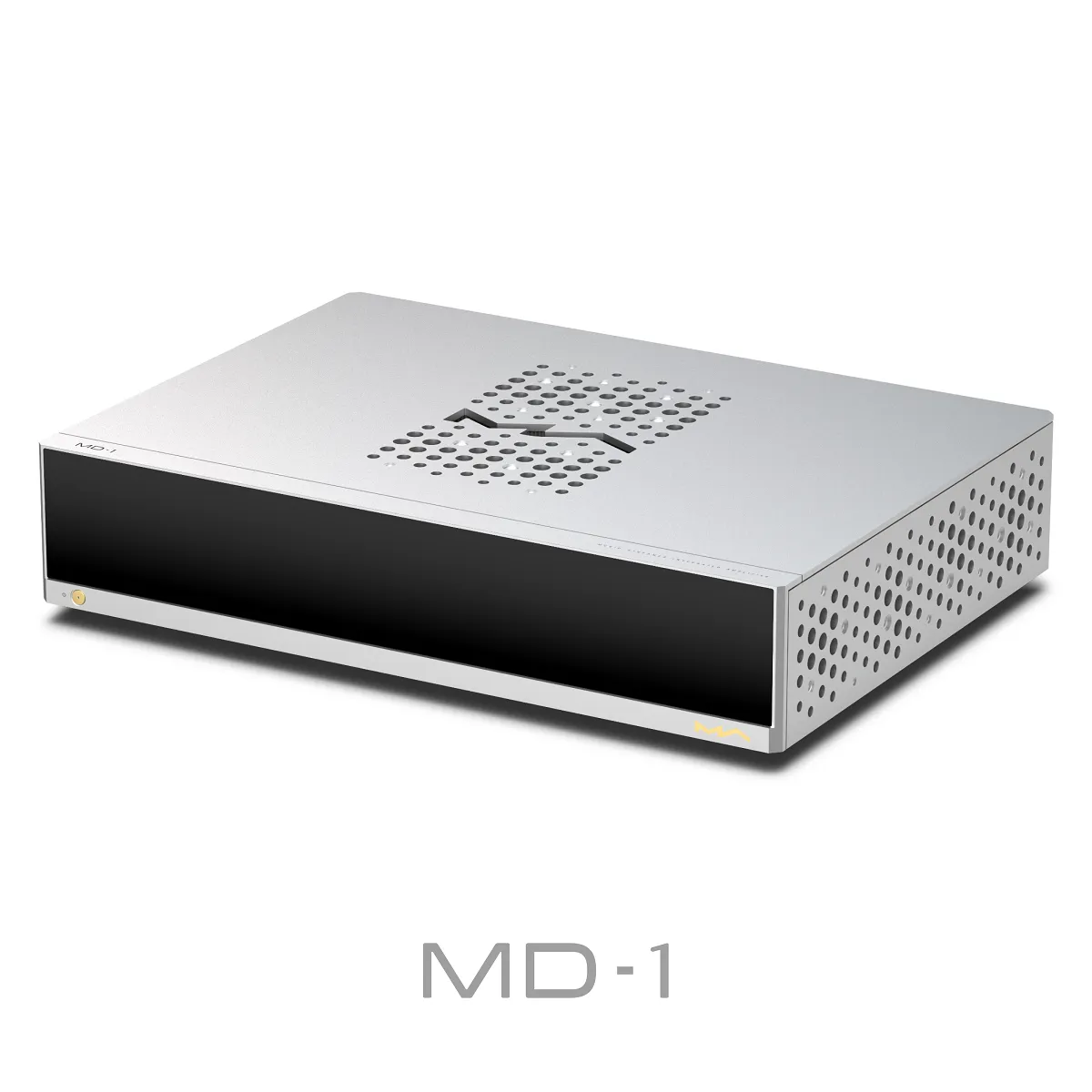

Matrix Audio MD-1
