Power amplifiers stereo — Matrix Audio Element P2

Description, images, technical data and specifications

Matrix Audio Element P2
Image source — © Matrix Audio

With a resistance load of 8 ohms, the output power is 110 watts in stereo mode and up to 500 watts in bridge mode. The amplifier body is made of thick aluminum panels, and special supports with ceramic balls are responsible for vibration suppression.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Element P2

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    <25

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    2 x 110

  • Output power (4Ω) (W)

    2 x 230

  • Gain (dBu)

    34 (XLR) + 28 (RCA)

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    112

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.008

  • Max power consumption (W)

    1200

  • Damping factor

    N/A

  • Dimensions (mm)

    340 × 259 × 259

  • Weight (kg)

    3.7

  • Official link

    https://www.matrix-digi.com/product/88/element_P2

Matrix Audio MA-1

More components

  • MA-1

    Power amplifiers stereo

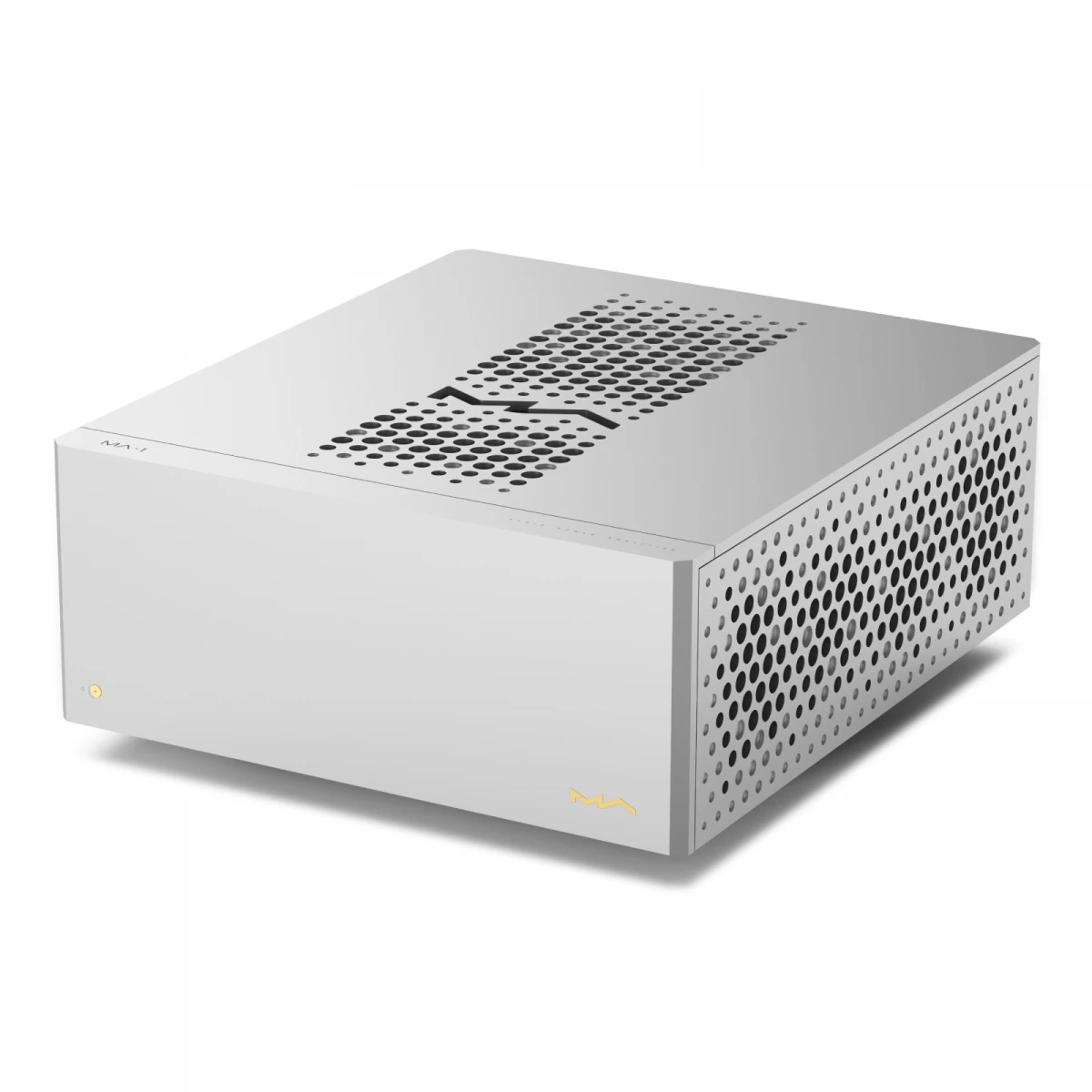

    Matrix Audio MA-1

    The output stages of the Matrix Audio MA-1 power amplifier are made on discrete elements and operate in class A/B. To reduce the output impedance, ten high-power ONSEMI transistors operate in parallel in each channel to create a push-pull amplification circuit operating in a state of high bias current.
