Integrated amplifiers — Matrix Audio MD-1

Description, images, technical data and specifications

Matrix Audio MD-1
Image source — © Matrix Audio

The digital-to-analog conversion is implemented here on the AK4493SEQ DAC chip from the Japanese company Asahi Kasei. Combined with Matrix Audio's proprietary FemtoSecond Clock system and proprietary jitter suppression algorithms, this lays the foundation for producing a high-quality, distortion-free analog signal.

Specifications

  • Model name

    MD-1

  • Type

    Integrated Amplifier with DAC and Streamer

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    1

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    20

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000

  • Output power (8Ω) (W)

    150

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    120

  • Total Harmonic Distortion + Noise (%)

    <0.0005

  • Damping factor

    N/A

  • Dimensions (mm)

    430 x 331 x 96

  • Weight (kg)

    7

  • Official link

    https://www.matrix-digi.com/product/123/MD-1_MD-1P

Related content

Matrix Audio MD-1P

More components

  • MD-1P

    Integrated amplifiers

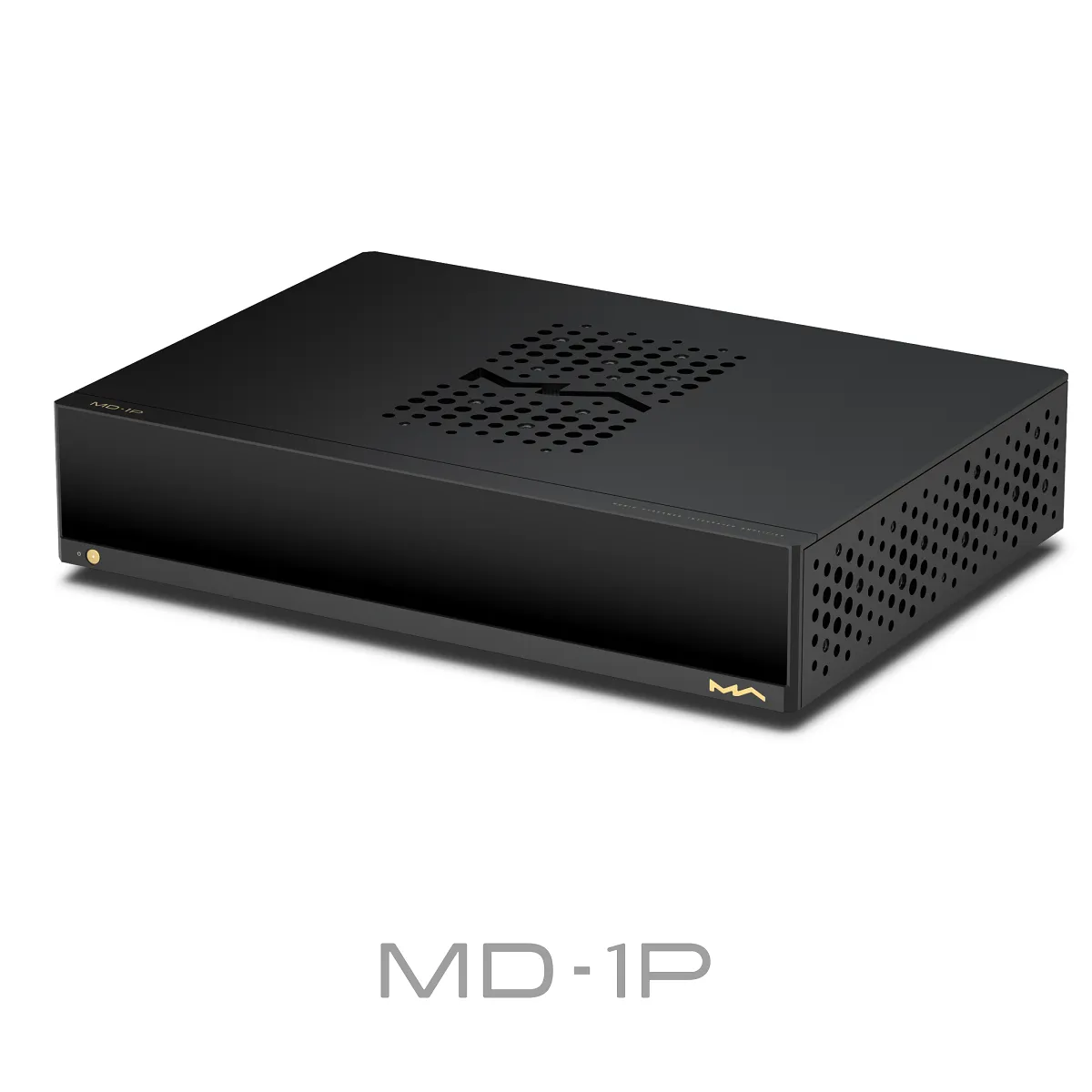

    Matrix Audio MD-1P
