Phonostages — European Audio Team (EAT) E-Glo SB

Description, images, technical data and specifications

European Audio Team (EAT) E-Glo SB
Image source — © European Audio Team (EAT)

The EAT E-Glo SB model is architecturally closer to the flagship E-Glo FB. Its second stage is made according to a symmetrical lamp circuit with two ECC83S and two E88CC triodes, which preserves balanced processing over most of the signal path. The amplification and RIAA circuits also use high-quality polypropylene capacitors based on a semi-crystalline hydrocarbon dielectric.

Specifications

  • Model name

    E-Glo SB

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    1

  • MC current-sensing input impedance (Ω)

    30 - 75 000 (MM), 10 - 1200 (MC)

  • MM/MC voltage input impedance (Ω)

    N/A

  • Output impedance (Ω)

    N/A

  • Gain (dB)

    40, 45, 50, 55, 65 and 70

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Dimensions (mm)

    395 × 86 × 262

  • Weight (kg)

    5.1

  • Official link

    https://www.europeanaudioteam.com/

Related content

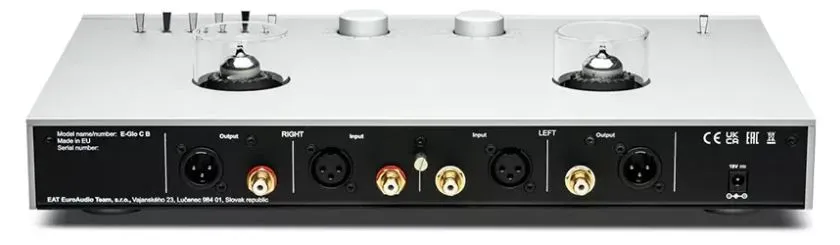

European Audio Team (EAT) E-Glo CB
