Streamers — Cary Audio DMS-650

Description, images, technical data and specifications

Cary Audio DMS-650
Image source — © Cary Audio

The DMS-650 is a player with a new design, where dynamic elements are located on the right side of the front panel. The output stage is based on a high-resolution digital audio circuit. The basis of the scheme was the AKM AK4497EQ DAC. Users will be able to choose a player in black or silver trim.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    DMS-650

  • Has internal DAC

    Yes

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD512

  • DSP processing

    N/A

  • Frequency response low +/- 3dB (Hz)

    2

  • Frequency response high +/- 3dB (Hz)

    22 000

  • Gain (dBu)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    440

  • Output Impedance (single-ended) (Ω)

    220

  • Analog outputs level (balanced) (V)

    3

  • Analog outputs level (single-ended) (V)

    3

  • Signal to Noise Ratio (dB)

    115

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.0004

  • Dimensions (mm)

    95 x 438 x 413

  • Weight (kg)

    13

  • Official link

    https://caryaudio.com/products/dms-650-network-audio-player/

Cary Audio DMS-700

More components

  • DMS-700

    Streamers

    Cary Audio DMS-700

    DACs with an R2R current output, which use simple current division on resistors with a sequential resistance ratio of 1:2:4:8 and so on, have been known since the birth of digital audio.

  • DMS-800 PV

    Streamers

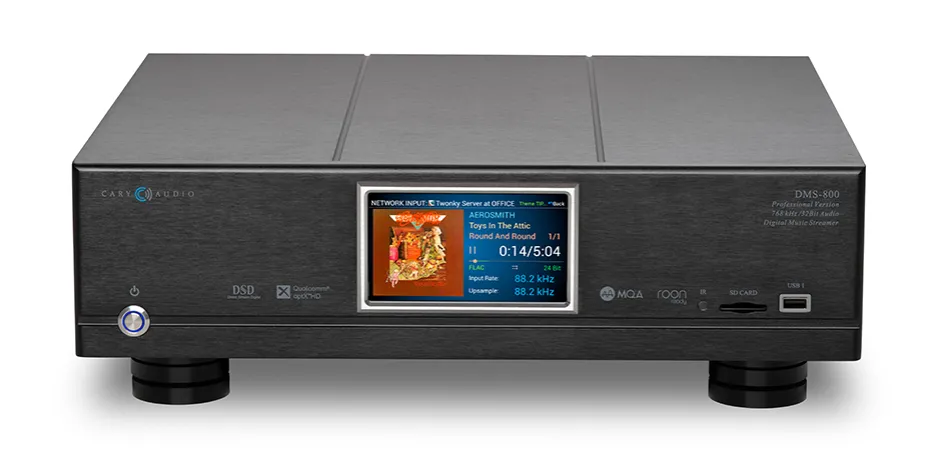

    Cary Audio DMS-800 PV
