Cary Audio DMS-800 PV
Image source — © Cary Audio

The dual mono design also allows for a fully balanced differential circuit with 8 channels of digital-to-analog conversion (4-channel AK4499EQ chips). The DMS-800PV uses two DSP (digital signal processing) service circuits, a superstable Crystek clock generator, 14 stabilized power lines for digital and utility circuits, two stabilized power lines for analog output stages, and many other large and small parts that work for sound quality.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    DMS-800 PV

  • Has internal DAC

    Yes

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD512

  • DSP processing

    N/A

  • Frequency response low +/- 3dB (Hz)

    2

  • Frequency response high +/- 3dB (Hz)

    22 000

  • Gain (dBu)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs level (balanced) (V)

    N/A

  • Analog outputs level (single-ended) (V)

    N/A

  • Signal to Noise Ratio (dB)

    127

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.0001

  • Dimensions (mm)

    108 x 438 x 413

  • Weight (kg)

    17,92

  • Official link

    https://caryaudio.com/products/dms-800pv-network-audio-player/

Cary Audio DMS-700

More components

  • DMS-650

    Streamers

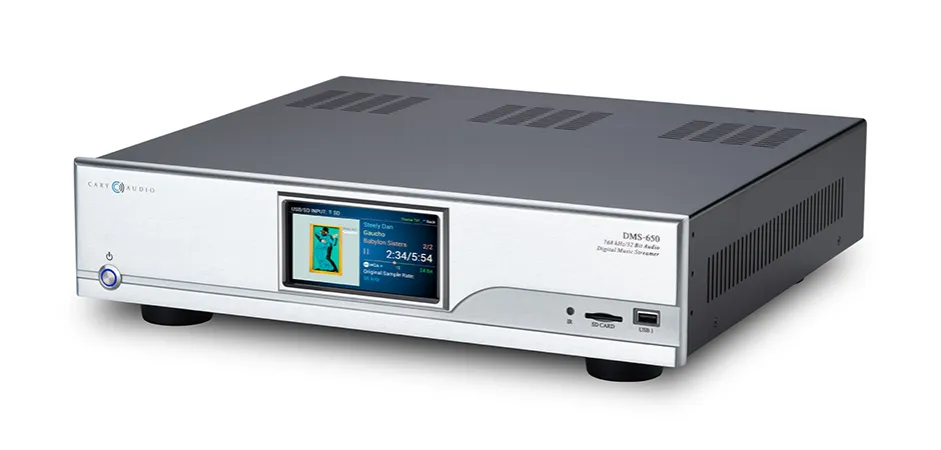

    Cary Audio DMS-650

    The DMS-650 is a player with a new design, where dynamic elements are located on the right side of the front panel. The output stage is based on a high-resolution digital audio circuit. The basis of the scheme was the AKM AK4497EQ DAC. Users will be able to choose a player in black or silver trim.

  • DMS-700

    Streamers

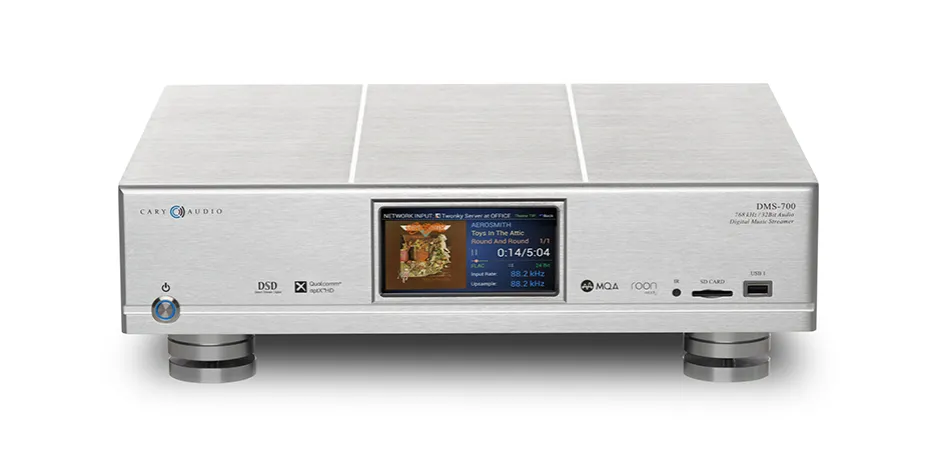

    Cary Audio DMS-700
