DACs — Schiit Audio Mimir

Name: Mimir
Brand: Schiit Audio
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Schiit Audio Mimir
Image source — © Schiit Audio

The new product became the first DAC in the history of Schiit Audio, which uses the so-called Mesh filter, working in conjunction with the standard ESS Sabre DAC chip. Analog Stage based on LME49724 for balanced output, OPA1656 for SE output, with precision thin-film resistors and film capacitors.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
Mimir
Conversion type
Schiit Mesh
Engine
Schiit Mesh, a unique combination of our time- and frequency-domain optimized digital filter and a standard delta-sigma modulator, in this case an ES9028
DSD compatability
N/A
Parameters
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20000
Gain (dBu)
N/A
Output Level (balanced) (V)
4
Output Level (single-ended) (V)
2
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs
N/A
Signal to Noise Ratio (dB)
118
Total Harmonic Distortion + Noise (% at 22 kHz)
0.0003
Dimensions (mm)
22.9 x 15.3 x 3.8
Weight (kg)
0.91
Official link
https://www.schiit.com/products/mimir?srsltid=AfmBOoq73y1nheEl3uqcSYNgLd6yxAIkIn_qKp3TYW3e0NfuKx6bOgII

More components

DACs

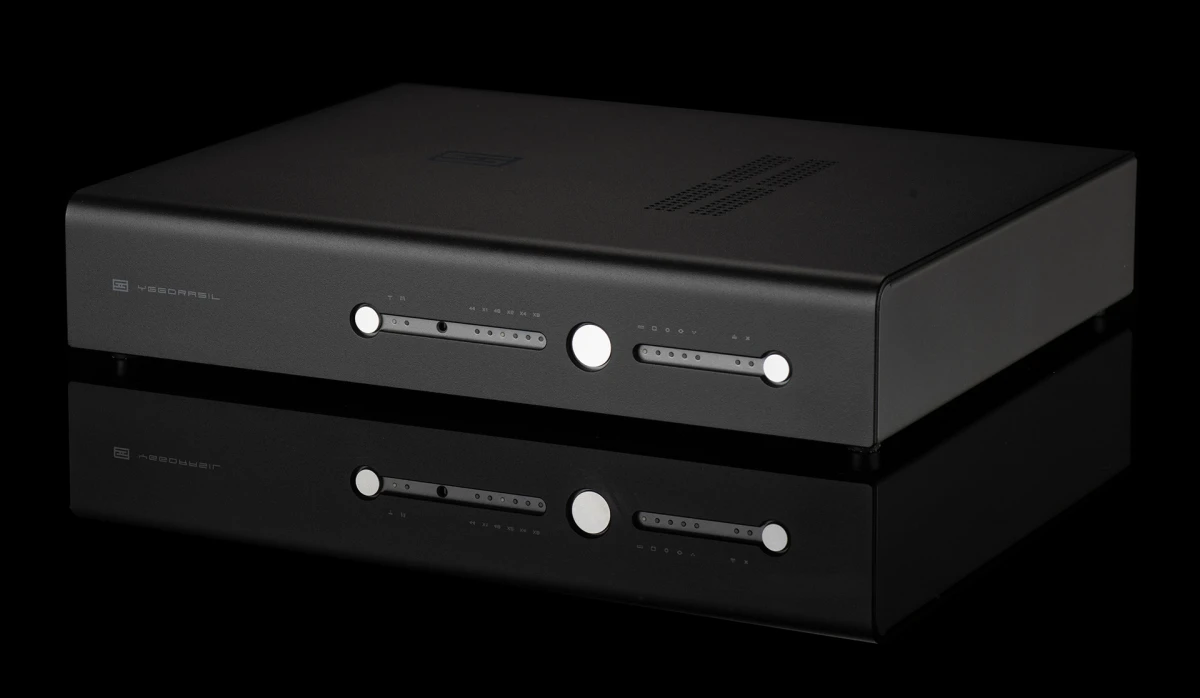

Schiit Audio YGGDRASIL
Schiit Yggdrasil 1 is the flagship multi-bit DAC from the American company Schiit Audio, built on four precision Analog Devices AD5791 chips (two per channel), which provides real 21-bit resolution and signal conversion accuracy.
DACs

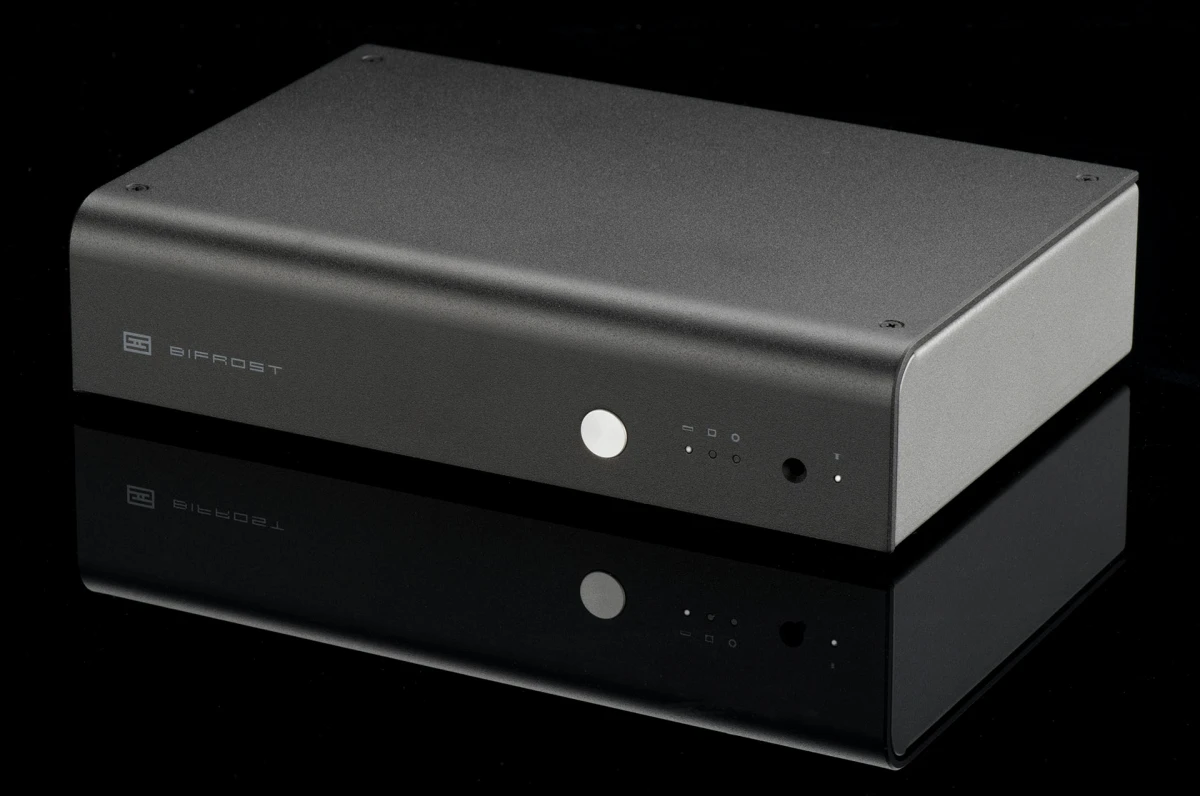

Schiit Audio BIFROST
A special feature of the model is the fact that the analog output modules, including the unbalanced and balanced ones, and the USB module could be replaced independently.
DACs

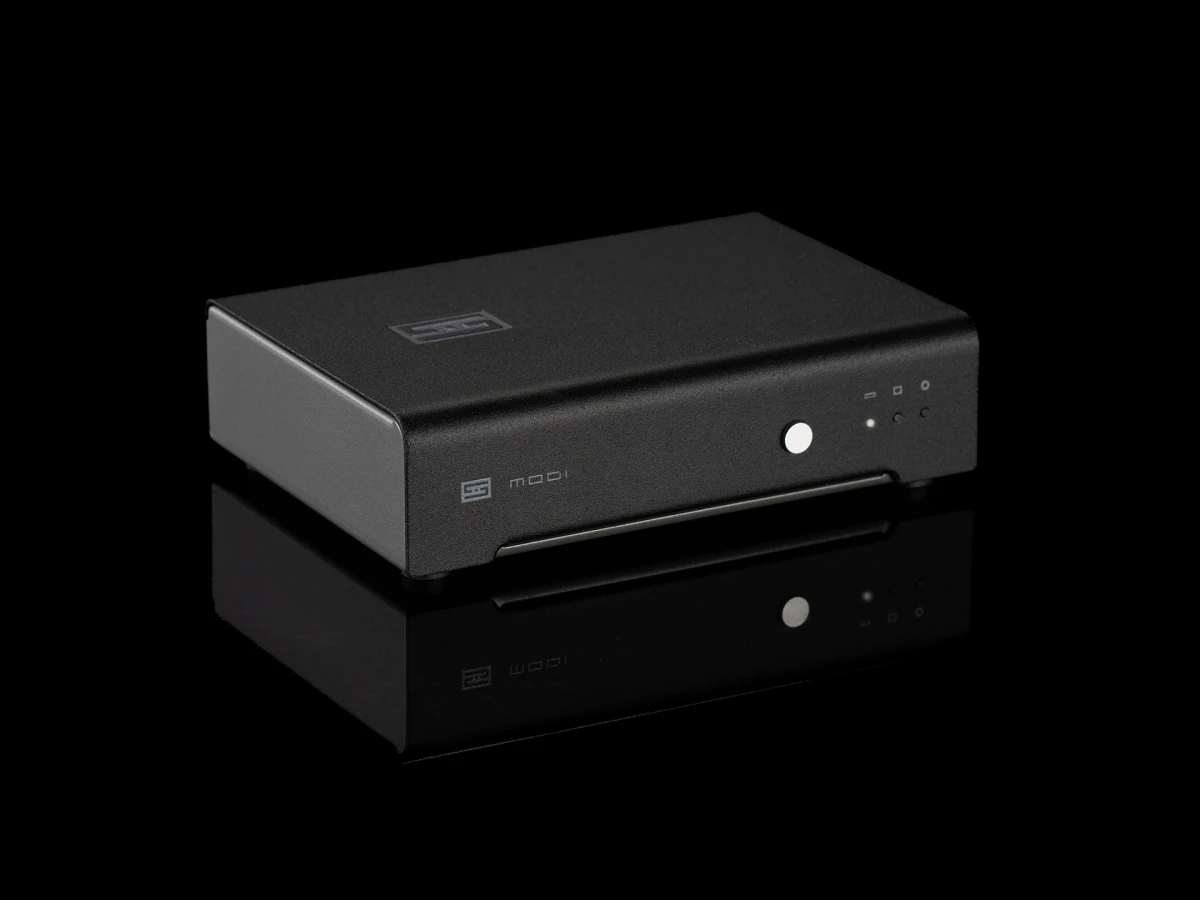

Schiit Audio MODI
