DACs — Gold Note DS-1000 EVO

Name: DS-1000 EVO
Brand: Gold Note
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Gold Note DS-1000 EVO
Image source — © Gold Note

The DS-1000 EVO Line is the most advanced streaming DAC ever created by Gold Note, combining advanced digital—to-analog conversion technology with unique know-how in delivering superior sound quality, or, as we call it, Italian sound.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
DS-1000 EVO
Conversion type
N/A
Engine
AKM AK4493
DSD compatability
Yes
Parameters
up to 32bit/384kHz and DSD512
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Gain (dBu)
N/A
Output Level (balanced) (V)
N/A
Output Level (single-ended) (V)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
100
Output Impedance (single-ended) (Ω)
50
Analog outputs
N/A
Signal to Noise Ratio (dB)
125
Total Harmonic Distortion + Noise (% at 22 kHz)
0.001
Dimensions (mm)
430 x 135 x 375
Weight (kg)
3.75
Official link
https://www.goldnote.it/digital-sources/ds-1000-evo/

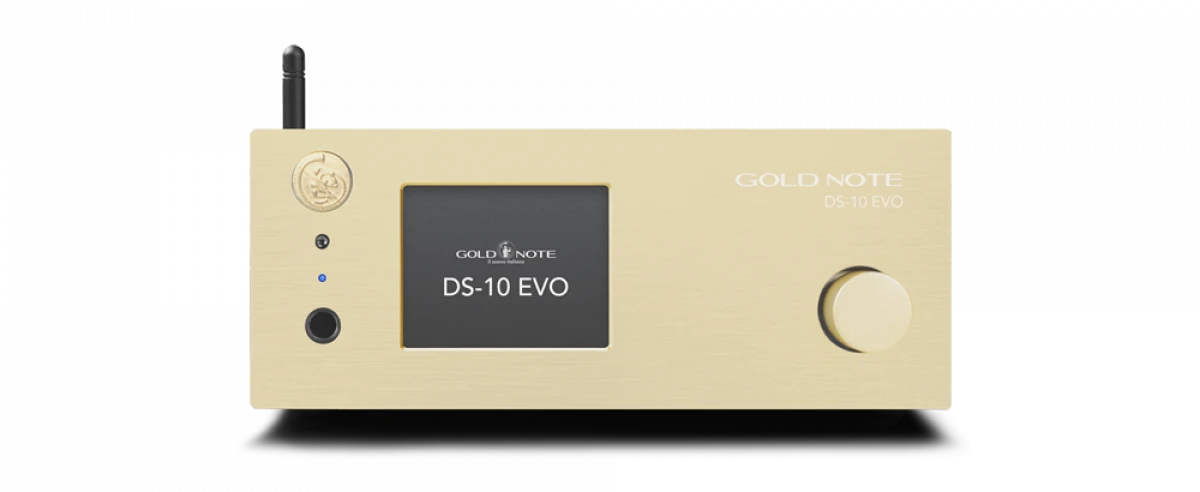

Gold Note DS-10 EVO
