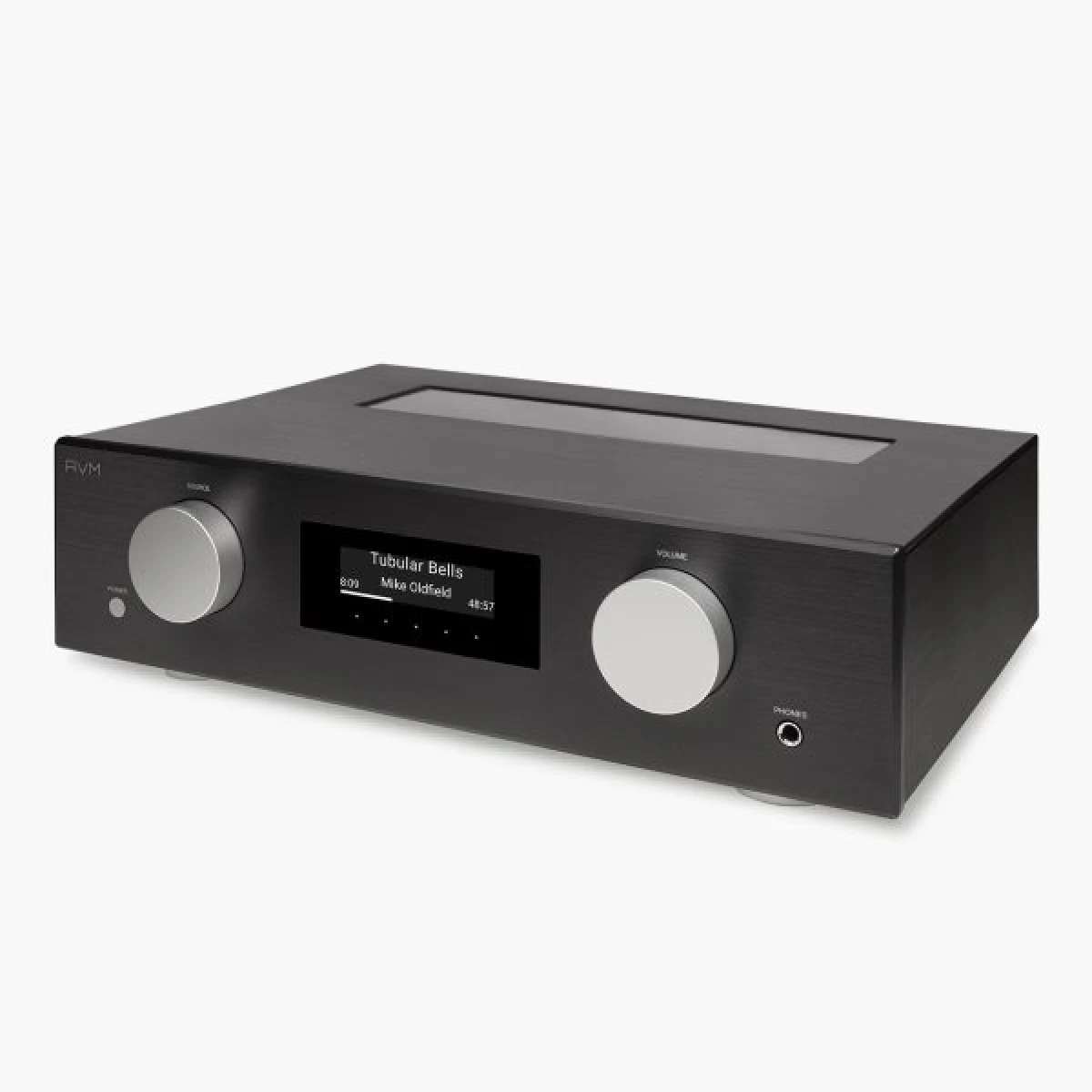

AVM AVM30 PAS 30.3
Image source — © AVM

Enclosed in a classic format case, the preamp combines a switch of several signal sources, a universal phono corrector, a digital-to-analog converter and a Bluetooth 4.2 wireless module. On the back panel there are linear unbalanced and balanced inputs on RCA and XLR connectors, as well as an input for connecting a vinyl player.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    AVM30 PAS 30.3

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    4

  • Analog outputs (balanced)

    N/A

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    30

  • Input sensitivity (mV)

    275

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    3400

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    47

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >95

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0.005

  • Dimensions (mm)

    430 x 115 x 360

  • Weight (kg)

    6.7

  • Official link

    https://avm.audio/masterpieces/avm30-pas-30-3/
