Hifiverse

Preamplifiers — AVM Evolution PAS 3.3 + 5.3

Description, images, technical data and specifications

AVM Evolution PAS 3.3 + 5.3
Image source — © AVM

A special feature of the EVOLUTION SPAS 5.3 is the built-in tube linear stage, which is located in the input section of the preamplifier. Equipped with lamps of its own production, specially made for AVM, it uses a completely new circuit for the latest EVOLUTION series, which was created by AVM Audio engineers, in order to fully unleash their tonal charm.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Evolution PAS 3.3 + 5.3

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3 + 1 (Phono)

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    1

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    40 000

  • Input impedance (single-ended) (Ω)

    50 000

  • Output impedance (balanced) (Ω)

    94

  • Output impedance (single-ended) (Ω)

    47

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    0

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    N/A

  • Total Harmonic Distortion + Noise (THD+N) (%)

    N/A

  • Dimensions (mm)

    430 x 122 x 350

  • Weight (kg)

    11

  • Official link

    https://avm.audio/masterpieces/evolution-pas-5-3-und-pas-3-3/

AVM AVM30 PAS 30.3

AVM OVATION SD 6.3 + 8.3

More components

  • Ovation PA 8.3

    Preamplifiers

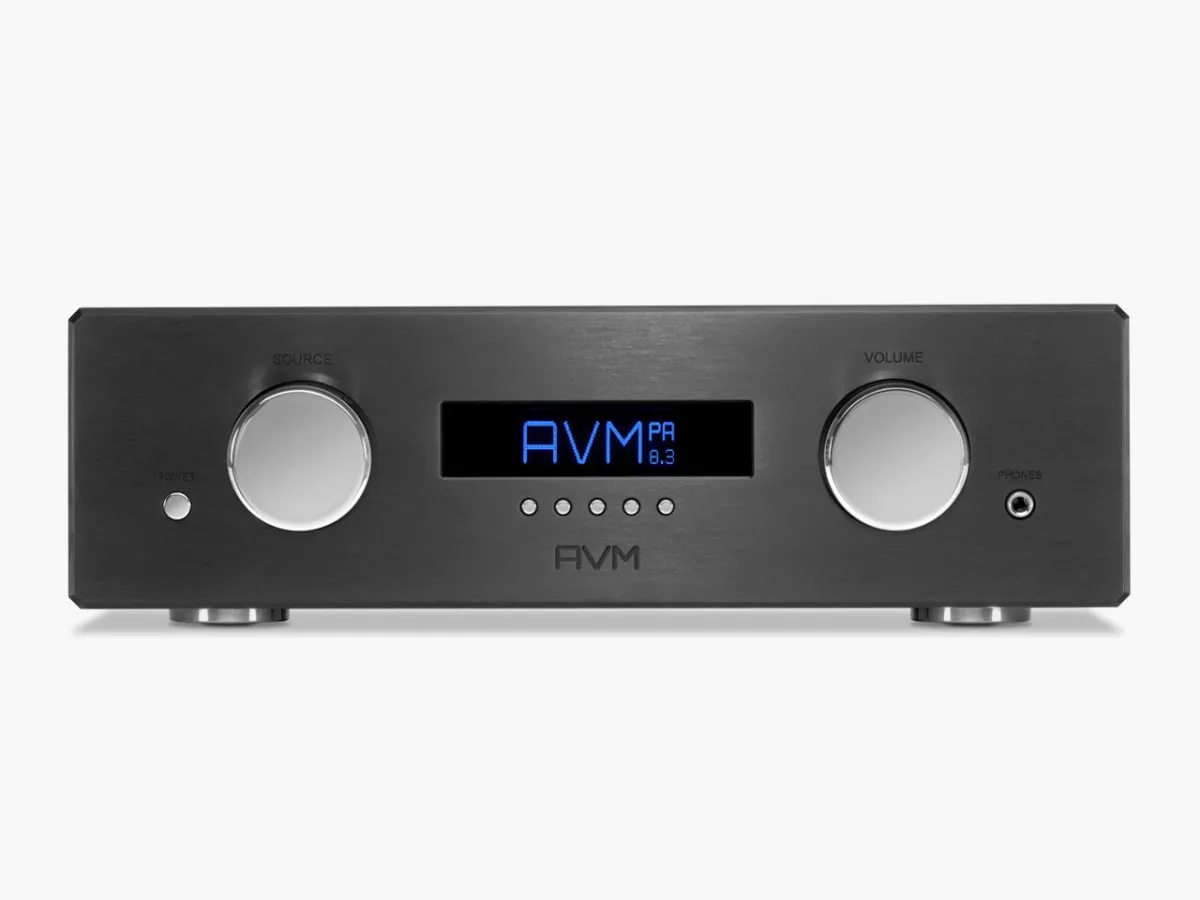

    AVM Ovation PA 8.3

    The modular flagship PA 8.3 preamp is based on a modular design, which allows the device to be continuously expanded and adapted to individual requirements. PA 8.3 consists of two parts: the base unit and modules (all modules are purchased separately). The base unit contains a newly developed and very sophisticated linear power supply, as well as processor control of all functions and all modules that can be combined in almost any way and assembled together to meet individual requirements.

  • OVATION SD 6.3 + 8.3

    Preamplifiers

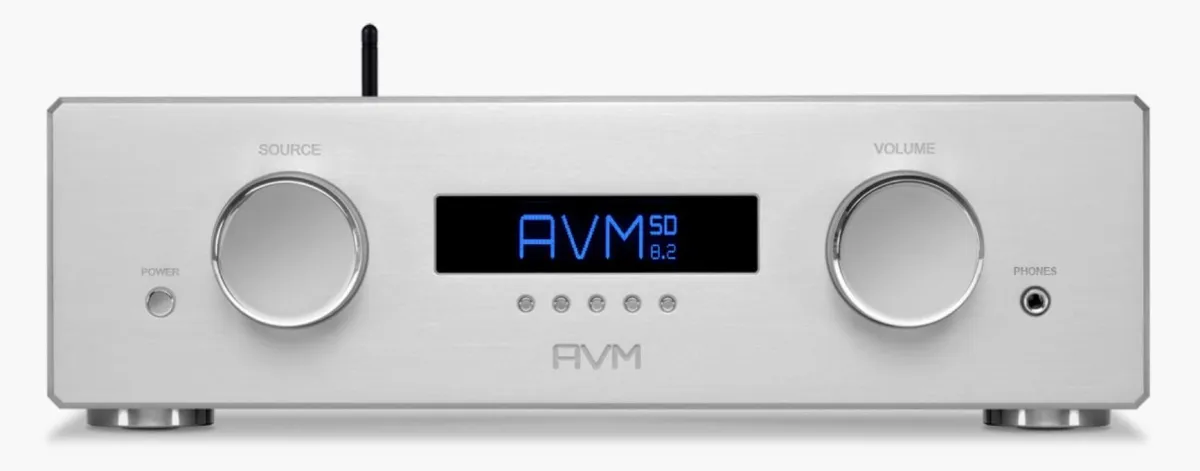

    AVM OVATION SD 6.3 + 8.3

    AVM Audio OVATION SD 6.3 and SD 8.3 are high-end network preamps with streaming functions (AirPlay 2, Spotify Connect, Roon Ready, TIDAL, Qobuz, UPnP, Bluetooth 5.0), built-in DAC (Quad DAC 32 bit/384 kHz, DSD128 support), analog and digital inputs, as well as an amplifier for Class A headphones

  • AVM30 PAS 30.3

    Preamplifiers

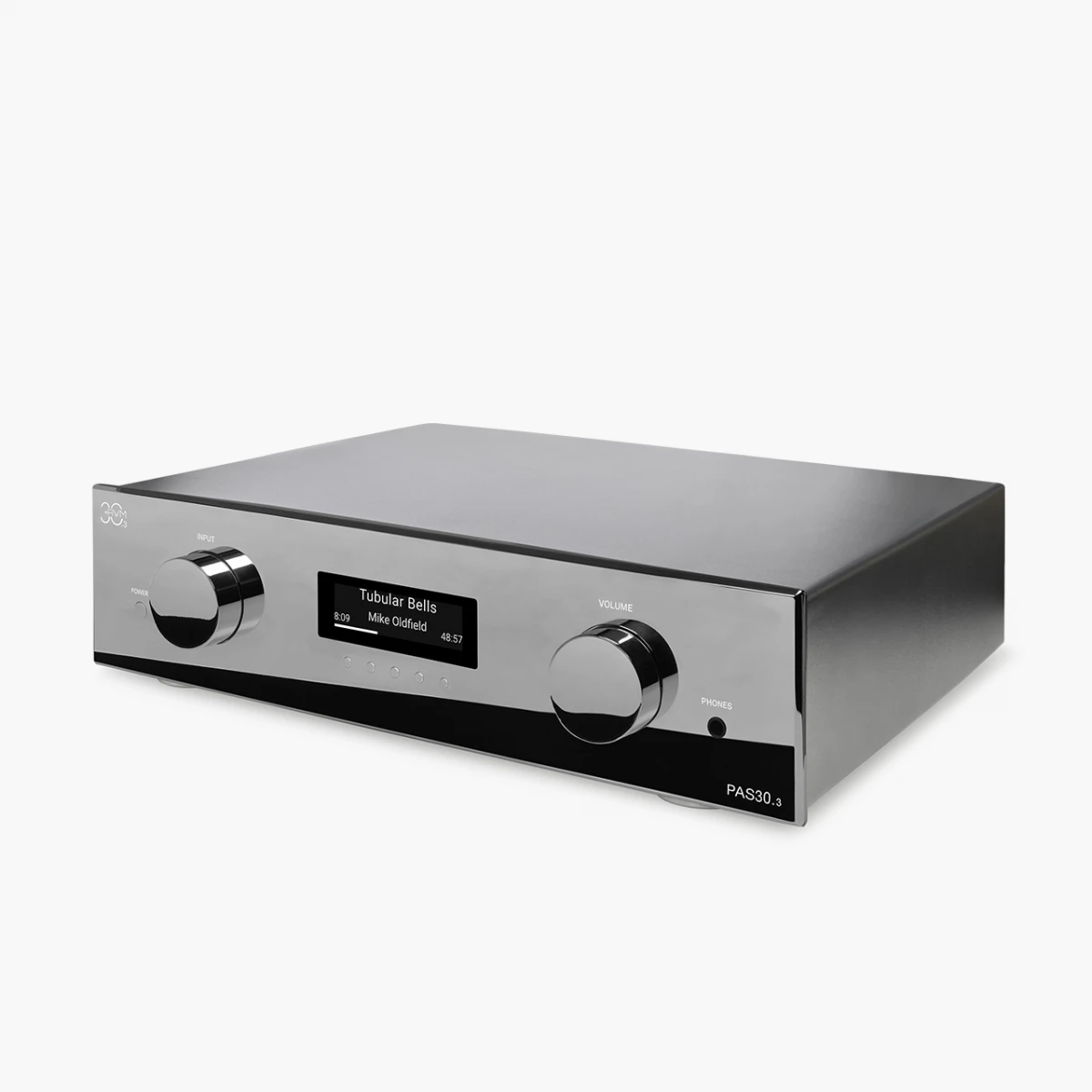

    AVM AVM30 PAS 30.3
