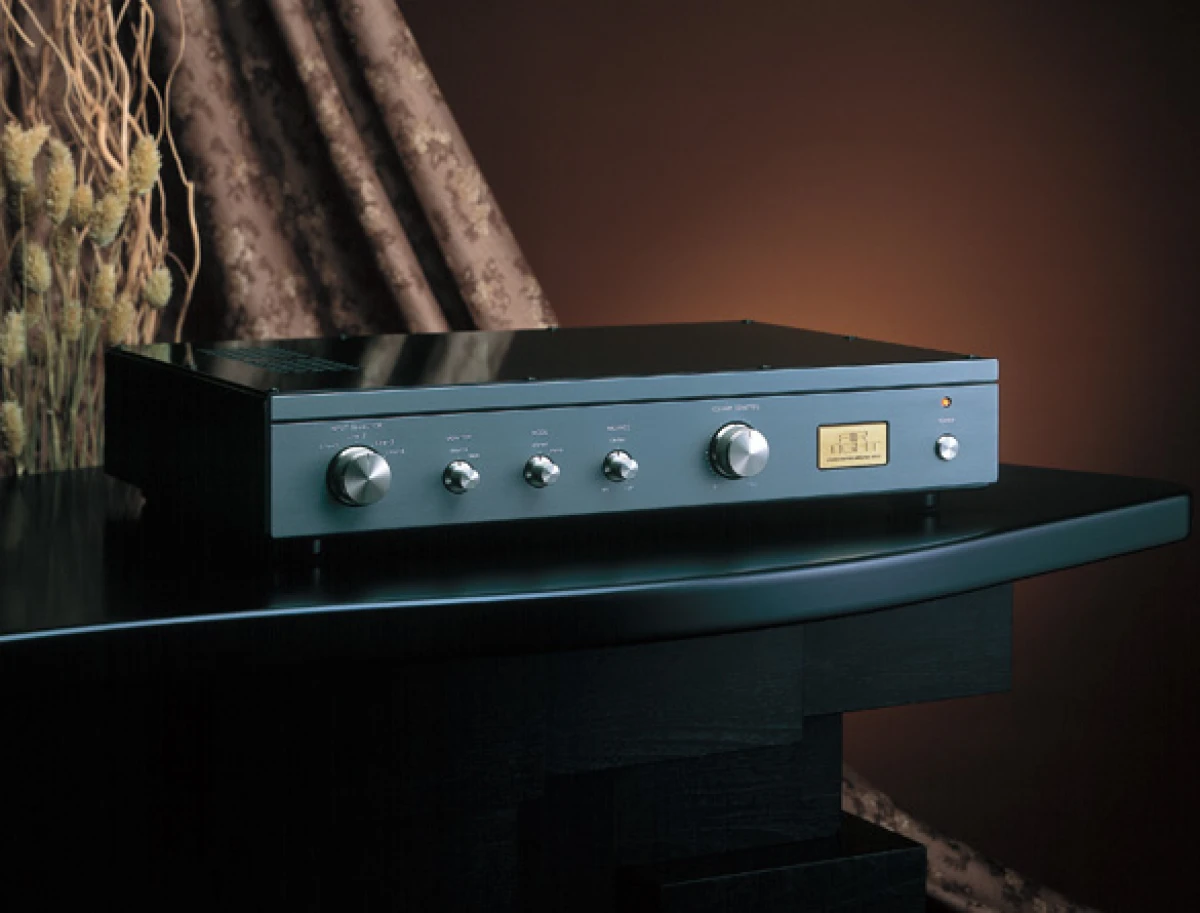

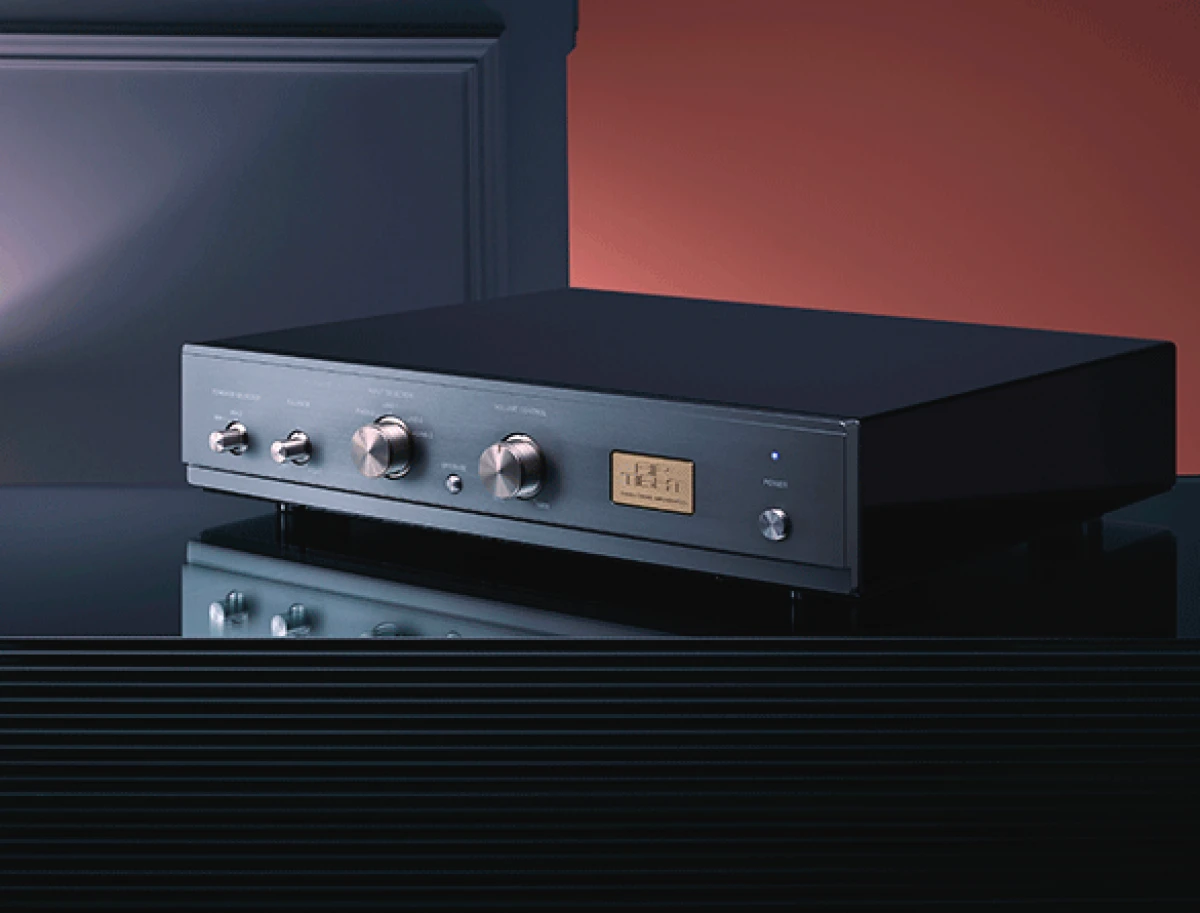

Preamplifiers — Air Tight ATC-7

Specifications

• Model name

  ATC-7

• Analog inputs (balanced)

  2

• Analog inputs (single-ended)

  3

• Analog outputs (balanced)

  N/A

• Analog outputs (single-ended)

  2

• Gain (dBu)

  19

• Input sensitivity (mV)

  N/A

• Output voltage (V)

  20

• Input impedance (balanced) (Ω)

  100 000

• Input impedance (single-ended) (Ω)

  100 000

• Output impedance (balanced) (Ω)

  N/A

• Output impedance (single-ended) (Ω)

  47 000

• Maximum output level (balanced) (dBu)

  N/A

• Maximum output level (single-ended) (dBu)

  N/A

• Volume control range (dBu)

  N/A

• Frequency response low +/- 3dB (Hz)

  N/A

• Frequency response high +/- 3dB (Hz)

  N/A

• Signal to Noise Ratio (SNR, unweighted) (dB)

  N/A

• Total Harmonic Distortion + Noise (THD+N) (%)

  0.02

• Dimensions (mm)

  400 x 350 x 145

• Weight (kg)

  13.5

• Official link

  http://www.airtight-anm.com/components/atc7.html
