Preamplifiers — Air Tight ATC-5s
Description, images, technical data and specifications

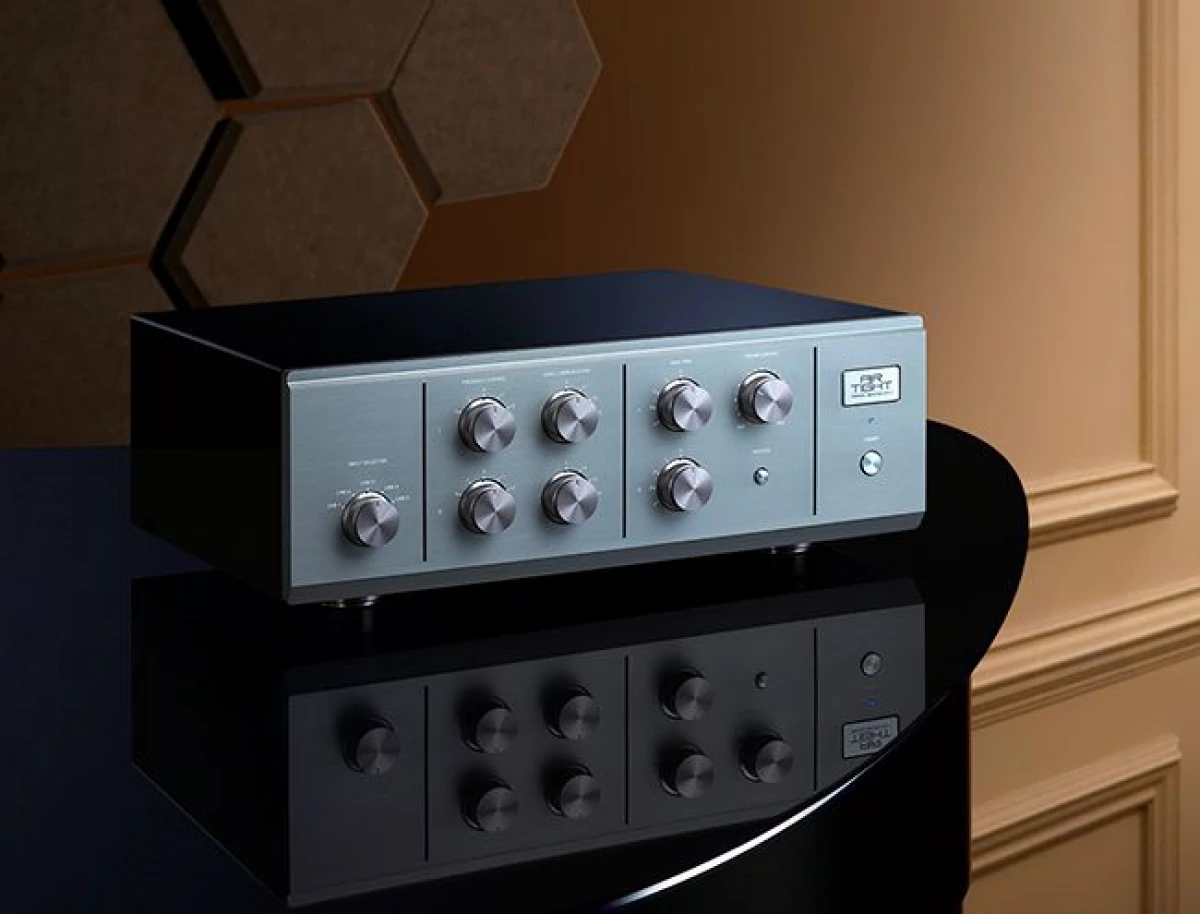

Air Tight ATC-5s
Image source — © Air Tight
The Air Tigh ATC-5s uses three 12AX7 tubes on the EQ side and two 12AT7s on the amplification side. It has two single-ended inputs for moving magnet (MM) capsules so that it can play with two cymbals or two arms. It also has three line inputs.
Specifications
Model name
ATC-5s
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
3
Analog outputs (balanced)
N/A
Analog outputs (single-ended)
2
Gain (dBu)
18
Input sensitivity (mV)
N/A
Output voltage (V)
20
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (SNR, unweighted) (dB)
N/A
Total Harmonic Distortion + Noise (THD+N) (%)
0.02
Dimensions (mm)
400 × 260 × 90
Weight (kg)
9
Official link
