Preamplifiers — Line Magnetic AS-133
Description, images, technical data and specifications

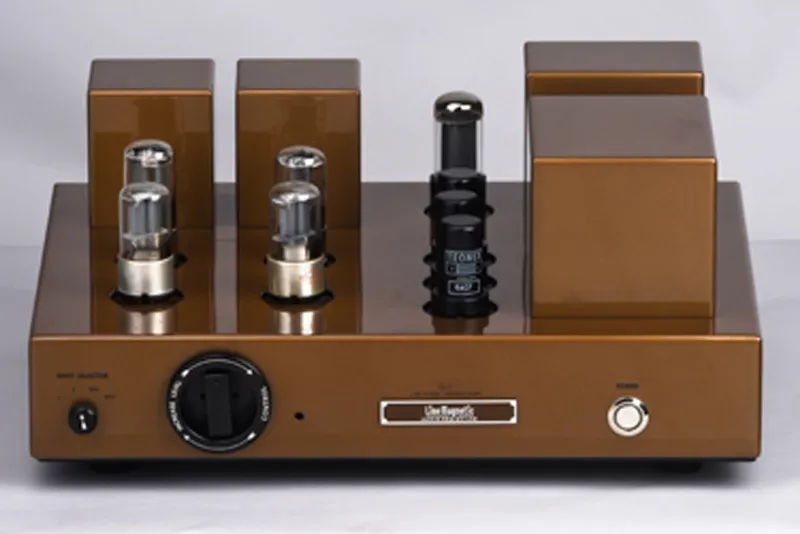

Line Magnetic AS-133
Image source — © Line Magnetic
Specifications
Model name
AS-133
Analog inputs (balanced)
1
Analog inputs (single-ended)
3
Analog outputs (balanced)
N/A
Analog outputs (single-ended)
2
Gain (dBu)
15, 12.5, 10, 7.5, 5, 2.5
Input sensitivity (mV)
1000
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
600
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
50 000
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
98 000
Signal to Noise Ratio (SNR, unweighted) (dB)
90
Total Harmonic Distortion + Noise (THD+N) (%)
0.3
Dimensions (mm)
485 x 240 x 460
Weight (kg)
22
