Preamplifiers — Line Magnetic VV-3
Description, images, technical data and specifications

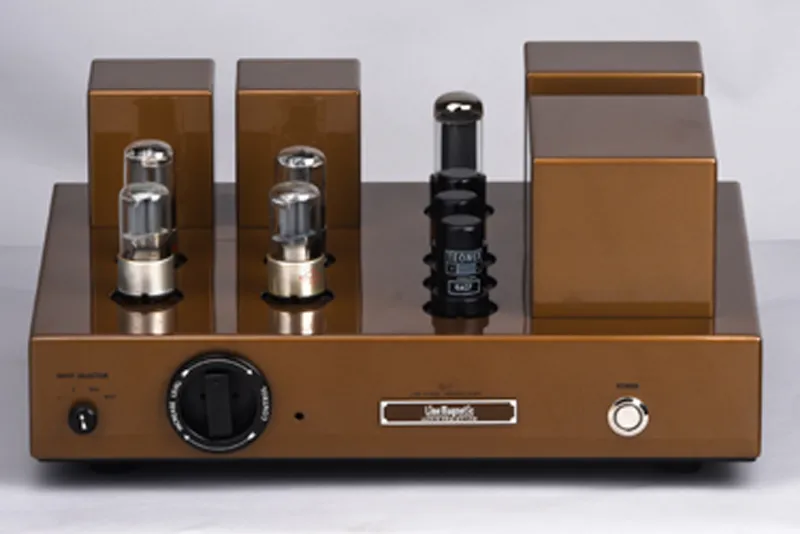

Line Magnetic VV-3
Image source — © Line Magnetic
Specifications
Model name
VV-3
Analog inputs (balanced)
1
Analog inputs (single-ended)
2
Analog outputs (balanced)
1
Analog outputs (single-ended)
1
Gain (dBu)
15,6
Input sensitivity (mV)
330
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
600
Output impedance (single-ended) (Ω)
600
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
30 000
Signal to Noise Ratio (SNR, unweighted) (dB)
90
Total Harmonic Distortion + Noise (THD+N) (%)
0,3
Dimensions (mm)
N/A
Weight (kg)
N/A
Official link
