Power amplifiers stereo — NAD CI 980

Description, images, technical data and specifications

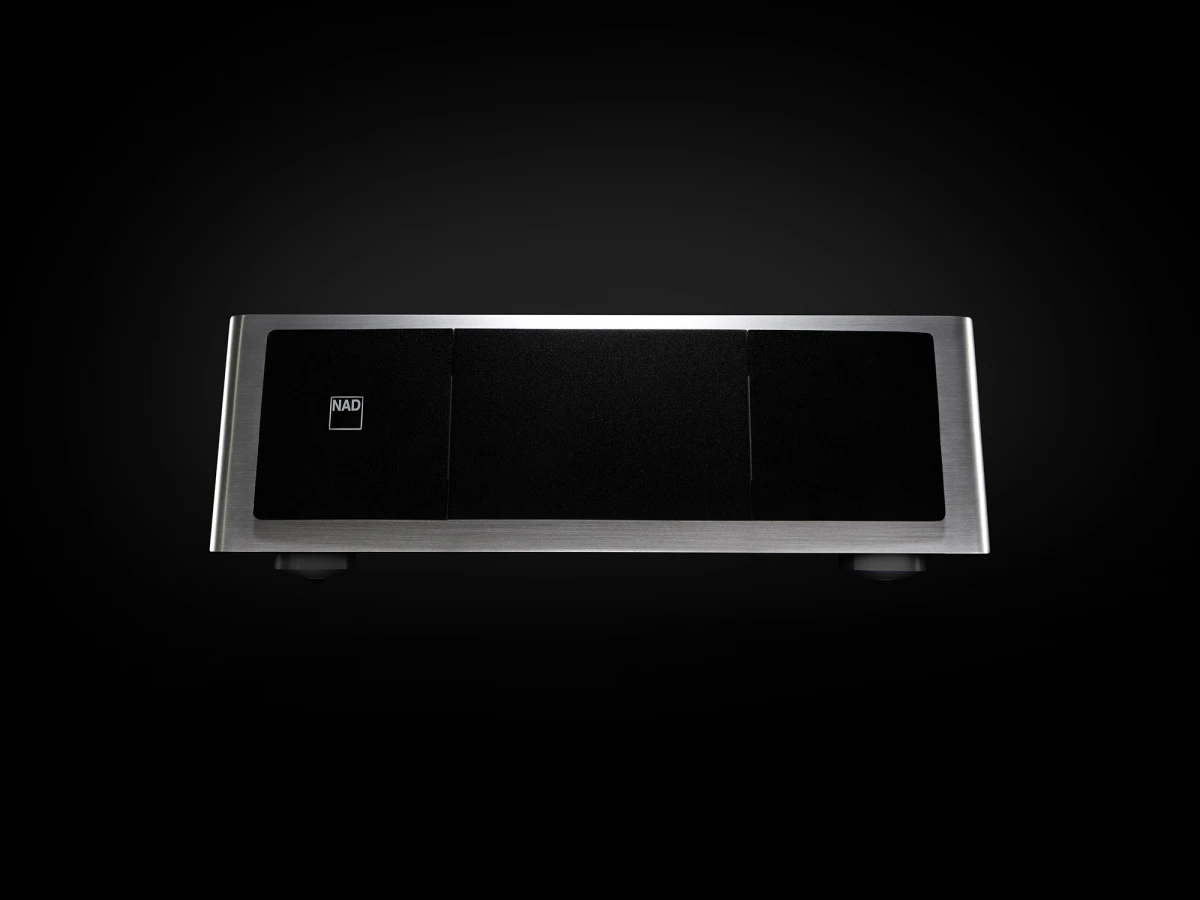

NAD CI 980
Image source — © NAD

The NAD CI 980 is an 8-channel amplifier for professional installations. Output power is 8 x 50 W, at 8 ohms / 2 x 120 W, at 8 ohms (bridge connection). The ability to work in 4 zones. Individual level adjustment for each zone. Removable Phoenix-type acoustic terminals. Brackets for mounting in a rack rack.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
CI 980
Input sensitivity (mV)
1100
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
50
Output power (4Ω) (W)
60
Gain (dBu)
33
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>100
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
N/A
Damping factor
>150
Dimensions (mm)
483 x 105 x 323
Weight (kg)
5.72
Official link
https://nadelectronics.com/product/ci-980-multi-channel-amplifier/
