Power amplifiers stereo — NAD C 268
Description, images, technical data and specifications

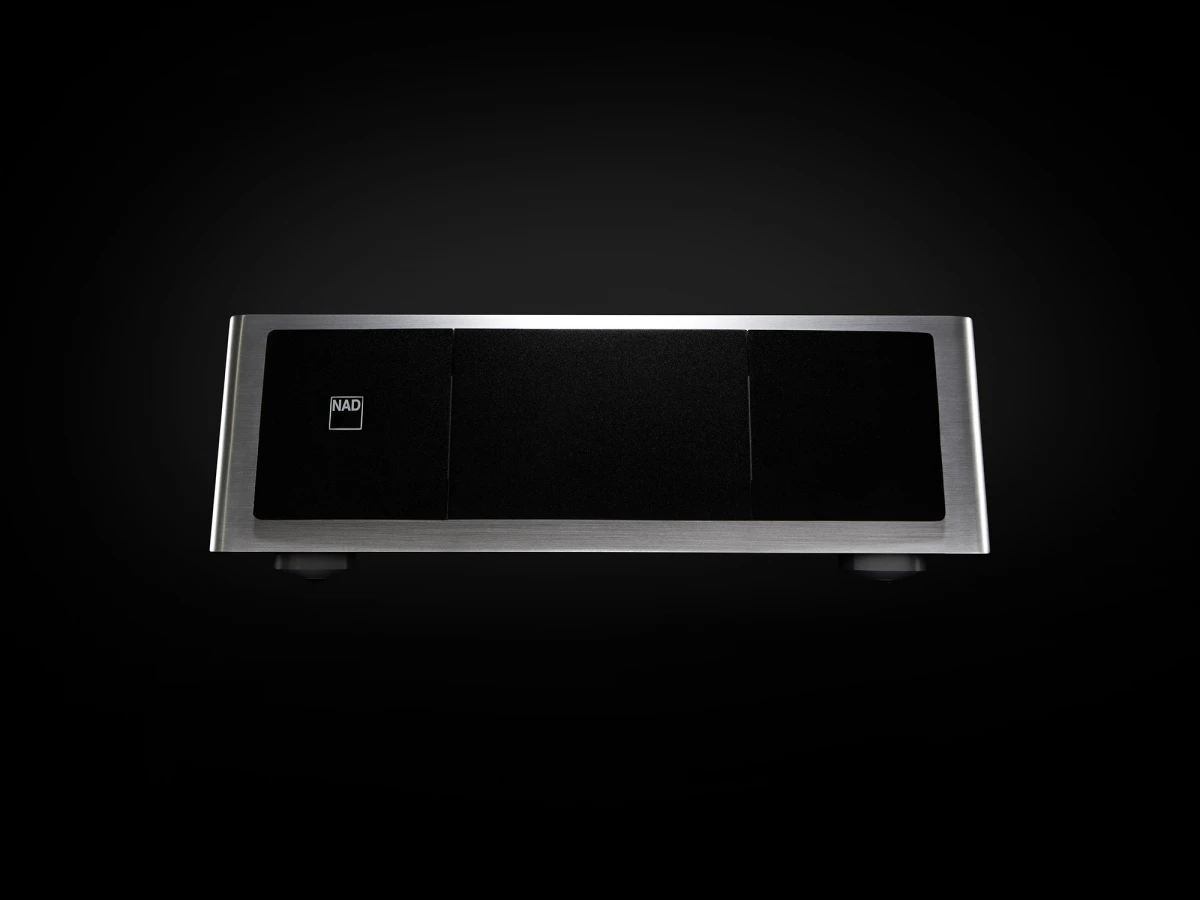

NAD C 268
Image source — © NAD
With balanced inputs, the C 268 is a natural choice for high-performance preamps and processors. These inputs have a trim control function, for matching with other components, or for two-amp connection to speakers. The through-line output allows you to add another power amplifier to the same channel for additional speakers or subwoofers. In addition, there is a bridge switch that turns the C 268 into a surprisingly powerful monoblock amplifier.
Specifications
Model name
C 268
Input sensitivity (mV)
750
Input impedance (balanced) (Ω)
50 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
80
Output power (4Ω) (W)
80
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
N/A
Damping factor
>100
Dimensions (mm)
435 x 100 x 390
Weight (kg)
7.3
Official link
