Power amplifiers stereo — Chord BERTTI
Description, images, technical data and specifications
Chord BERTTI
Image source — © Chord
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
BERTTI
Input sensitivity (mV)
780
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
75
Output power (4Ω) (W)
N/A
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
87
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.008
Max power consumption (W)
240
Damping factor
N/A
Dimensions (mm)
590 x 235 x 256
Weight (kg)
3.75
Official link
More components
Power amplifiers stereo

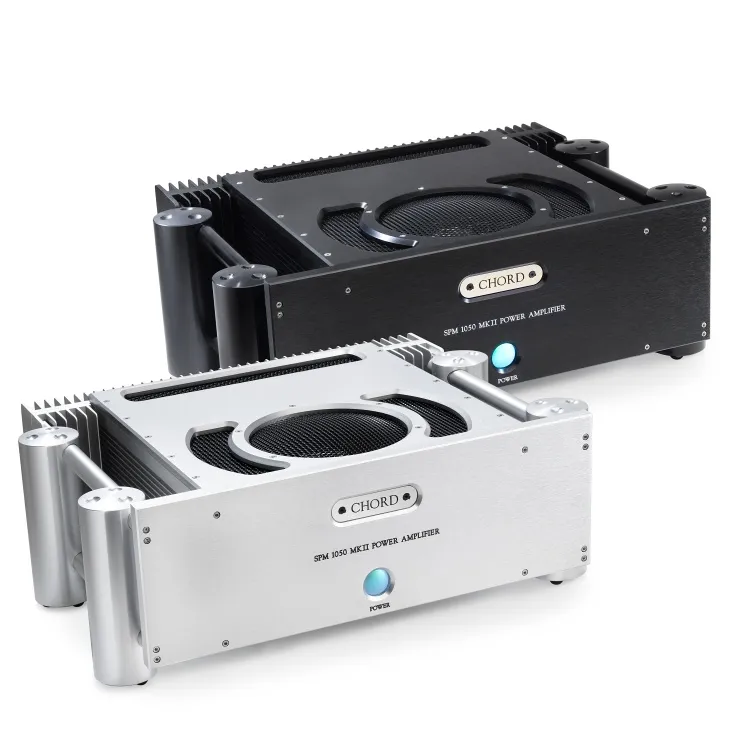

Chord SPM 1050 MKII
