Power amplifiers stereo — CH Precision A1.5
Description, images, technical data and specifications
CH Precision A1.5
Image source — © CH Precision
The amplifier uses a powerful 1,700 VA transformer - it is housed in its own case, which is completely vibration-free and shielded. The power supply uses ESR capacitors, but they are not present in the signal circuit. The entire analog part of the device is assembled on discrete components. Feedback is configured from the front panel in increments of 20%.
Specifications
Model name
A1.5
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
94 000
Input impedance (single-ended) (Ω)
47 000 or 300
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 150
Output power (4Ω) (W)
2 x 275
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
N/A
Frequency response high +/- 3dB (Hz)
N/A
Signal to Noise Ratio (dB)
> 115dB in stereo and bi-amp modes, > 118dB in bridged mode
Total Harmonic Distortion + Noise (0% global feedback) (%)
< 0.1
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0.01
Max power consumption (W)
1800
Damping factor
N/A
Dimensions (mm)
440 x 440 x 198
Weight (kg)
47
Official link
More components
Power amplifiers stereo

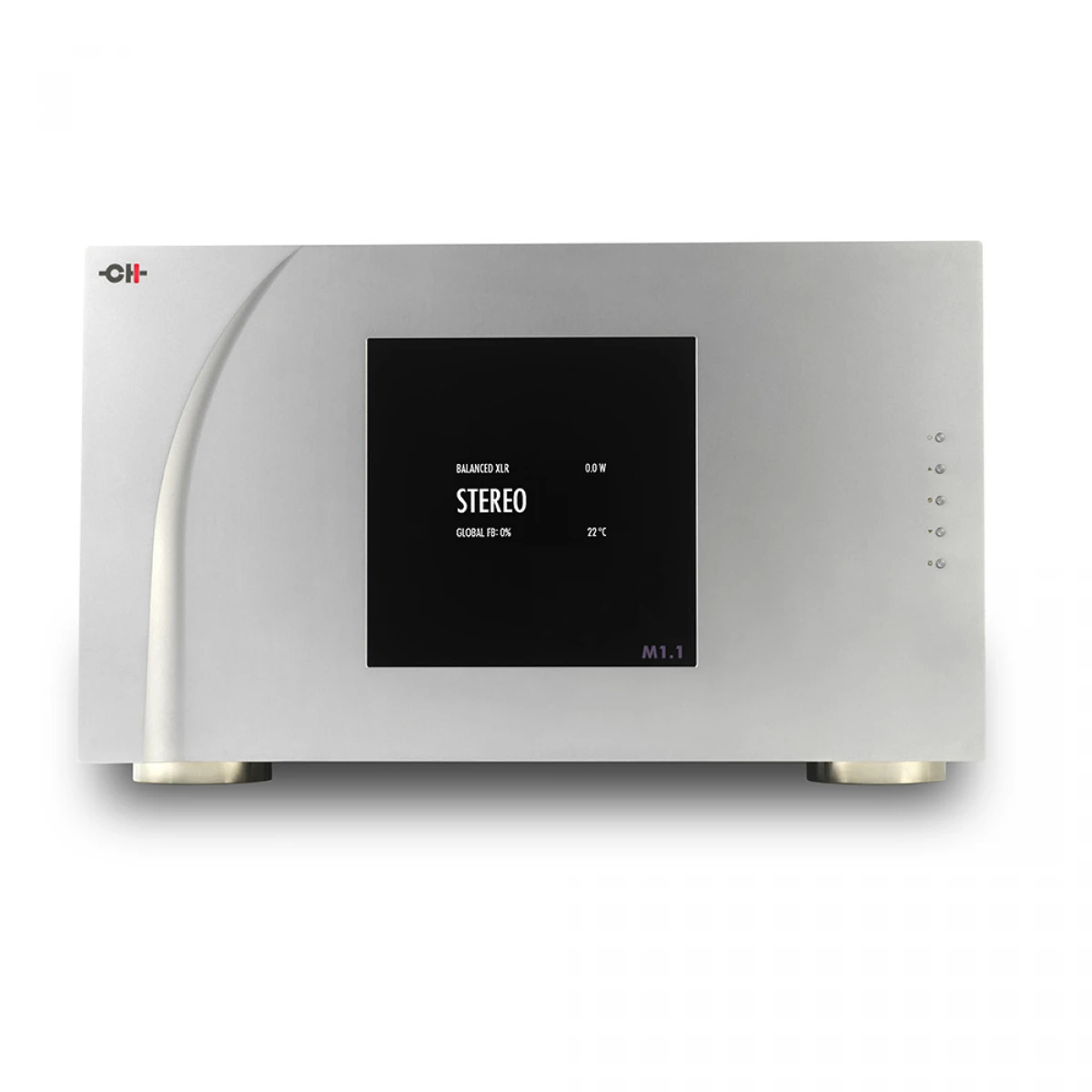

CH Precision M1.1
