Power amplifiers mono — Chord ULTIMA

Description, images, technical data and specifications

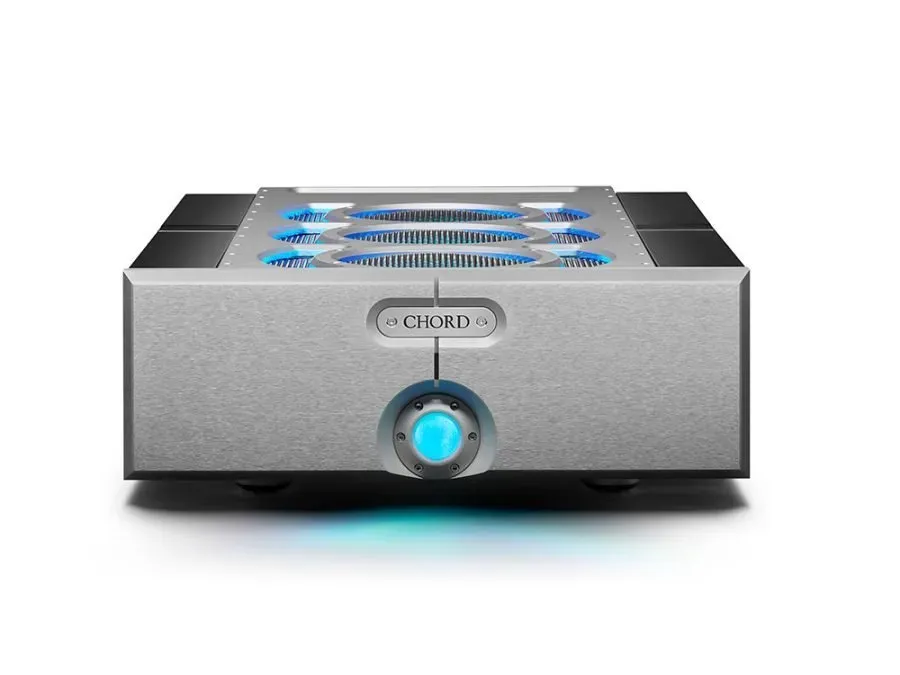

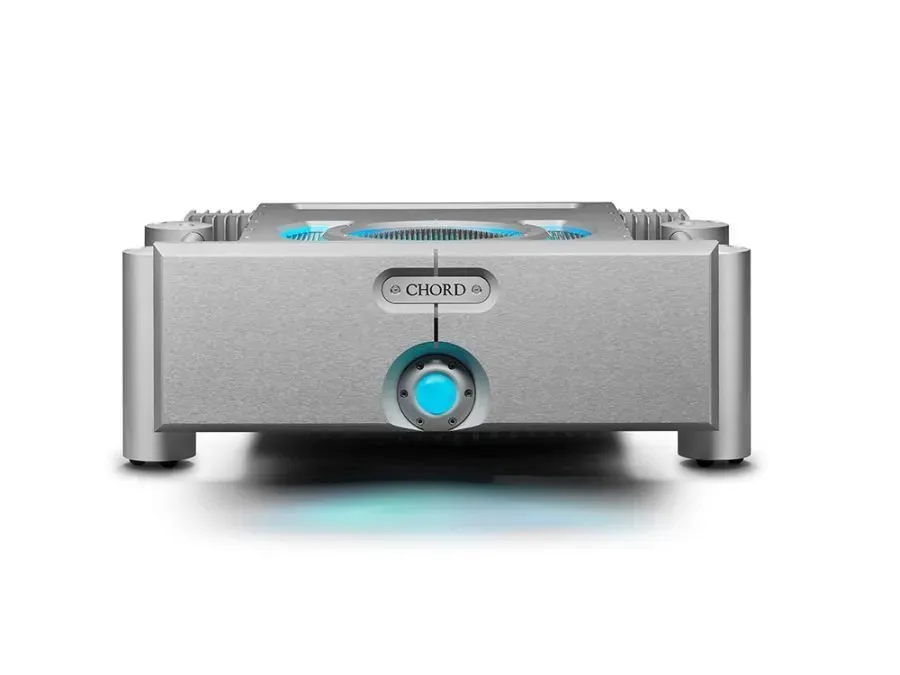

Chord ULTIMA
Image source — © Chord

The input stage is a fully symmetrical broadband voltage amplifier with a signal rise rate of 300 V/µs and a loopback feedback circuit for error correction. The output stage has 64 MOSFET field—effect transistors with a double substrate - they are custom-made for Chord Electronics and matched in pairs. The servo circuit monitors the absence of a constant component at the output and thermal compensation.

Specifications

  • Model name

    ULTIMA

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    100 000

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    0,04

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    780

  • Output power (4Ω) (W)

    1405

  • Gain (dBu)

    30

  • Frequency response low +/- 3dB (Hz)

    0,1

  • Frequency response high +/- 3dB (Hz)

    200 000

  • Signal to Noise Ratio (dB)

    90

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.005

  • Max power consumption (W)

    3500

  • Damping factor

    N/A

  • Dimensions (mm)

    305 x 480 x 750

  • Weight (kg)

    66,7
