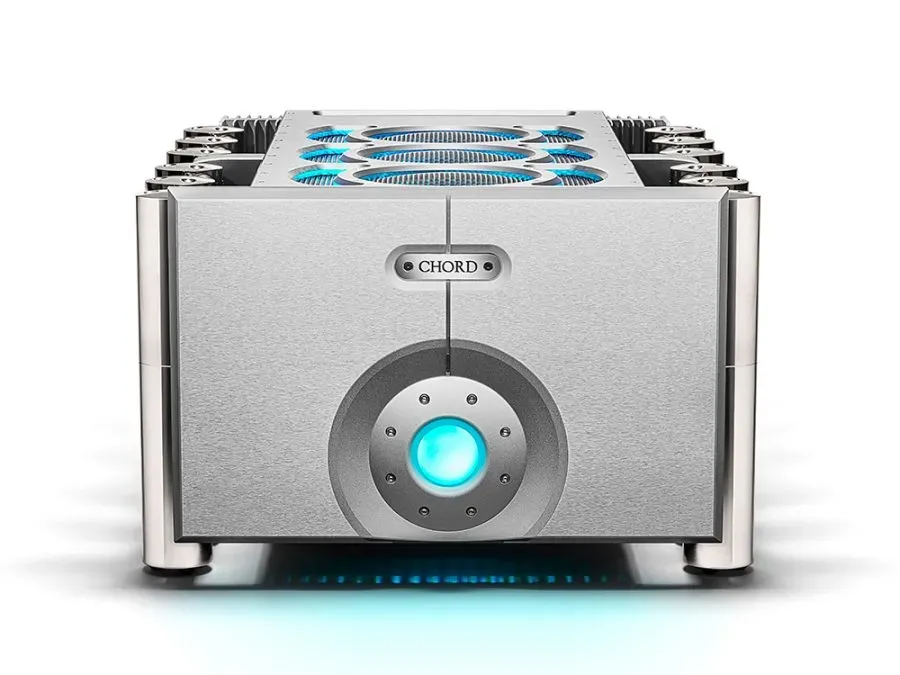

Chord ULTIMA 3
Image source — © Chord

Like all other components of the series, it is enclosed in an impressive metal case, the front panel of which is carved from a solid aluminum billet. The blue-lit window on the top panel allows you to see the entire contents of the amplifier, but you can turn off the backlight by pressing a special key located exactly in the middle of the facade.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    ULTIMA 3

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    100 000

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    0.04

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    480

  • Output power (4Ω) (W)

    1000

  • Gain (dBu)

    30

  • Frequency response low +/- 3dB (Hz)

    0.1

  • Frequency response high +/- 3dB (Hz)

    200 000

  • Signal to Noise Ratio (dB)

    84

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.005

  • Max power consumption (W)

    2500

  • Damping factor

    N/A

  • Dimensions (mm)

    180 x 480 x 360

  • Weight (kg)

    22.4

  • Official link

    https://chordelectronics.co.uk/product/ultima3

Chord ULTIMA 2

More components

  • ULTIMA

    Power amplifiers mono

    Chord ULTIMA

    The input stage is a fully symmetrical broadband voltage amplifier with a signal rise rate of 300 V/µs and a loopback feedback circuit for error correction. The output stage has 64 MOSFET field—effect transistors with a double substrate - they are custom-made for Chord Electronics and matched in pairs. The servo circuit monitors the absence of a constant component at the output and thermal compensation.

  • ULTIMA 2

    Power amplifiers mono

    Chord ULTIMA 2

    The ULTIMA 2 are more compact monoblocks that continue the new circuit solutions pioneered in the grandiose Ultima Chord. The Ultima 2 power amplifiers offer the music lover tremendous dynamics and high power (750 watts at 8 ohms and 1305 watts at 4 ohms) using brand new advanced amplification circuits not available from other manufacturers.
