Integrated amplifiers — Gryphon Audio DIABLO 120
Description, images, technical data and specifications
Gryphon Audio DIABLO 120
Image source — © Gryphon Audio
Optionally, you can install a DAC board that accepts signals via AES-EBU or SDPIF — up to 32 bit/ 192 kHz, via USB from a computer — up to DSD 512 (128 on Mac and 512 on Windows) and PCM 32 bit/384 kHz. However, it will not be possible to install an optional MM/MC phono corrector at the same time as the DAC module.
Specifications
Model name
DIABLO 120
Type
Integrated Amplifier
Analog inputs (balanced)
1
Analog inputs (single-ended)
3 + 1 (Phono)
Input sensitivity (mV)
390
Input impedance (balanced) (Ω)
40 000
Input impedance (single-ended) (Ω)
8 000
Output impedance (balanced) (Ω)
0.019
Output impedance (single-ended) (Ω)
0.019
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
2 x 120
Output power (4Ω) (W)
N/A
Gain (dBu)
38
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
<1
Damping factor
N/A
Dimensions (mm)
480 x 235 x 460
Weight (kg)
38.1
Official link
More components
Integrated amplifiers

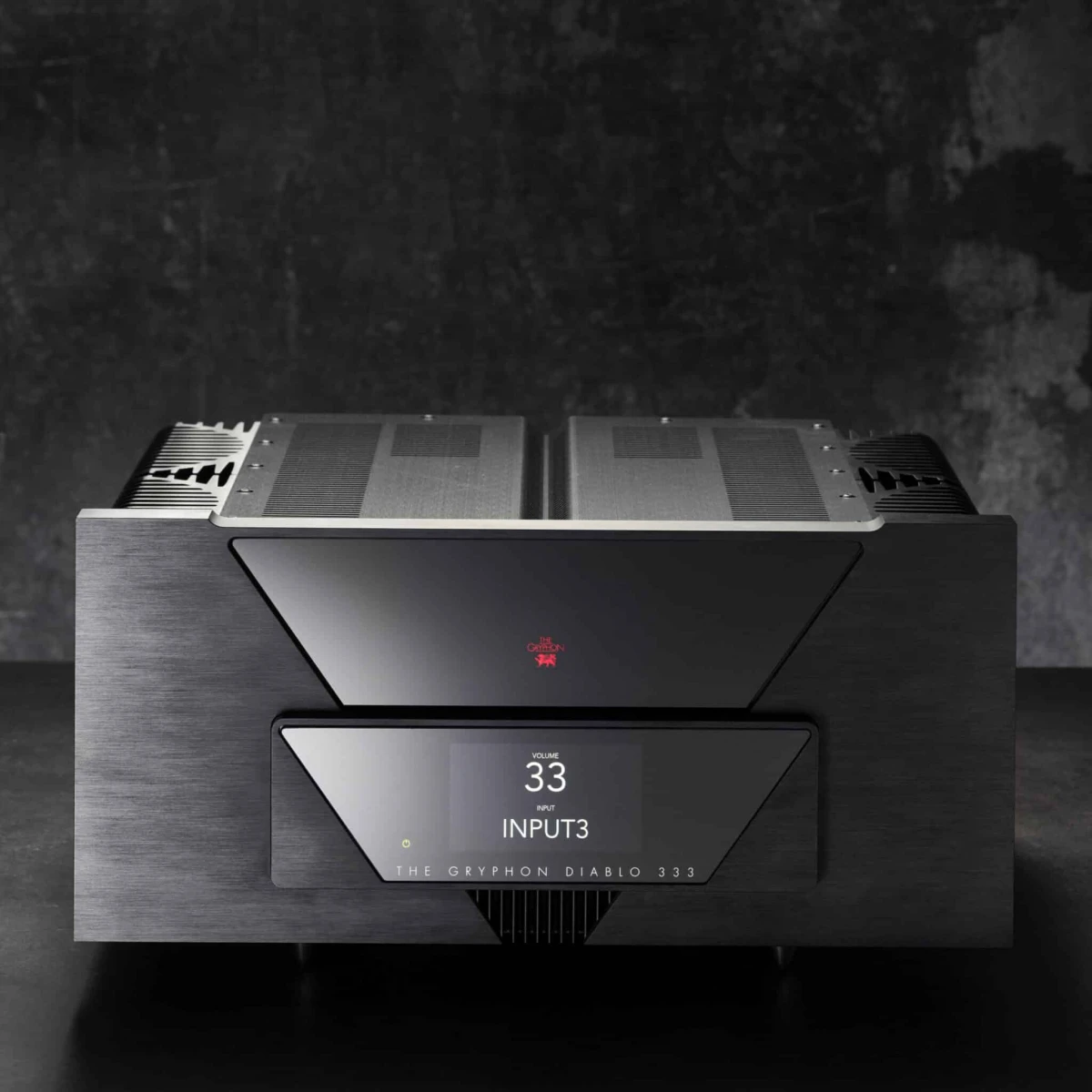

Gryphon Audio DIABLO 333
