Hifiverse

Integrated amplifiers — Gryphon Audio DIABLO 333

Description, images, technical data and specifications

Gryphon Audio DIABLO 333
Image source — © Gryphon Audio

The new Gryphon DAC-3 digital-to-analog module in this model is based on the Sabre ES9039PRO DAC chip from ESS Technology. Seven user–selectable digital PCM filters are implemented here, as well as a full range of digital inputs - USB-B, AES/EBU, coaxial BNC and optical Toslink.

Specifications

  • Model name

    DIABLO 333

  • Type

    Integrated Amplifier with DAC

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    2

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    50 000

  • Input impedance (single-ended) (Ω)

    30 000

  • Output impedance (balanced) (Ω)

    0,015

  • Output impedance (single-ended) (Ω)

    0,015

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    2 x 333

  • Output power (4Ω) (W)

    2 x 666

  • Gain (dBu)

    38

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    468 x 472 x 245

  • Weight (kg)

    50.6

  • Official link

    https://gryphon-audio.dk/the-collection/integrated-amplifiers/diablo-333/

Gryphon Audio DIABLO 120

More components

  • DIABLO 120

    Integrated amplifiers

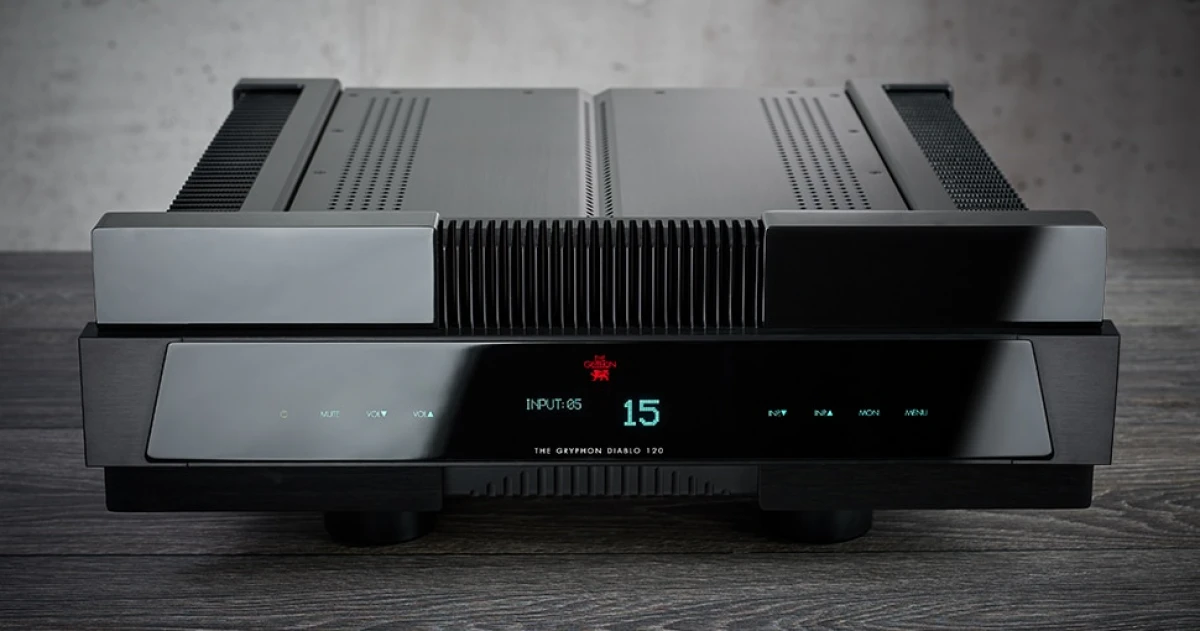

    Gryphon Audio DIABLO 120
