Integrated amplifiers — AVM AS 30.3

Description, images, technical data and specifications

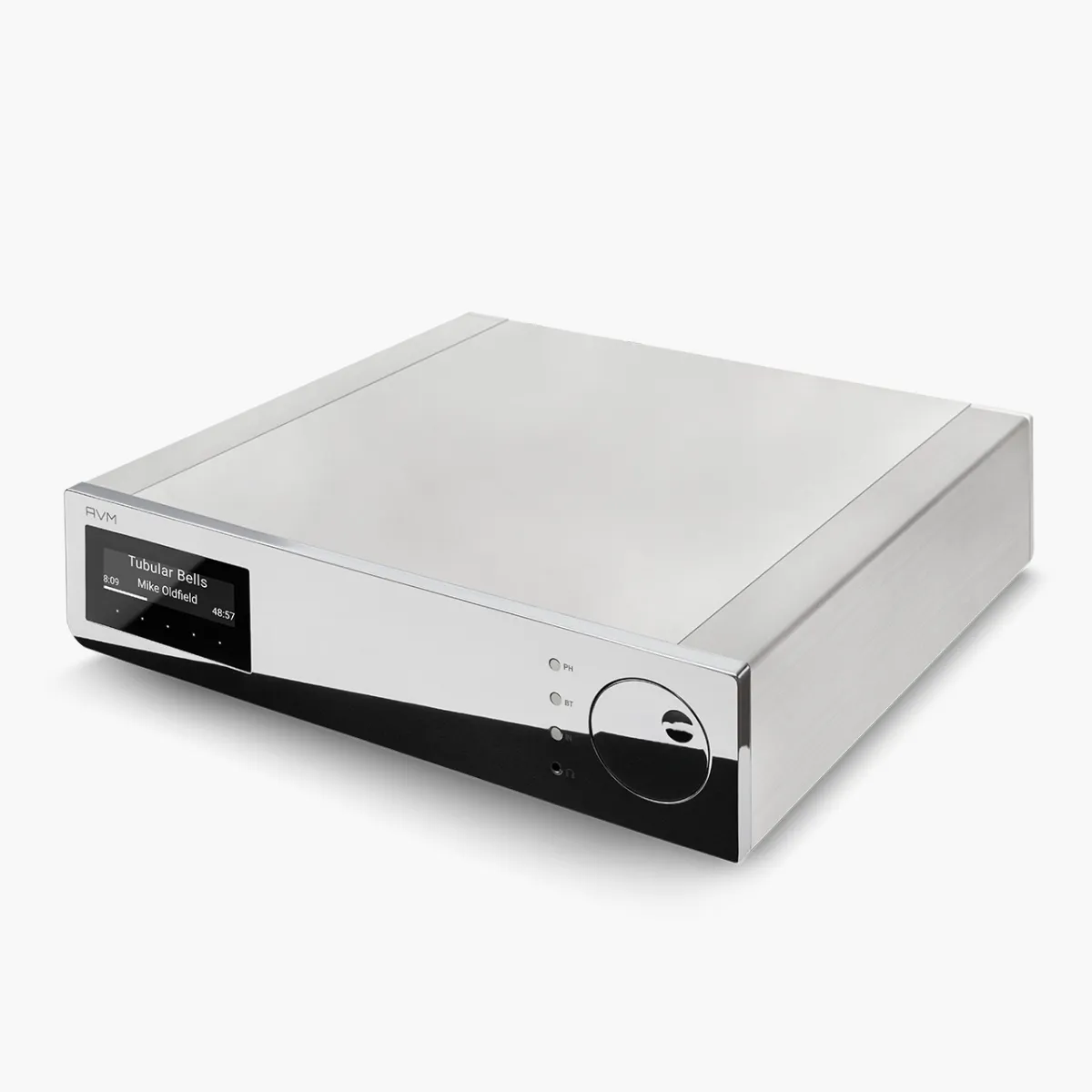

AVM AS 30.3
Image source — © AVM

2 x 125W Integrated Streaming Amplifier with X-STREAM Engine®, MM/MC Background input, HDMI ARC, Bluetooth, Spotify Connect, Tidal Connect, Qobuz, Roon Ready, UPNP, Internet Radio, Airplay2, RCX App for iOS and Android. The package includes an all-metal RC 3 remote control.

Specifications

  • Model name

    AS 30.3

  • Type

    Integrated Amplifier wuth DAC and Phono

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    2 + 1 (Phono)

  • Input sensitivity (mV)

    275

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    3400

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    470

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    N/A

  • Output power (4Ω) (W)

    2 x 125

  • Gain (dBu)

    30

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (dB)

    >95

  • Total Harmonic Distortion + Noise (%)

    < 0.005

  • Damping factor

    N/A

  • Dimensions (mm)

    430 x 115 x 320

  • Weight (kg)

    6.7

  • Official link

    https://avm.audio/masterpieces/avm30-as-30-3/
