Integrated amplifiers — AVM AS 2.3
Description, images, technical data and specifications
AVM AS 2.3
Image source — © AVM
AVM AS 2.3 - Streamer with integrated 2 x 140W amplifier - X-STREAM Engine® for HiRes streaming, including DSD (256), controlled via the RC X App - Prepared for Spotify Connect, QOBUZ, TIDAL Connect, HiResAudio, Webradio - High-performance Phono Input (MM & MC) - HDMI (ARC) input - Airplay 2 - Roon Ready - Bluetooth 5.0.
Specifications
Model name
AS 2.3
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2 + 1 (Phono)
Input sensitivity (mV)
275
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
3400
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
470
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
N/A
Output power (4Ω) (W)
2 x 140
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
80 000
Signal to Noise Ratio (dB)
>95
Total Harmonic Distortion + Noise (%)
< 0,005
Damping factor
N/A
Dimensions (mm)
340 x 92 x 325
Weight (kg)
7.1
Official link
More components
Integrated amplifiers

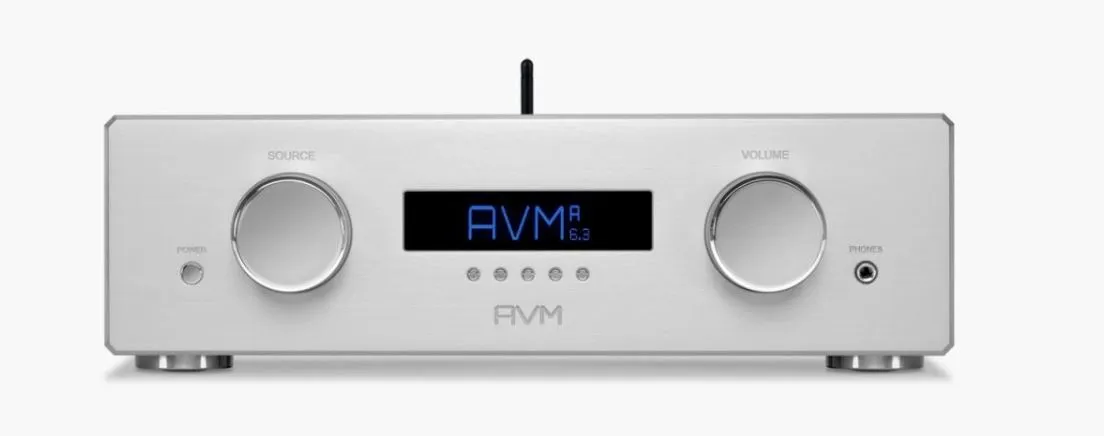

AVM Ovation A 6.3
Integrated amplifiers
AVM Ovation A 8.3
Integrated amplifiers

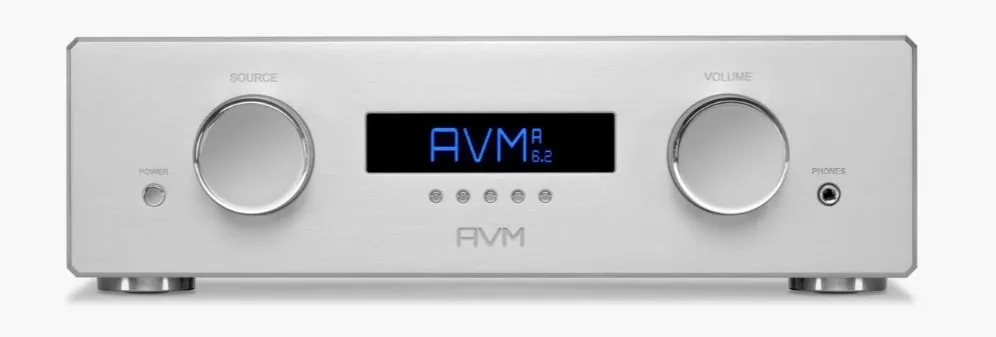

AVM Ovation A 6.2
Integrated amplifiers

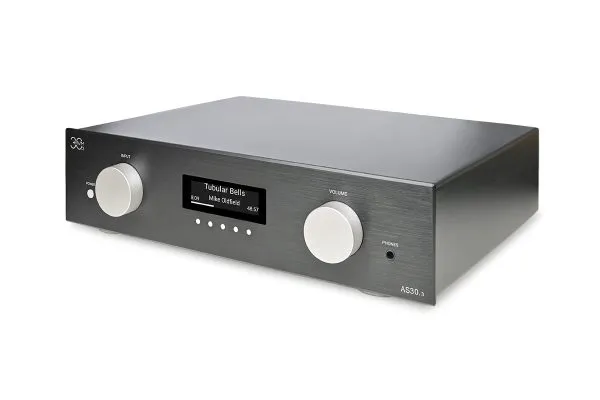

AVM AS 30.3
