The speakers can be paired with Bass Towers subwoofer modules and EBSA amplification. The PBN Audio Montana MR!777 has a frequency response of 20-20,000 Hz with an error of 1 dB, a sensitivity of 95 dB and a resistance of 4 ohms (minimum 2.5 ohms).

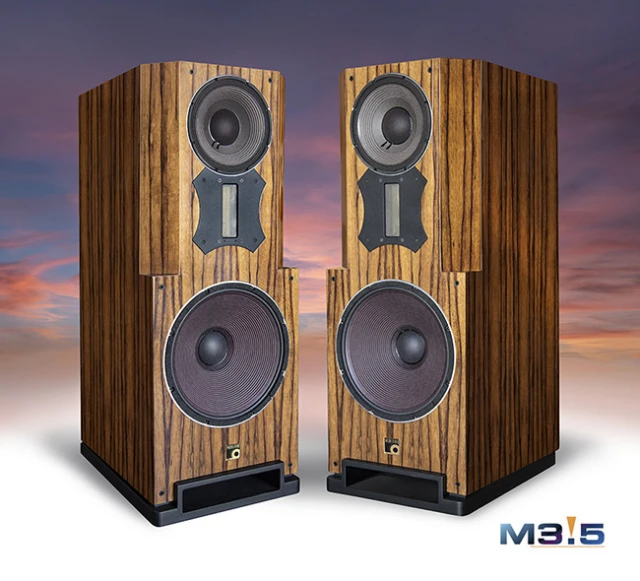

PBN Audio M3!5 guarantees a large-scale "life-size" sound. The woofers and midrange use a pair of classic JBL drivers in 18' and 12' sizes (with paper diffusers and soft suspensions). The latest ribbon tweeter is now responsible for HF.
In this model, all radiators are manufactured by JBL. Two powerful 381 mm woofers have an effective low-loss magnetic system (Symmetrical Field Geometry technology) that provides powerful, smooth and deep bass, generally characteristic of the Montana speaker, the coaxial midrange/treble driver is loaded on a short horn.
The PBN Audio M1!5 is an floorstanding loudspeaker with a two-band design and a frequency range from 30 Hz to 25,000 Hz.
PBN Audio M0!5 is a floorstanding loudspeaker designed for rooms of relatively modest size. The following drivers are located inside: 2 x 203 mm compression drivers (bass/midrange), 1 x 76 mm ribbon driver.

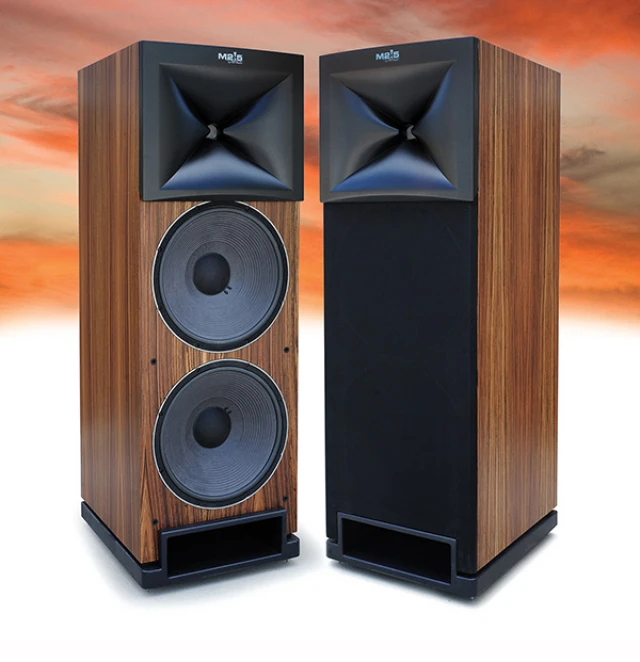

PBN Audio MR!The X is a speaker system that combines classic vintage components with the best modern parts. This model uses a 2360 biradial horn, a 2452 SLH compression driver with an Aquaplas-coated diaphragm, and an 18-inch 2268-H woofer.

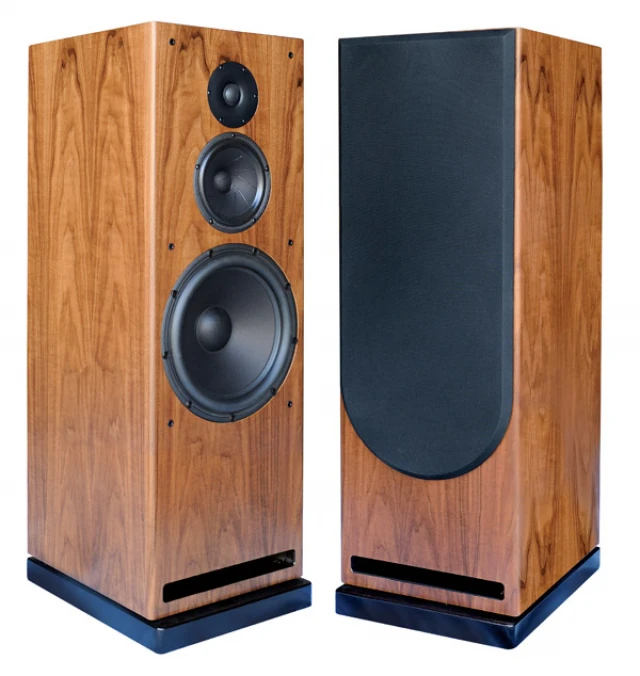

Replication of classic 1970s three-way phase inversion speakers based on carefully restored and improved 14" Aquaplas coated bass drivers. The medium frequencies are reproduced by a domed 3" midrange emitter with a powerful ceramic magnet, and a 1" tweeter with a beryllium dome operates in the high frequency range.

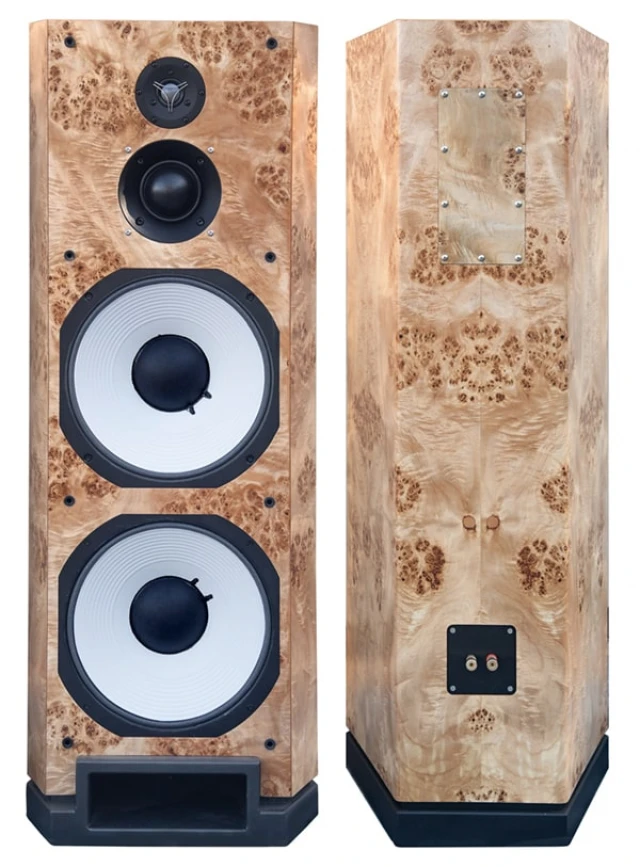

The following drivers are installed in this model: 2 x 254 mm LE10H1 compression drivers (bass), 1 x 76 mm Satori dome compression driver (midrange), 1 x 25 mm SB ring tweeter with beryllium dome.
ScanSpeak B1371 is a self—made speaker kit from PBN Audio. Drivers: D2908/714000 — high-power 8-ohm 1-inch tweeter with beryllium dome, Revelator 18M/4631T00 — midrange driver with sliced paper cone technology and patented symmetrical drive, Revelator 32W/4878T01 — powerful bass driver with 3-inch sound coil and low resonant frequency.
