Floorstanding loudspeakers — Pbn Audio STUDIO REFERENCE 14

Description, images, technical data and specifications

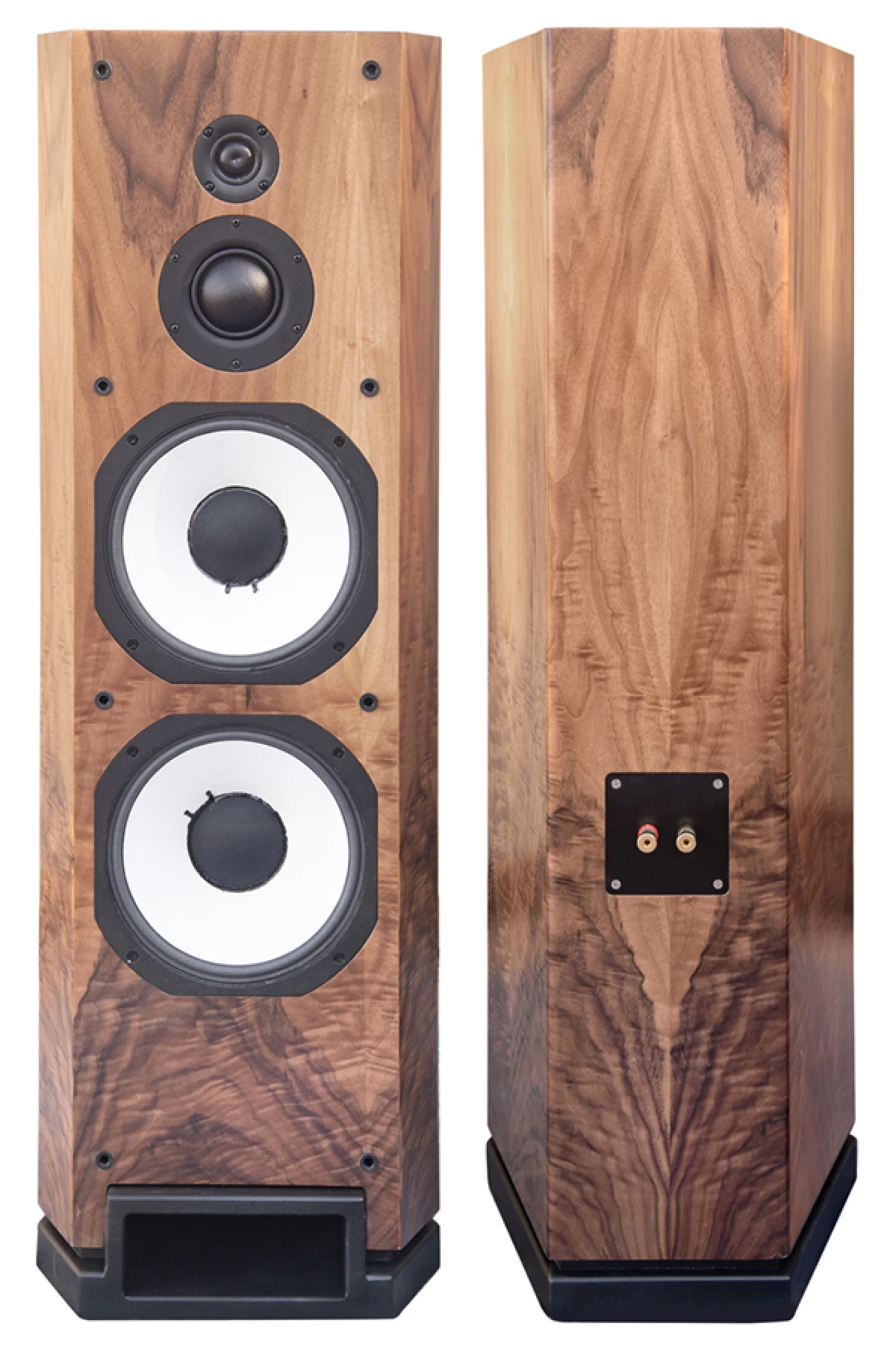

Pbn Audio STUDIO REFERENCE 14
Image source — © Pbn Audio

Replication of classic 1970s three-way phase inversion speakers based on carefully restored and improved 14" Aquaplas coated bass drivers. The medium frequencies are reproduced by a domed 3" midrange emitter with a powerful ceramic magnet, and a 1" tweeter with a beryllium dome operates in the high frequency range.

Specifications

  • Model name

    STUDIO REFERENCE 14

  • Frequency Response low +/- 3dB (Hz)

    30

  • Frequency Response high +/- 3dB (Hz)

    40 000

  • Sensitivity (dB at 1 W/1m)

    93

  • Impedance (Ohms)

    4

  • Power amplifier requirements (W)

    N/A

  • Has internal amplification

    N/A

  • Internal amplification power (W)

    N/A

  • Size (sm)

    43.18 × 45.7 × 119.3

  • Weight (kg)

    83.9

  • Official link

    https://pbnaudio.com/studio-reference-14-loudspeaker/
