Mark Levinson

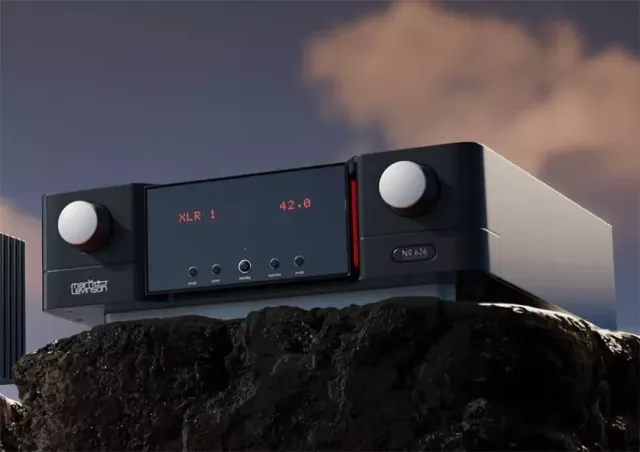

The Mark Levinson No.626 preamp is made in the "dual mono" concept. The Precision Link III DAC is responsible for processing digital signals here, which supports decoding digital streams in PCM format with parameters up to 32 bits/384 kHz and native DSD received via six digital inputs.

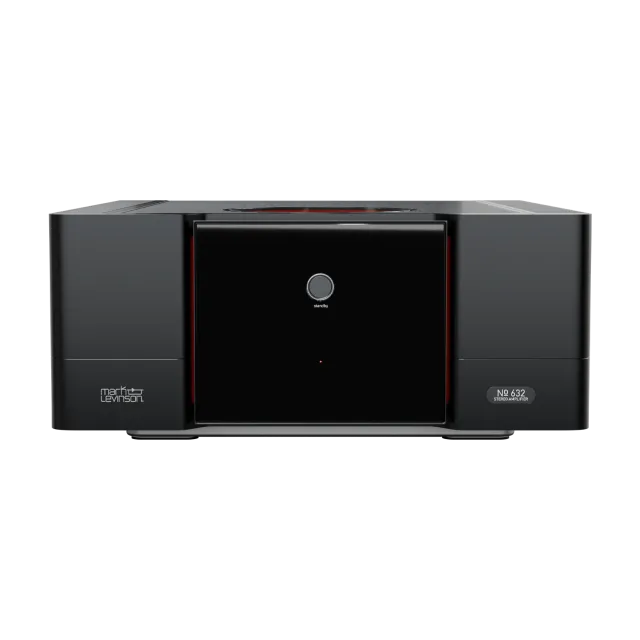

The output stages of both the Mark Levinson No.632 stereo power amplifier and the Mark Levinson No.631 monoblocks operate in A/AB classes. The new products are made in fully balanced Pure Path circuitry and are equipped with powerful power supplies with toroidal transformers.

The Mark Levinson No.631 amplifier is made in a vertical housing with a height of just under 53 cm. Like the other components in the series, its body is made of anodized black aluminum. There is a glass central element with red backlight on the sides on the front panel, and a glass Core element with red accent lighting on the upper wall.

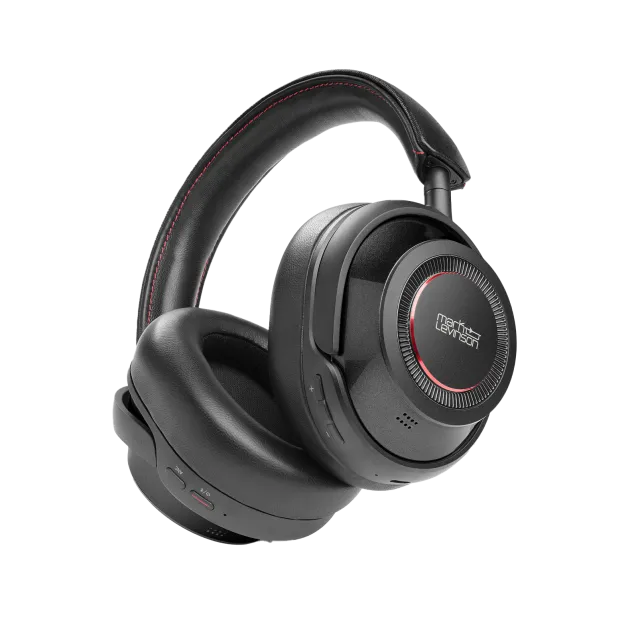

Model No. 5909 is equipped with 40mm beryllium-coated speakers, the cases are made using the best natural materials by specialists who guarantee high quality standards for Mark Levinson vinyl turntables and amplifiers.

Mark Levinson No. 519 runs on its own OS build, Precision Stream Linux, uses a 1 GHz ARM Cortex A8 Sitara processor, 4 GB of RAM and another 4 GB of flash memory are installed. The DAC chip is the ESS Sabre32 Reference.

The Mark Levinson Precision Link II proprietary DAC is based on a 32-bit ESS PRO Sabre chip with a jitter elimination circuit and a fully balanced discrete current-to-voltage converter.

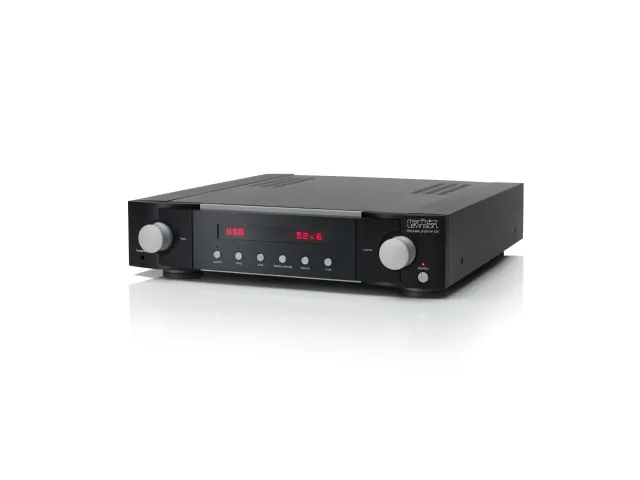

Mark Levinson No. 526 is a pre–amplifier built according to the dual mono scheme and equipped with 12 inputs, an analog circuit with Pure Path technology, an integrated class A phono corrector with a Pure Phono output stage, and a 32-bit precision DAC circuit. As well as customizable balanced and unbalanced inputs.​ ​and a headphone output for the Main Drive Headphone.

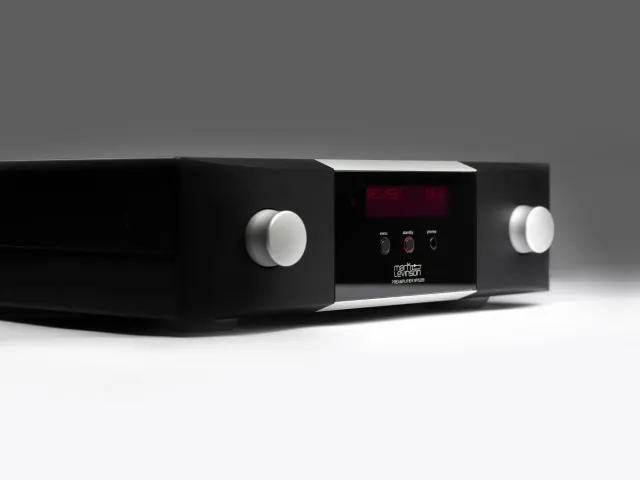

The Mark Levinson No. 5206 preamp is equipped with a high-quality phono corrector for working with pickup heads with both a movable magnet (MM) and a movable coil (MC). The phono corrector is implemented using a hybrid scheme combining a passive and active RIAA equalizer with precision resistors and polypropylene capacitors.

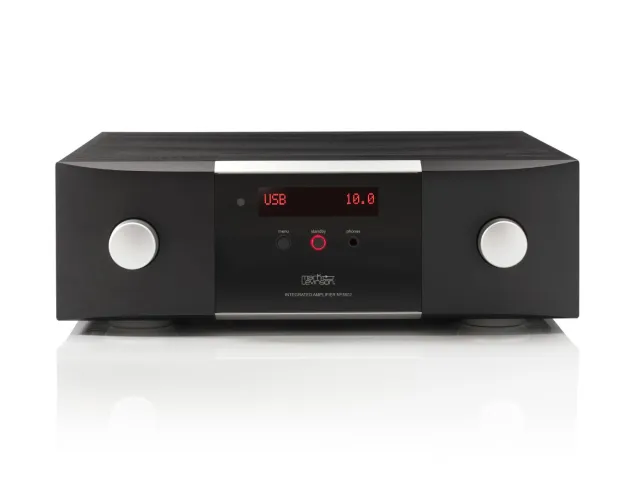

The Mark Levinson model No. 5802 completely repeats the No. 5805 amplifier in all respects, as far as the preamp, power amplifier and integrated digital-to-analog converter are concerned. However, there are also very significant differences. In particular, the new Mark Levinson No. 5802 is designed to work exclusively with digital sources.

The ML-50 amplifiers operate in Class A and are capable of delivering 20 watts at a resistance of 8 ohms. The rated power in class AB is 425 watts.

Monophonic POWER amplifier No. 536 contains 12 discrete bipolar output transistors TO-264 15 A, 260 V, 200 W per output stage (24 in total); and 12 discrete bipolar transistors TO-220 230 V, 70 MHz per output stage (one for each output transistor, 24 in total). Its power supply contains eight discrete high-speed Schottky rectifier diodes TO-220 40 A, 250 V per output stage (16 in total) and 18 filter capacitors per output stage (36 in total), which eventually gives a capacity of 169,200 UF.

The dual mono amplifier No. 534 contains 12 discrete bipolar output transistors TO-264 15 A, 260 V, 200 W per channel (24 in total); and 12 discrete bipolar transistors TO-220 230 V, 70 MHz per channel (one for each output transistor, 24 in total). Its power supply contains eight discrete high-speed TO-220 Schottky rectifier diodes of 40 A, 250 V per channel (16 in total) and 18 filter capacitors per channel (36 in total), which eventually gives a capacity of 118,800 UF.

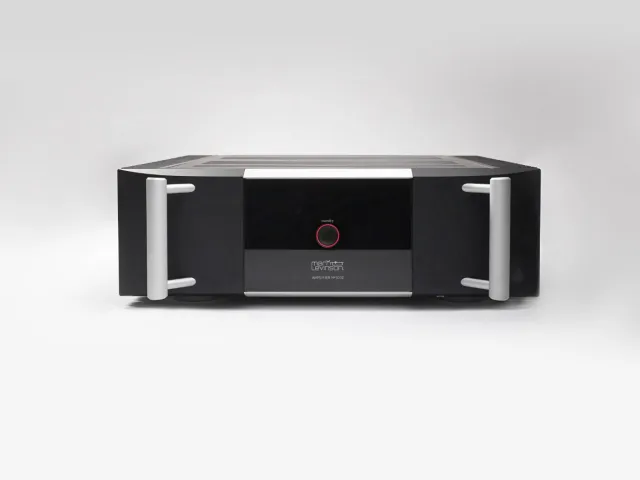

The Mark Levinson No. 5302 power amplifier is made entirely on discrete elements. The power supply unit has a 1100 VA power transformer with separate secondary windings for the right and left gain channels. Four capacitors with a capacity of 10,000 UF are installed in the power filter of each channel.

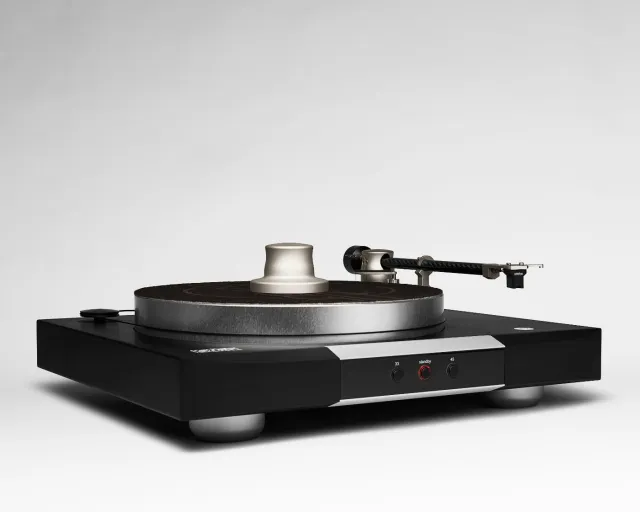

The body of the model is made of 1-inch-thick aluminum with black anodizing, and there is a tinted glass display on the front panel. The classic hourglass-shaped Mark Levinson pen plays the role of a clamp here, and a custom-made tonearm with an aluminum base and carbon tube is made in the same style.
