Preamplifiers — Mark Levinson № 526
Description, images, technical data and specifications

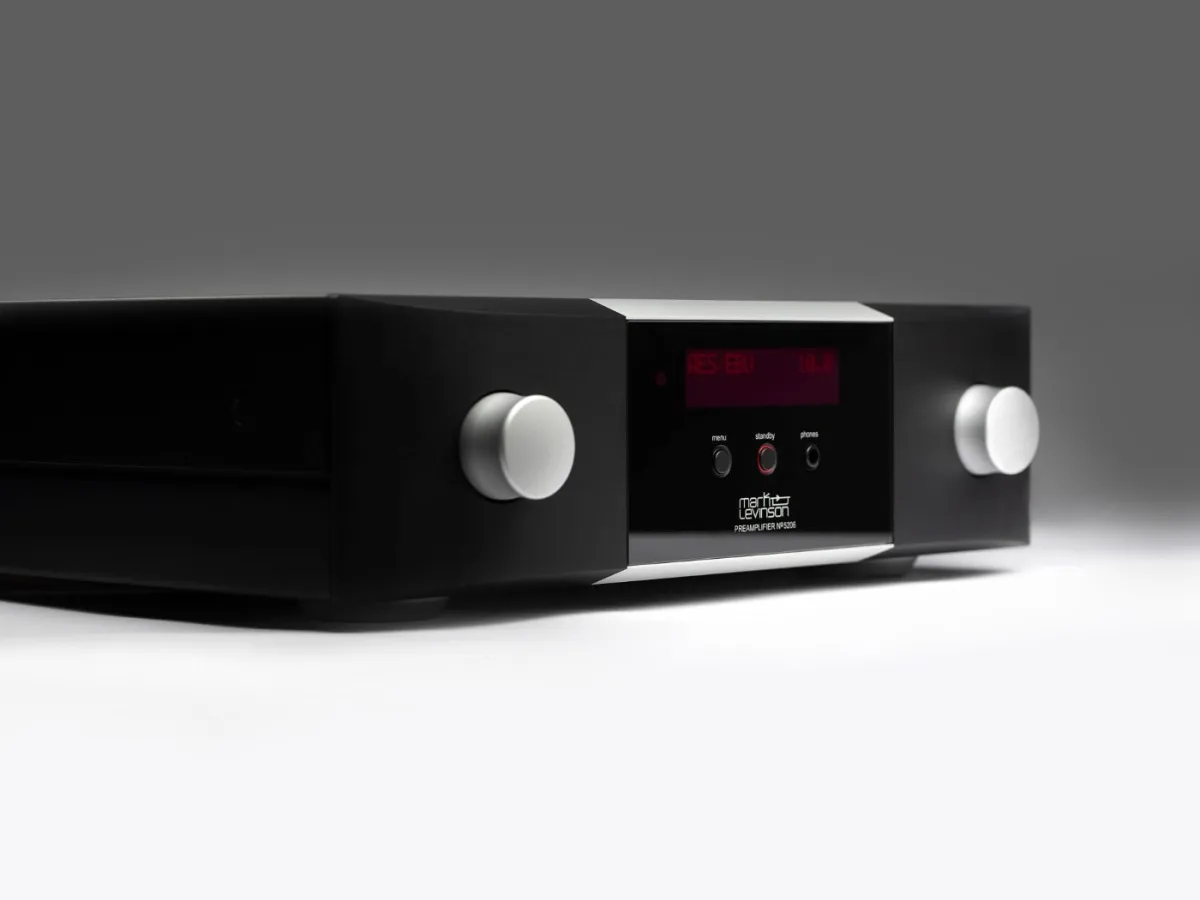

Mark Levinson № 526
Image source — © Mark Levinson
Mark Levinson No. 526 is a pre–amplifier built according to the dual mono scheme and equipped with 12 inputs, an analog circuit with Pure Path technology, an integrated class A phono corrector with a Pure Phono output stage, and a 32-bit precision DAC circuit. As well as customizable balanced and unbalanced inputs. and a headphone output for the Main Drive Headphone.
Specifications
Model name
№ 526
Analog inputs (balanced)
2
Analog inputs (single-ended)
3
Analog outputs (balanced)
1
Analog outputs (single-ended)
1
Gain (dBu)
13,5
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
45 000
Input impedance (single-ended) (Ω)
45 000
Output impedance (balanced) (Ω)
160
Output impedance (single-ended) (Ω)
80
Maximum output level (balanced) (dBu)
22
Maximum output level (single-ended) (dBu)
11
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
0,4
Frequency response high +/- 3dB (Hz)
370 000
Signal to Noise Ratio (SNR, unweighted) (dB)
>115
Total Harmonic Distortion + Noise (THD+N) (%)
<0.003
Dimensions (mm)
95 × 438 × 457
Weight (kg)
18.6
Official link
