Power amplifiers stereo — Mark Levinson № 5302
Description, images, technical data and specifications
Mark Levinson № 5302
Image source — © Mark Levinson
The Mark Levinson No. 5302 power amplifier is made entirely on discrete elements. The power supply unit has a 1100 VA power transformer with separate secondary windings for the right and left gain channels. Four capacitors with a capacity of 10,000 UF are installed in the power filter of each channel.
Specifications
Model name
№ 5302
Input sensitivity (mV)
145
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
100
Output impedance (single-ended) (Ω)
50
Max current (A)
N/A
Output power (8Ω) (W)
2 x 135
Output power (4Ω) (W)
2 x 270
Gain (dBu)
25.8
Frequency response low +/- 3dB (Hz)
2
Frequency response high +/- 3dB (Hz)
80 000
Signal to Noise Ratio (dB)
>102
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.04
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
145 × 438 × 457
Weight (kg)
31.7
Official link
More components
Power amplifiers stereo

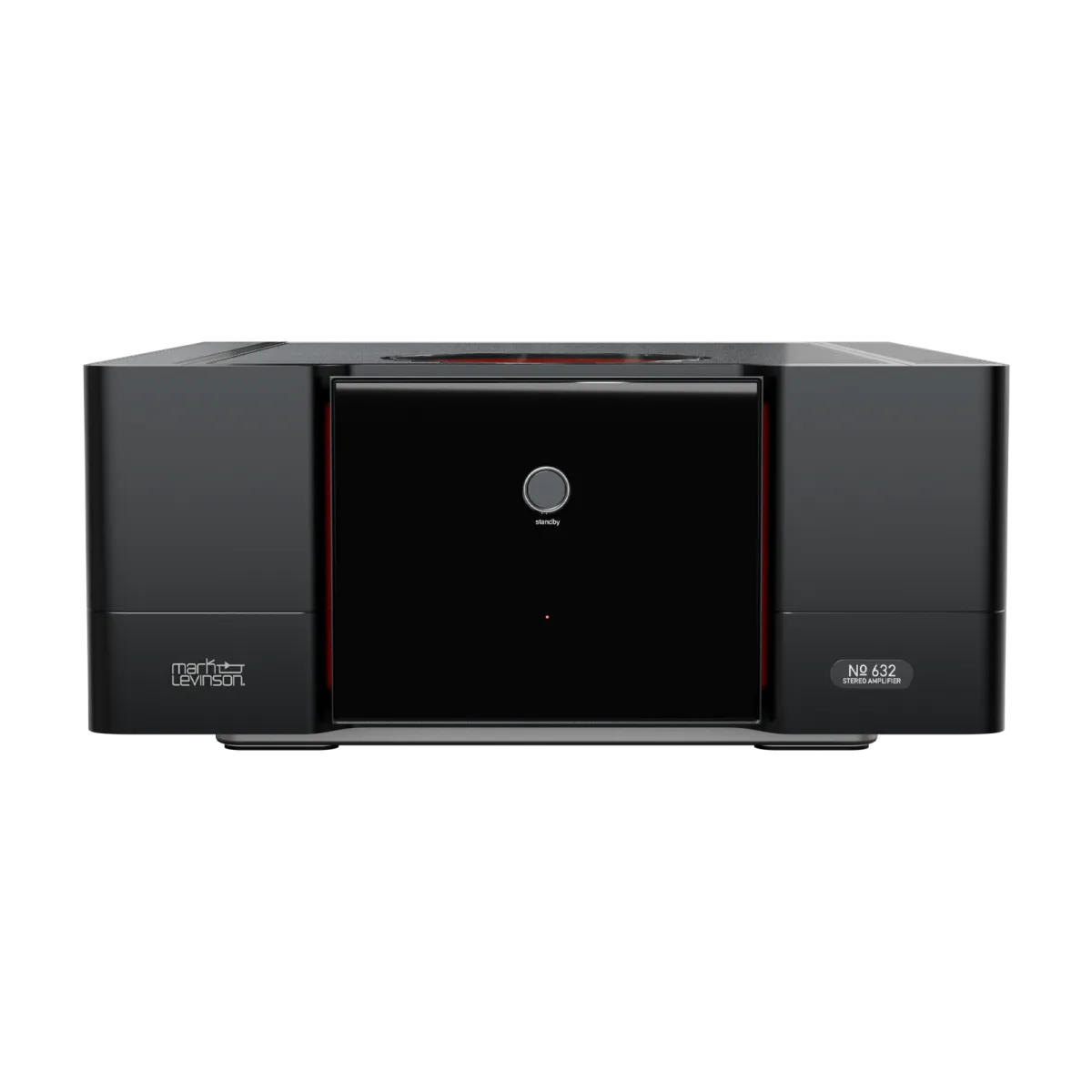

Mark Levinson № 632
