Mark Levinson № 536

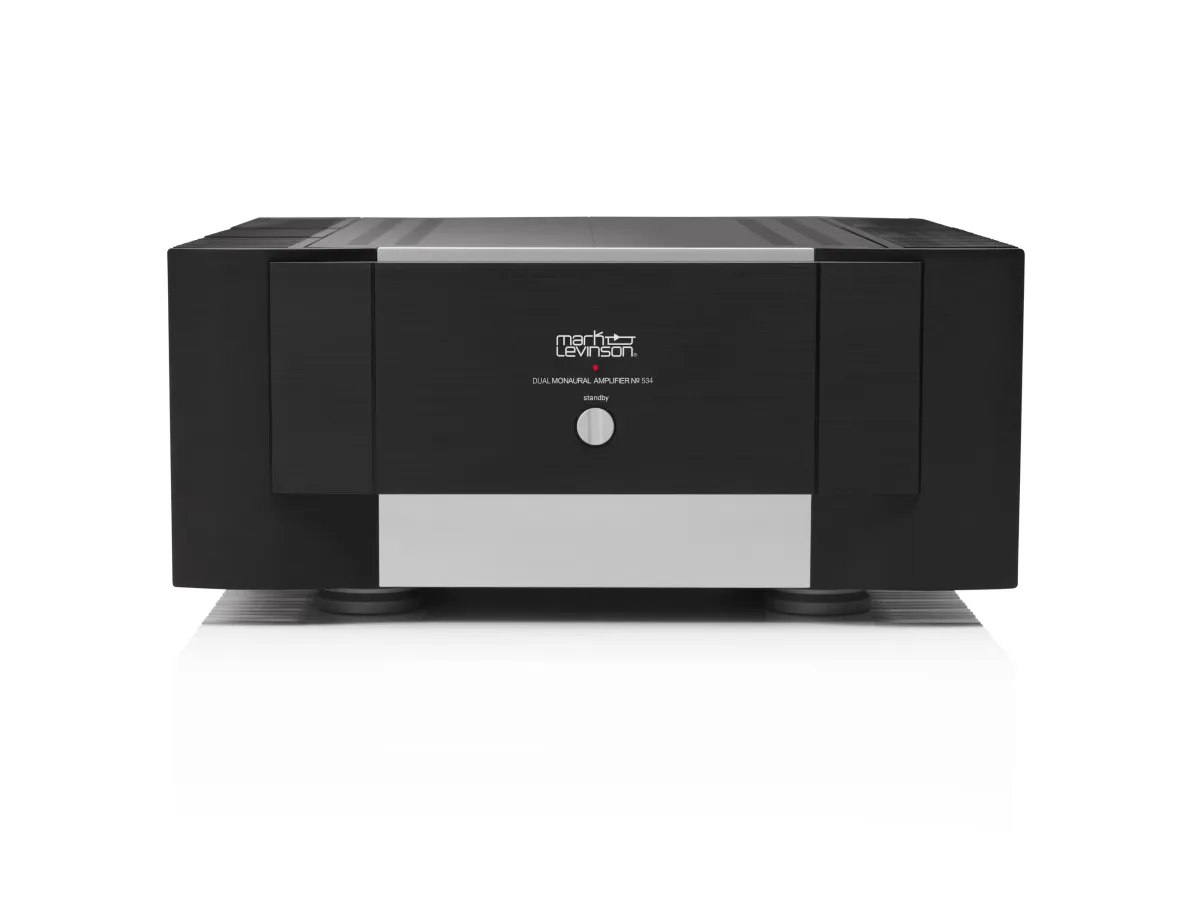

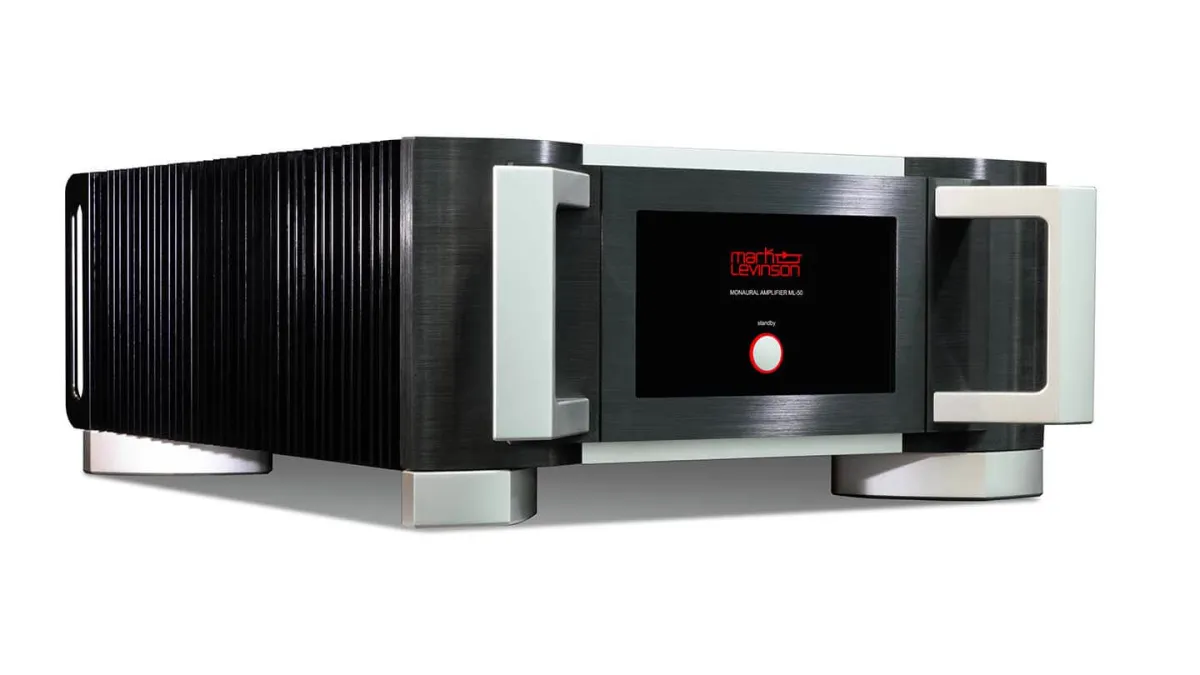

Image source — © Mark Levinson

Monophonic POWER amplifier No. 536 contains 12 discrete bipolar output transistors TO-264 15 A, 260 V, 200 W per output stage (24 in total); and 12 discrete bipolar transistors TO-220 230 V, 70 MHz per output stage (one for each output transistor, 24 in total). Its power supply contains eight discrete high-speed Schottky rectifier diodes TO-220 40 A, 250 V per output stage (16 in total) and 18 filter capacitors per output stage (36 in total), which eventually gives a capacity of 169,200 UF.

Specifications

  • Model name

    № 536

  • Input sensitivity (mV)

    2830

  • Input impedance (balanced) (Ω)

    60 000

  • Input impedance (single-ended) (Ω)

    30 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    400

  • Output power (4Ω) (W)

    800

  • Gain (dBu)

    26

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Signal to Noise Ratio (dB)

    >85

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    197 × 438 × 533

  • Weight (kg)

    45.4

  • Official link

    https://www.marklevinson.com/products/amplifiers/NO536-.html
