Preamplifiers — Mark Levinson № 5206

Description, images, technical data and specifications

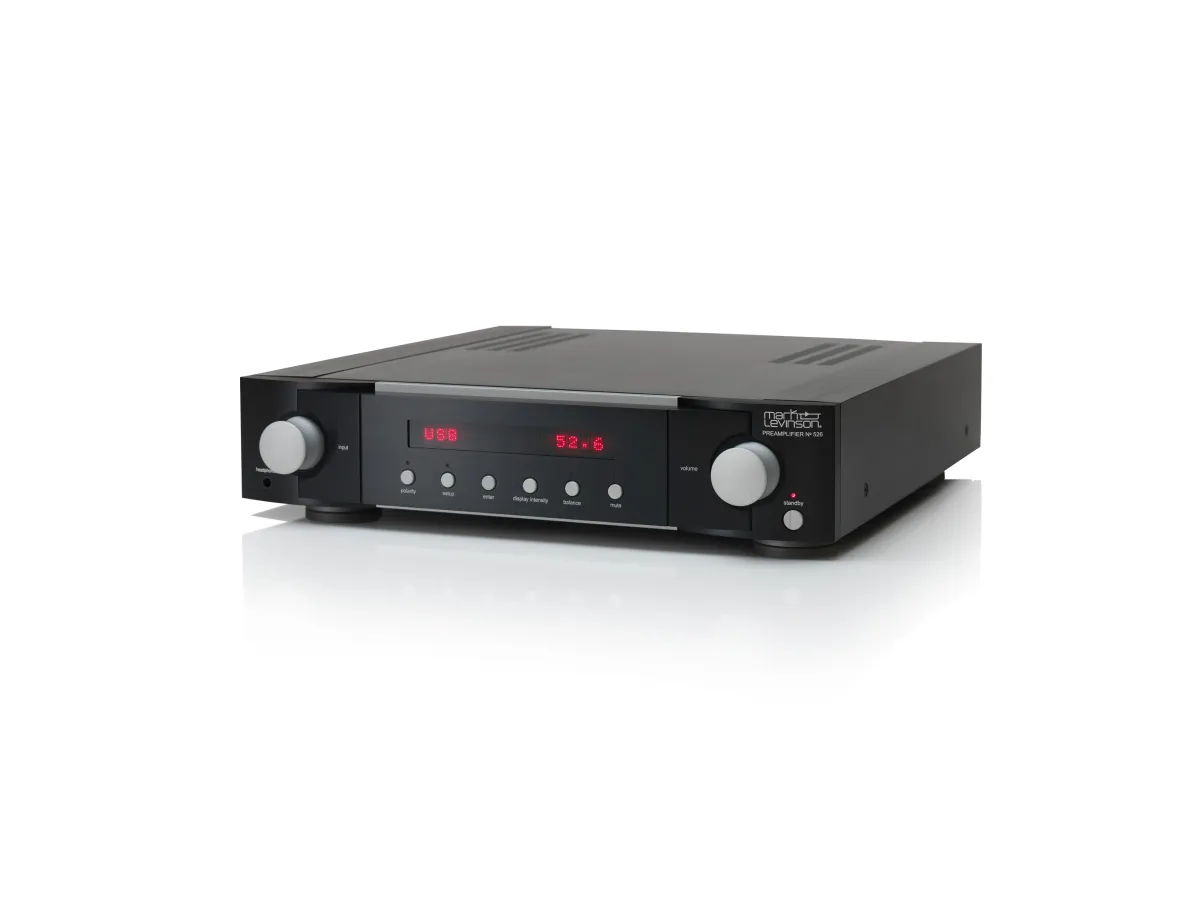

Mark Levinson № 5206
Image source — © Mark Levinson

The Mark Levinson No. 5206 preamp is equipped with a high-quality phono corrector for working with pickup heads with both a movable magnet (MM) and a movable coil (MC). The phono corrector is implemented using a hybrid scheme combining a passive and active RIAA equalizer with precision resistors and polypropylene capacitors.

Specifications

  • Model name

    № 5206

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    2 + 2 (Phono)

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    14 (XLR) + 8 (RCA)

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    2

  • Frequency response high +/- 3dB (Hz)

    250 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >93

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.003

  • Dimensions (mm)

    126 × 438 × 457

  • Weight (kg)

    15.4

  • Official link

    https://www.marklevinson.com/products/preamplifiers/NO5206-.html
