EAT E-Glo 2 – a tube phono preamplifier with backlight

30.11.2024 09:30 | ~1 minute read

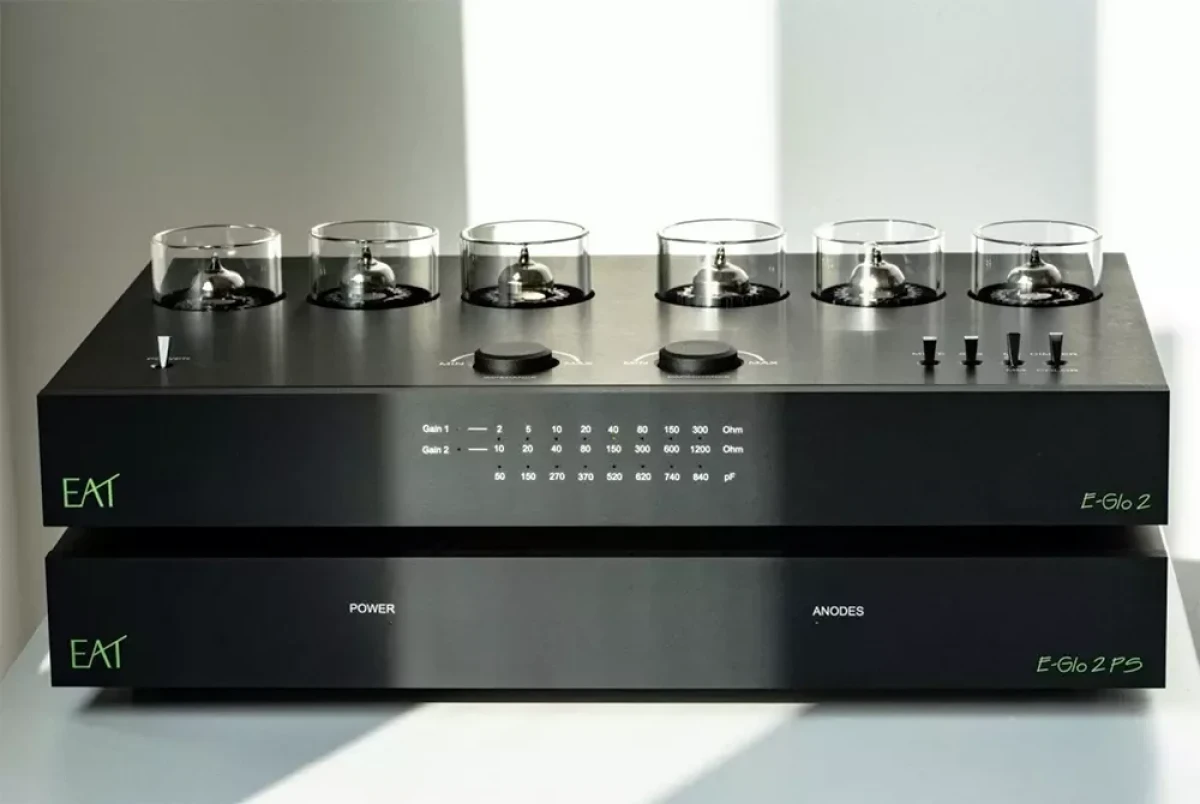

European Audio Team (EAT) has introduced the E-Glo 2 dual-block MM/MC tube phono preamplifier. An interesting feature of the device is the choice of color gamut of the backlight of the tubes located on the top panel of the device.

EAT E-Glo 2 – a tube phono preamplifier with backlight

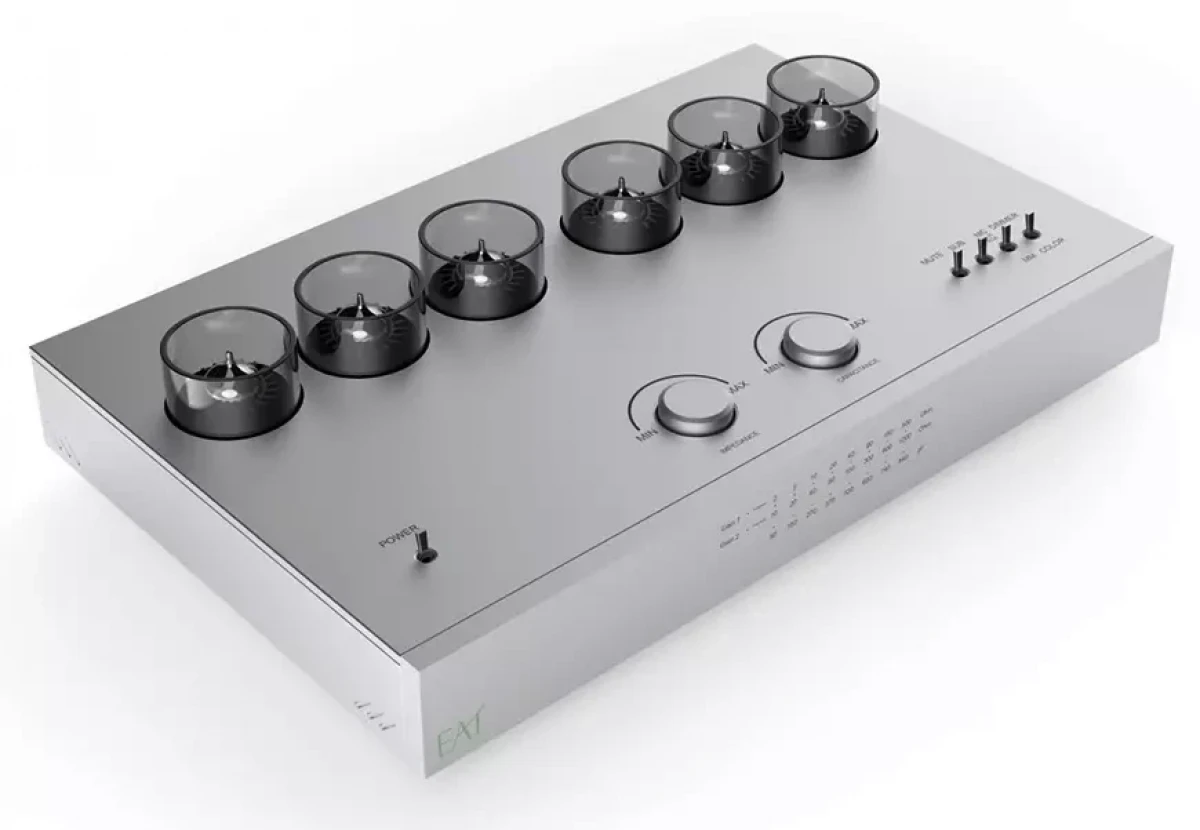

The EAT E-Glo 2 phono preamplifier is equipped with four ECC83 tubes and two ECC88 tubes. According to the manufacturer, the user can experiment with different compatible tubes, achieving a sound that matches his tastes to the maximum extent. The EAT E-Glo 2 phono preamplifier has a fully balanced input stage with a Lundahl LL1932 step-up transformer for the MC input. The transformer provides a gain of 45 dB, sufficient for working with moving coil (MC) heads. The equalization stage here is completely passive.

EAT E-Glo 2 – a tube phono preamplifier with backlight

According to the manufacturer, the phono preamplifier has a lower noise level than is usually achievable with tube phono preamplifiers. The EAT E-Glo 2 phono preamplifier circuit uses only high-quality components, such as Mundorf and WIMA capacitors.

EAT E-Glo 2 – a tube phono preamplifier with backlight

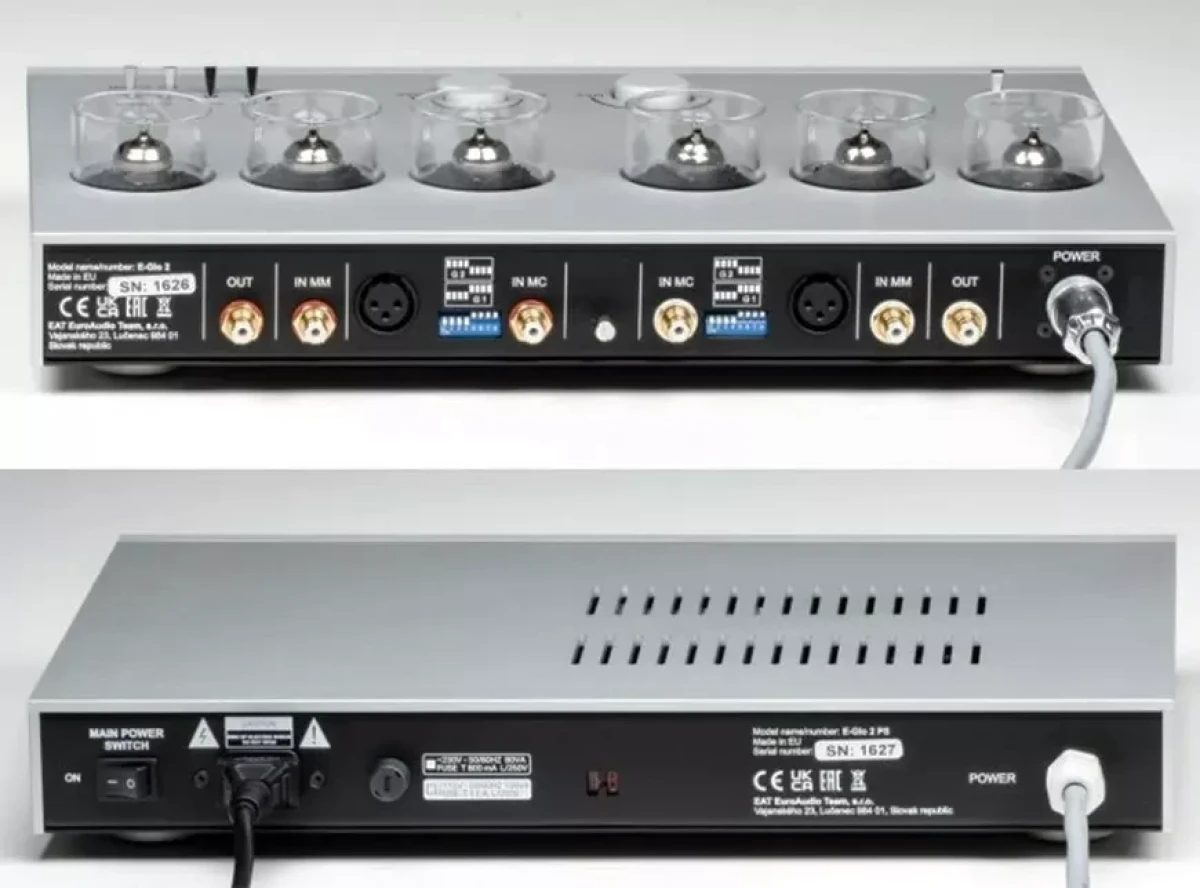

The EAT E-Glo 2 phono preamplifier power supply is housed in a separate case and is based on a toroidal transformer with double shielding. The power supply circuit uses low-noise resistors and high-quality capacitors for additional protection of the phono preamplifier from electromagnetic interference and interference. The EAT E-Glo 2 tube dual-block MM/MC phono preamplifier is now available at a recommended retail price of $9,999.

Specifications

This product is in the Hi-Fi and High End Electronics and Acoustics database

Phonostages — European Audio Team (EAT) E-Glo 2

  • Model name

    E-Glo 2

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    2

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    10, 20, 40, 80, 150, 300, 600, 1200

  • Output impedance (Ω)

    N/A

  • Gain (dB)

    N/A

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Total Harmonic Distortion + Noise (%)

    N/A

  • Dimensions (mm)

    395 × 86 × 262 + 395 × 61 × 280

  • Weight (kg)

    5.3 + 5.4

  • Official link

Image source - https://www.europeanaudioteam.com/en/eat-e-glo-ii-wp000112.html
