Phonostages — Bryston TF2-20
Description, images, technical data and specifications

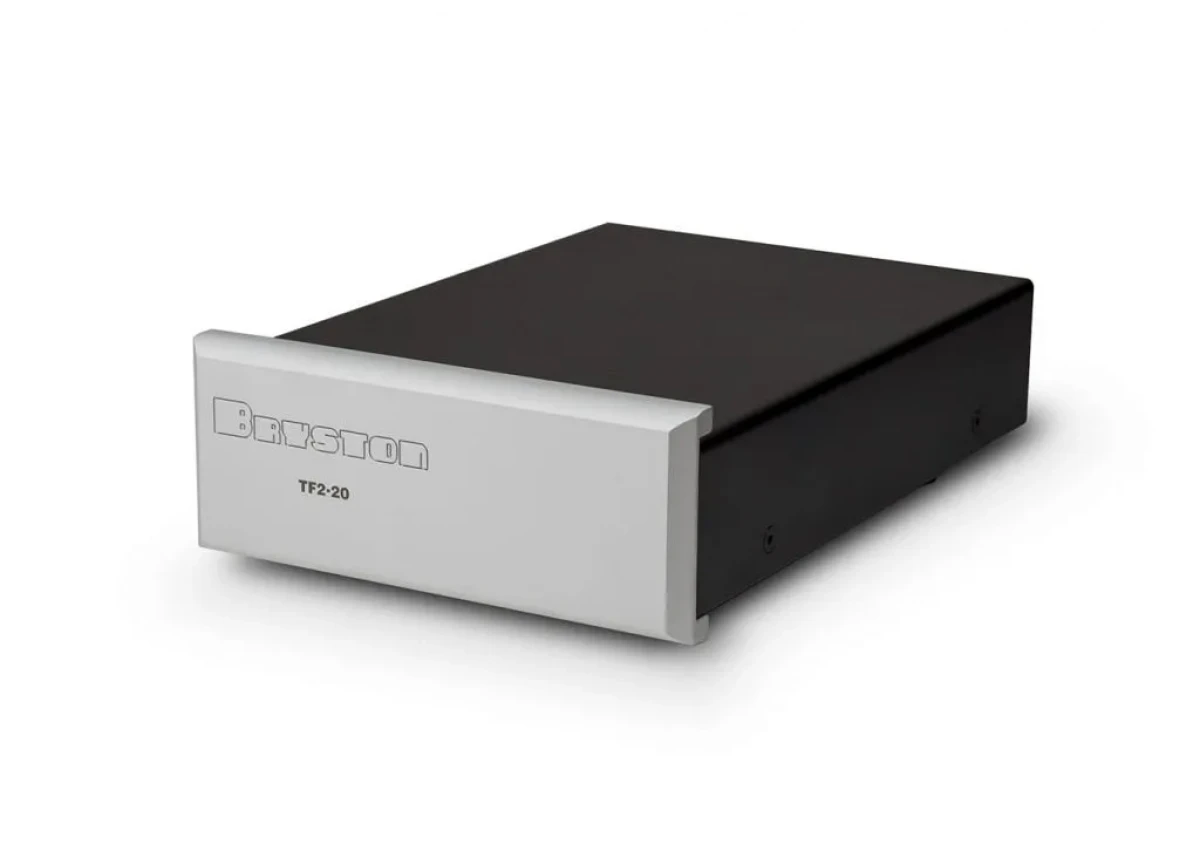

Bryston TF2-20
Image source — © Bryston
This device has the same housing as the BP-2 or BOT-1 and BUC-1 phono correctors and increases the output voltage to 3-6 mV, which will be enough for most MM-type phono correctors. The Bryston TF-2 is available in two versions.: with a gain of 20 and 30 dB. To select the correct version, we recommend following the following tips: if the output voltage of your pickup is between 0.1 and 0.2 mV, the version with a gain of 30 dB is suitable for you. From 0.4 to 0.5, use the version with a gain of 20 dB.
Specifications
Model name
TF2-20
Inputs (balanced)
N/A
Inputs (single-ended)
N/A
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
N/A
Output impedance (Ω)
4710
Gain (dB)
20
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Total Harmonic Distortion + Noise (%)
<0.001
Dimensions (mm)
65 x 145 x 210
Weight (kg)
4.71
Official link
