Phonostages — Pro-Ject Phono Box S3 B

Description, images, technical data and specifications

Pro-Ject Phono Box S3 B
Image source — © Pro-Ject

The model can work with both MM heads and movable coil pickups. For better matching with different models, the user can choose from four gain levels (40, 45, 60 and 65 dB), five input resistance values (10, 50 and 100 ohms, 1 and 47 kOhm) and four pluggable capacitances (50, 150, 300 and 400 pcF).

Specifications

  • Model name

    Phono Box S3 B

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    1

  • MC current-sensing input impedance (Ω)

    10, 50, 100, 1000, 47 000

  • MM/MC voltage input impedance (Ω)

    N/A

  • Output impedance (Ω)

    N/A

  • Gain (dB)

    40, 45, 60, 65

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Total Harmonic Distortion + Noise (%)

    <0,008 MM, < 0,01 MC

  • Dimensions (mm)

    206 x 55 x 153

  • Weight (kg)

    0.930

  • Official link

    https://www.project-audio.com/en/product/phono-box-s3-b/

Pro-Ject Tube Box S2

Pro-Ject Tube Box DS3 B

More components

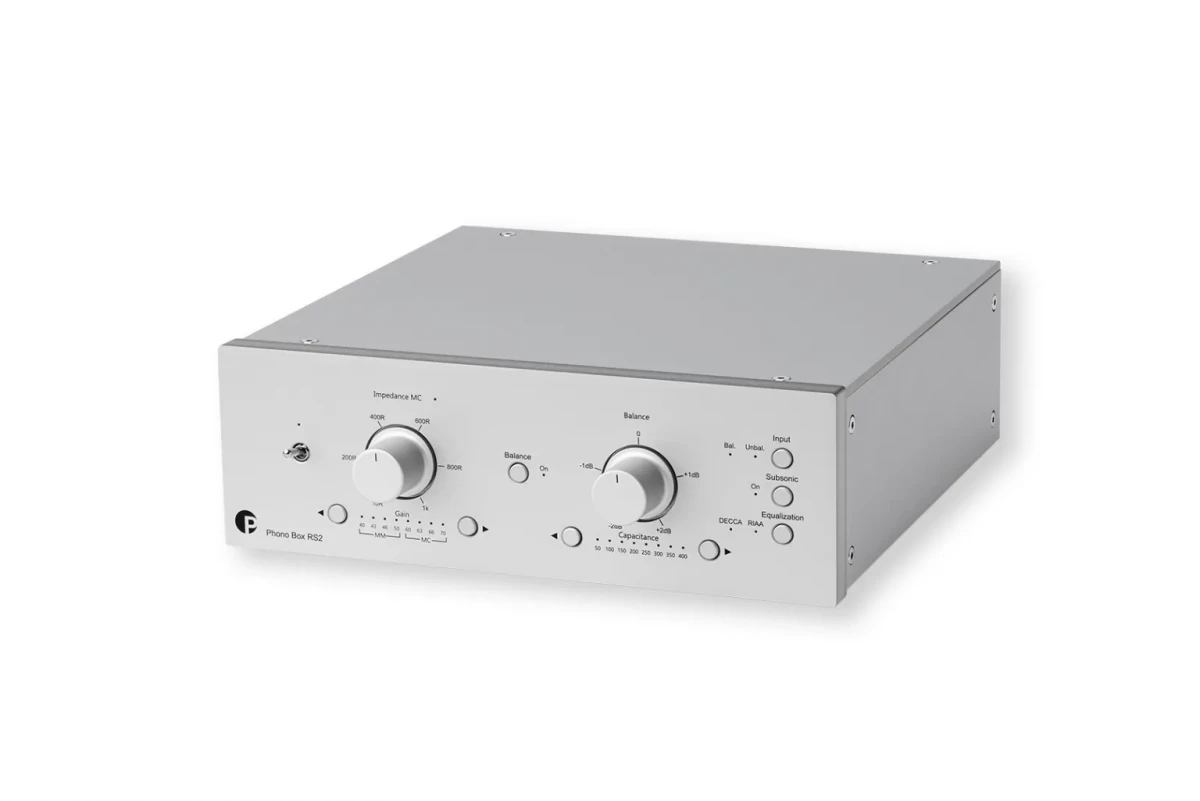

  • Phono Box RS2

    Phonostages

    Pro-Ject Phono Box RS2

    According to the manufacturer, the novelty is implemented in a fully balanced circuit design on discrete elements with passive equalization of RIAA and DECCA curves for both movable magnet (MM) and movable coil (MC) heads.

  • Phono Box DS3 B

    Phonostages

    Pro-Ject Phono Box DS3 B

    The Pro-Ject Phono Box DS3 is a phono corrector designed to work with MM and MC cartridges. The feature of this model is a fully balanced circuit design. Using a balanced connection ensures a detailed and neutral sound. The audio circuit of the Pro-Ject Phono Box DS3 B is performed entirely on discrete components to eliminate distortion.

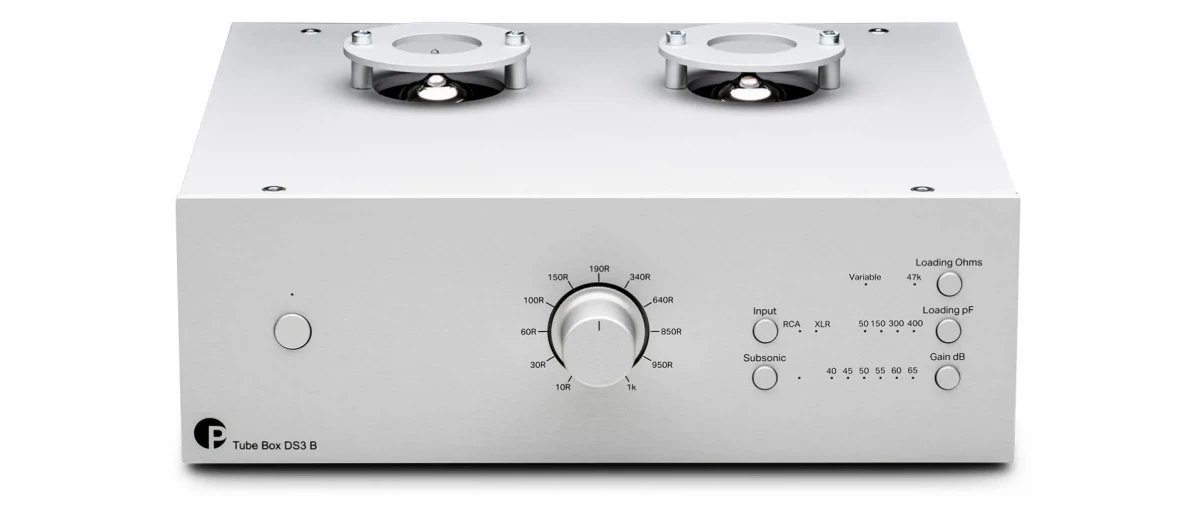

  • Tube Box DS3 B

    Phonostages

    Pro-Ject Tube Box DS3 B

    An interesting feature is the ability to smoothly adjust the input resistance level in the range from 10 to 1000 ohms when connecting the MS heads. For pickup heads with a movable magnet (MM), a fixed resistance level of 47 kOhm is set, but for them you can choose from four plug-in capacity options - 50, 150, 300 or 400 picofarads.

  • Tube Box S2

    Phonostages

    Pro-Ject Tube Box S2

    The Pro-Ject Tube Box S2 Ultra phono corrector is designed to work with MM and MC type cartridges. A special feature of the model is the use of vintage lamps, which are selected manually based on linearity and identical characteristics. They give the sound a special warmth and expressiveness. The device has all the necessary settings to work with different cartridge models. The Pro-Ject Tube Box S2 Ultra is available in a special chrome finish.

  • Phono Box S2 Ultra

    Phonostages

    Pro-Ject Phono Box S2 Ultra

    The Pro-Ject Phono Box S2 Ultra features a close to flawless RIAA correction curve, and also gives the user the ability to adjust the gain, resistance, and capacitance levels for use with almost any movable magnet and movable coil heads.
